Ecoflam BLU 500.1 PR - Operating Features; Working Fields

9
420010298801 BLU 500.1 ÷ 1200.1 PR
EN
BLU (G20-G25) 500.1 PR 700.1 PR 1000.1 PR 1200.1 PR
Termal power max. kW 500 700 970 1200
kcal/h 430.000 602.000 836.200 1034.500
Termal power min. kW 180 225 245 260
kcal/h 155.170 194.000 211.200 224.140
BLU (G30-G31) 500.1 PR 700.1 PR 1000.1 PR 1200.1 PR
Termal power max. kW 500 700 875 1100
kcal/h 430.000 602.000 752.500 946.000
Termal power min. kW 230 270 280 290
kcal/h 197.800 232.200 240.800 249.400
Voltage 50 HzV 230 / 400 230 / 400 230 / 400 230 / 400
Motor kW 0,55 0,74 1,1 2,2
Rpm N° 2800 2800 2800 2800

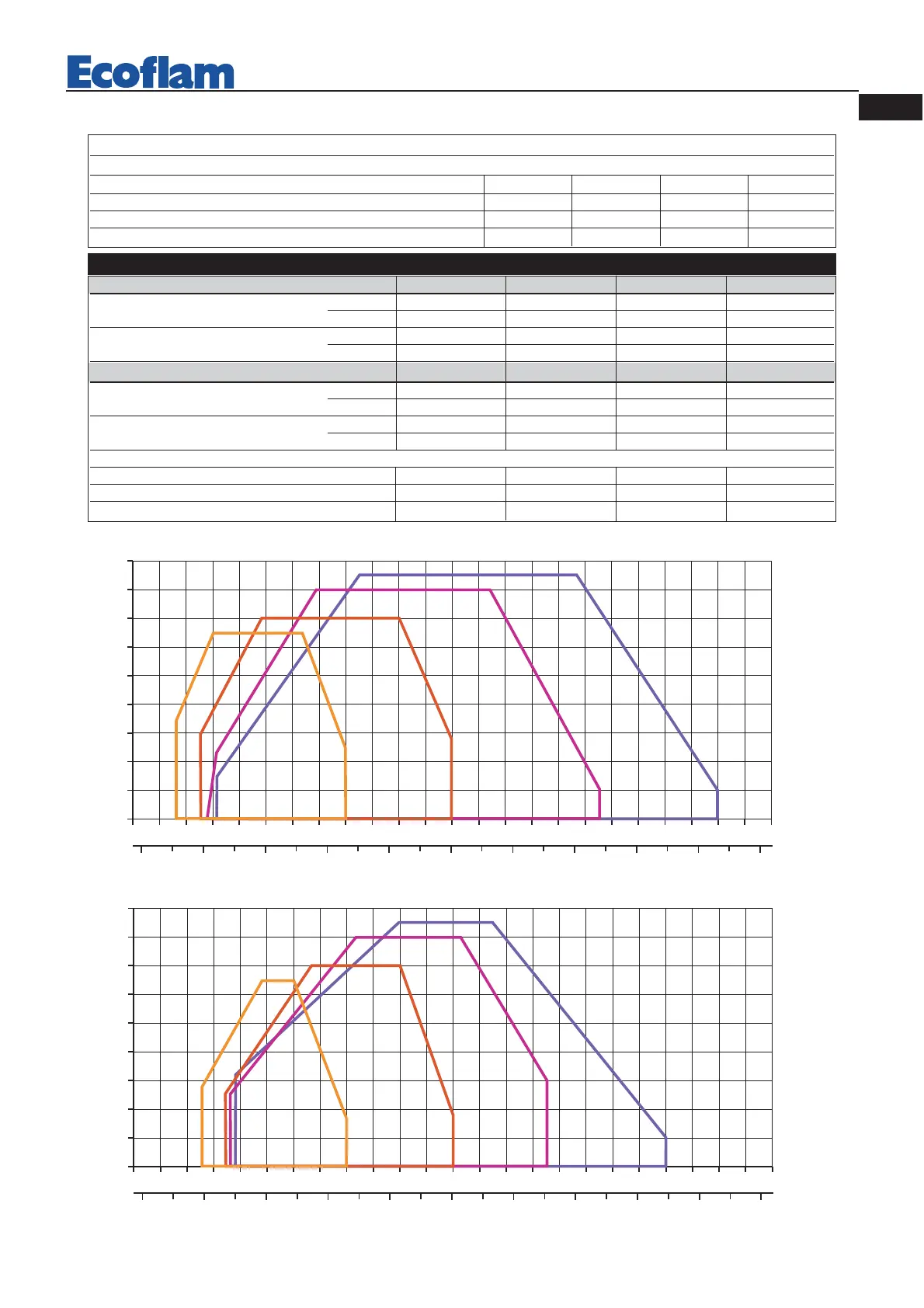

TECHNICAL DATA
OPERATING FEATURES
Model : BLU 500.1-700.1-1000.1-1200.1 PR Gas family - II 2H 3P
G20 G25 G31 G30
Max. gas pressure mbar 25 - 45 35
Min. gas pressure mbar 17 - 25 20
Fuel L.C.V. kcal/Nm
3
8.570 - 22.260 29.320
WORKING FIELDS
Output
Backpressure in comb. chamber
Output
Backpressure in comb. chamber
150100 200
200100 300 400 500 600 700 800 900 1000 1100
250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
0
1
2
3
4
5
6
7
8
9
mbar
kW
kcal/h
x 1000
Blu 500.1(G20-25) Blu 700.1(G20-25) Blu 1000.1(G20-25) Blu 1200.1(G20-25)
150100 200
200100 300 400 500 600 700 800 900 1000 1100
250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
0
1
2
3
4
5
6
7
8
9
mbar
kW
kcal/h
x 1000
Blu 700.1 (G30-31)
Blu 1000.1 (G30-31)
Blu 1200.1 (G30-31)
Blu 500.1 (G30-31)
