EcoFlow PowerStream Microinverter - Page 17

|14

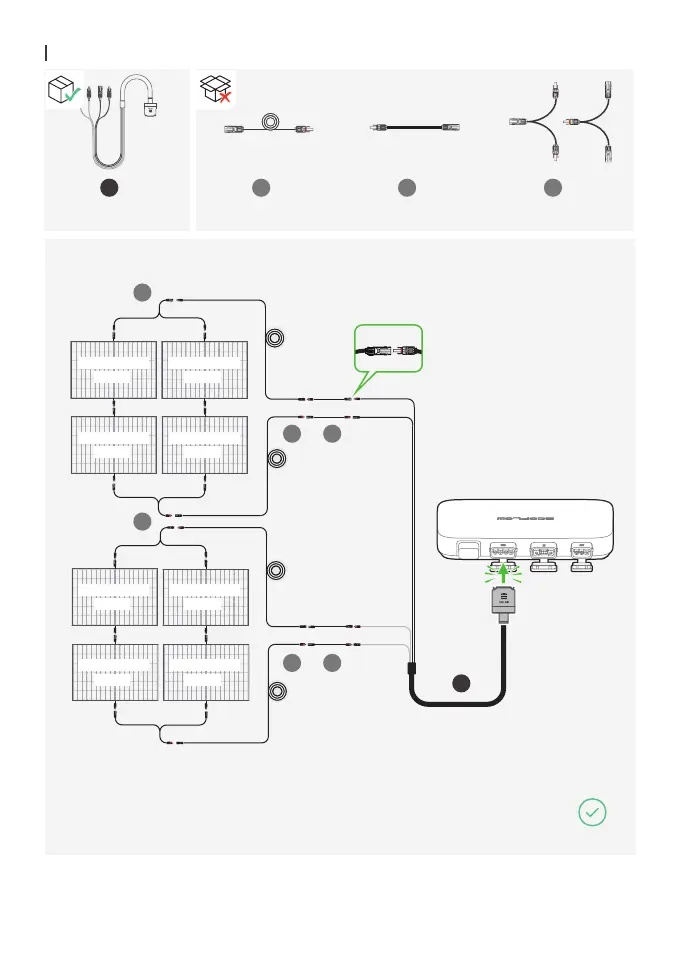

Solar panels in both series and parallel
Vm (solar panel 1) + Vm (solar panel 3) < 55V
Im (solar panel 1) + Im (solar panel 2) < 13A
100W
Solar panel 1
100W
Solar panel 5
100W
Solar panel 3
100W
Solar panel 7
100W
Solar panel 4
100W
Solar panel 2
100W
Solar panel 6
100W
Solar panel 4
100W
Solar panel 8
×1
C
×4
K
×4
L
×2
M
BKW-Solar cable Extension cable Super at cable
Solar parallel
connection cable
M
M
C
K
K
L
L
