Ecolab Ecoplus-PCB User Manual

417101726_Ecoplus_PCB.docx
- 24 -
Rev. 02-02.2012

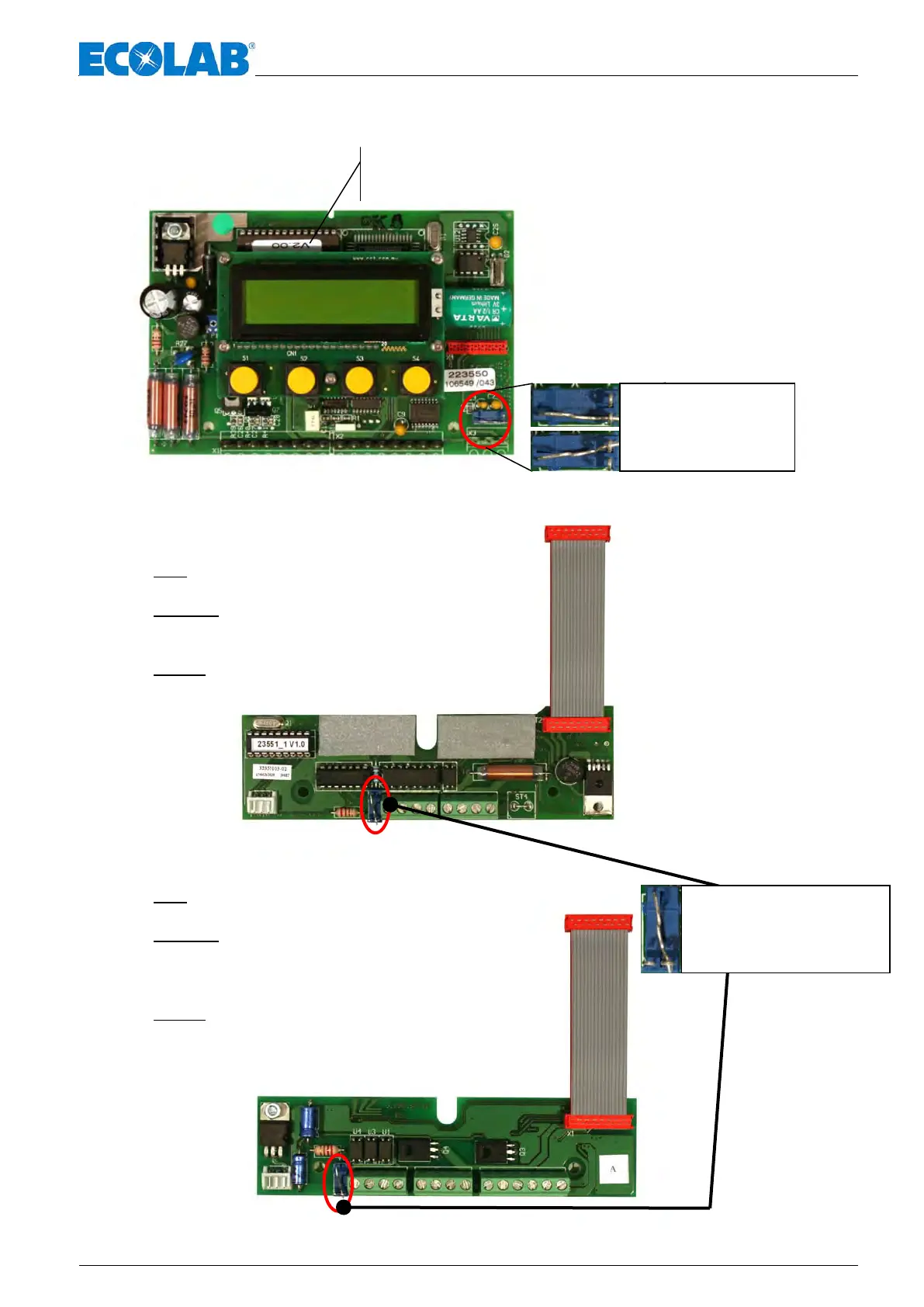

3 PCB Overview
3.1 Motherboard
3.2 Peristaltic Pump Add-On Board
P/N: 223551
Outputs: - 24 V DC peristaltic pump
- RS232
Inputs: - Enable inputs
- Empty signal
3.3 'N’ Add-On Board
P/N: 223552
Outputs: - 24 V AC rinsing pump
- 24 V AC additive product
- RS232
Inputs: - Enable inputs
- Rinsing agent empty signal
- Additive product empty signal
- Power supply for additive product
‘P’ / Plug 18, 19
‘L’ / Plug 18, 19
‘V’ / Plug 17, 18
EEPROM
(P/N 223568)
Must be hooked up to
position 2 (diagonal).
1 2
