Ecolab Ecoplus-PCB User Manual

417101726_Ecoplus_PCB.docx
- 25 -
Rev. 02-02.2012

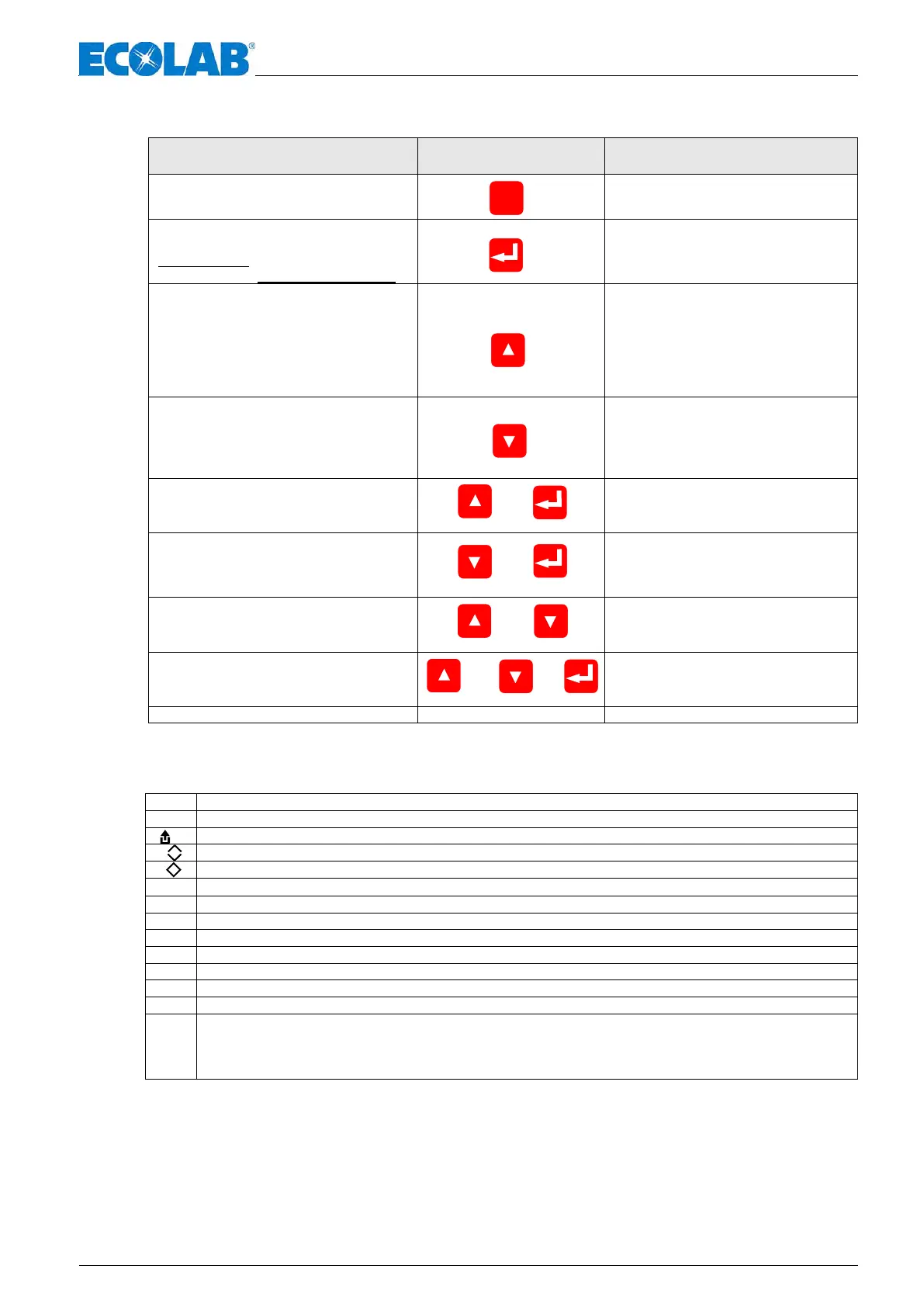

3.4 Key functions
Operating level Keys
Service, parameter, and
configuration level
For activating the ‘INPUT ACCESS
CODE’ menu.
For calling a menu.
For returning to the start level.
For switching off the detergent output for
30 seconds
(safety function
for special use in
conjunction with solid flushing-out units).
For calling a menu.
For scrolling within a menu.
For moving the cursor.
For increasing the value of the access
code.
For activating the booster function (hold
down arrow key for at least 5 seconds).
For displaying the current clock counter
status and, if necessary, the rinsing
operating time.
For increasing a value in a menu.
For reducing the value of the access
code.
For deactivating the booster function
(hold down arrow key for at least 5
seconds).
For reducing a value in a menu.
For adjusting the time (forwards) in hourly
steps (only if automatic summer/winter
adjustment is not switched on).
+
(simultaneously for 5 seconds)
For adjusting the time (backwards) in
hourly steps (only if automatic
summer/winter adjustment is not
switched on).
+
(simultaneously for 5 seconds)
For activating the quick vent function for
the rinsing pump.
+
(simultaneously for 5 seconds)
For switching off the device. You can
switch the device back on by pressing
any key.
+ +
(simultaneously for 5 seconds)
For acknowledging an alarm.
Any key
3.5 Explanation of Display Symbols

Detergent metering is active.

Rinsing agent metering is active.
B
The booster function is active.
The pre-proportioning delay is active.
Pre-proportioning is active.
OK
The detergent concentration is in the permitted range (100% ± 20% of the set value).
P1
The current time lies within the period of the day that was programmed as ‘PER. 1’.
P2
The current time lies within the period of the day that was programmed as ‘PER. 2’.
P3
The current time lies within the period of the day that was programmed as ‘PER. 3’.
ZC
Zero-point calibration of freshwater conductivity when filling the dishwasher.
_ _
Enable signal (if METERING EXTERNAL? YES) from dishwasher not present.
4.8
Conductivity in mS/cm.
48%
Percentage display of conductivity in relation to set target value.
.
.
.
Display of input states for mains cut-off module:
Pre-proportioning input active.
Post-proportioning input active.
Rinsing agent input active.
