Ecolab SCLS IV User Manual

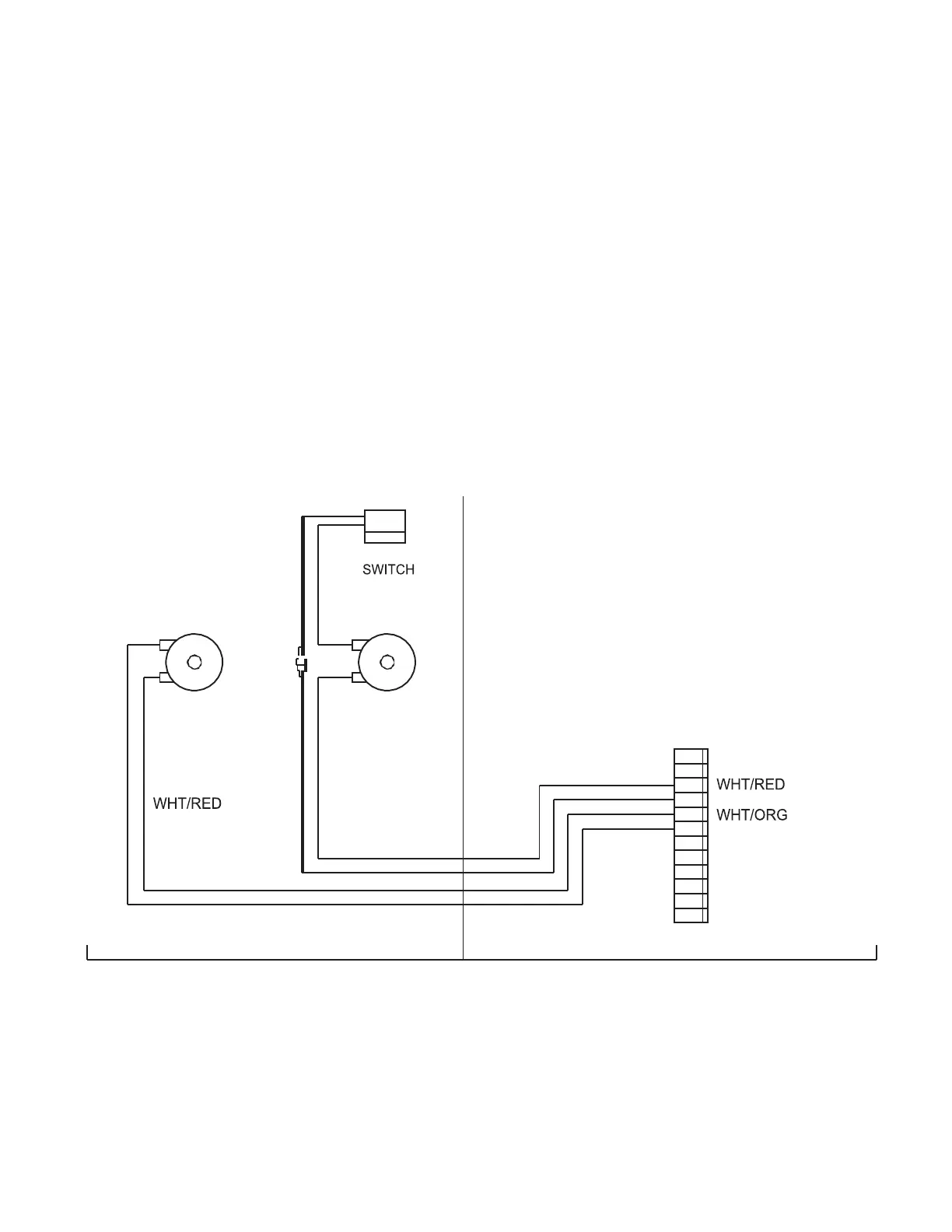

3.2 Wiring (wiring diagram below Figure 3-2)
1. Unwind the white/orange–orange and white/red–red wire pairs in the SCLS/AQUANOMIC EU cabinet and
feed through the top hole in the left side of the cabinet.
2. Crimp a female quick disconnect to each of the four wires.
3. Connect the orange wire to the male quick disconnect of the reed switch assembly (white wires).
4. Connect the white/orange wire to the open 1/4” tab of the 4th product valve.
5. Connect the red and the white/red wires to the open tabs on the flush valve.
SCLS IV/AQUANOMIC EU IV cabinet SCLS/AQUANOMIC EU cabinet
Figure 3-2
3-2
SCLS IV/AQUANOMIC EU IV Dispensing Module Installation & Operation Manual
SAFETY
WHT WHT
FLUSH
VA LV E
4TH PRODUCT
VA LV E
12–PIN CONNECTOR TO J7, ON CPU BOARD
ORG WHT/ORG
RED
RED
ORG

Ecolab SCLS IV Specifications

General

Brand	Ecolab
Model	SCLS IV
Category	Dispenser
Language	English
