3.3 Plumbing (Continued)
5. Remove the plug from the sump drain hose (located above the pump inlet) in the SCLS/
AQUANOMIC EU cabinet.
6. Feed the 4th product drain hose through the bottom hole on the left side of the SCLS/AQUANOMIC EU
cabinet.

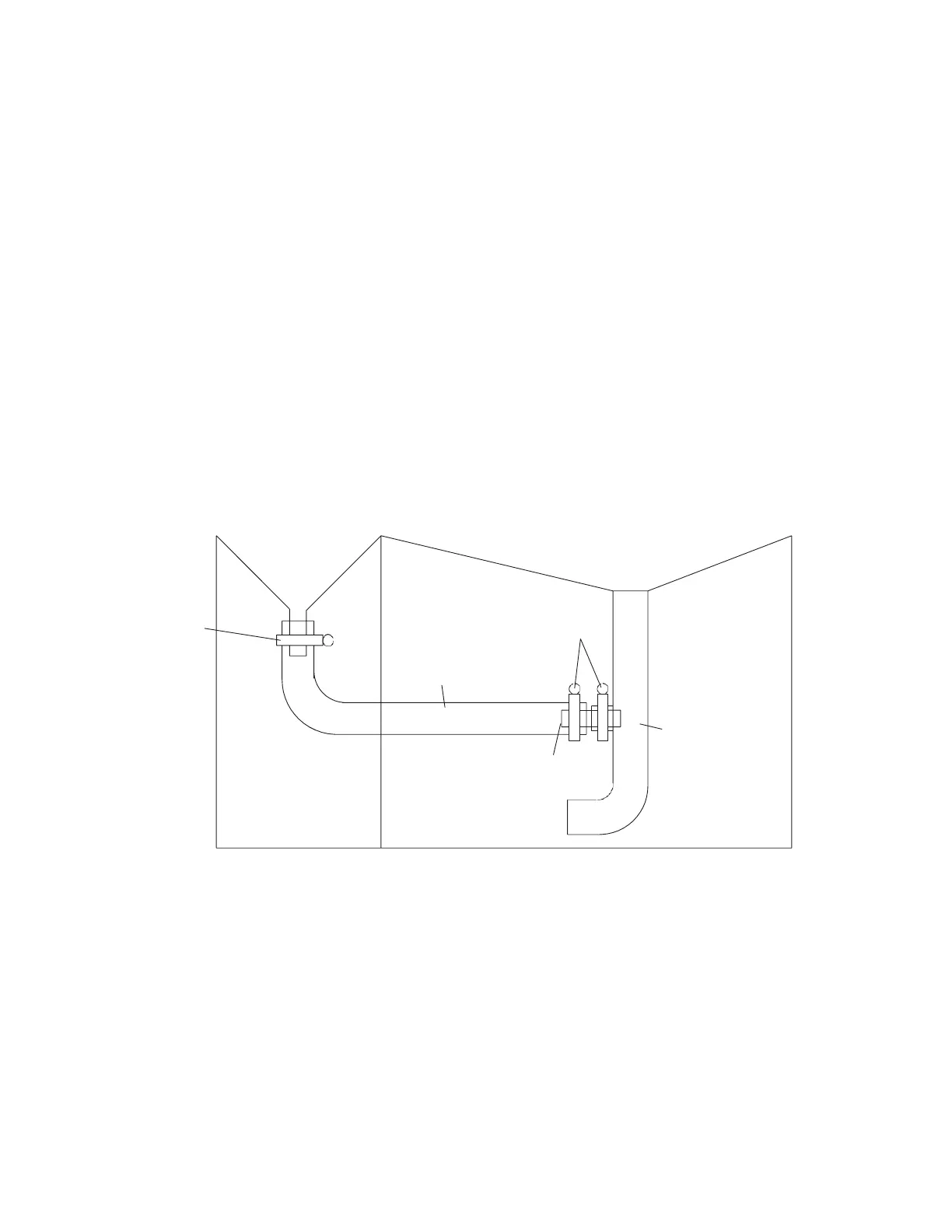

7. Attach the 4th product drain hose to the SCLS/AQUANOMIC EU drain hose using the connector tube and
two hose clamps as shown in Figure 3-4 below. Be sure drain tube is not kinked. Shorten length if
necessary.
HOSE CLAMP
SCLS IV (9259-
1097)/ AQUANOMIC
EU IV CABINET
(9259–1000)
SCLS CABINET/
AQUANOMIC EU
Figure 3-4
4TH PRODUCT
SUMP
SUMP OUTLET
HOSE
CLAMPS
4TH PRODUCT
DRAIN TUBE
DRAIN TUBE
TUBE INSERT
PUMP INLET
