Ecosoft FPA Series User Manual

INSTRUCTION MANUAL ECOSOFT
®
MEDIA SYSTEMS
8
2
4
5
6
89
10
11
12
15
13
14
16
17
18
3
19
201
7

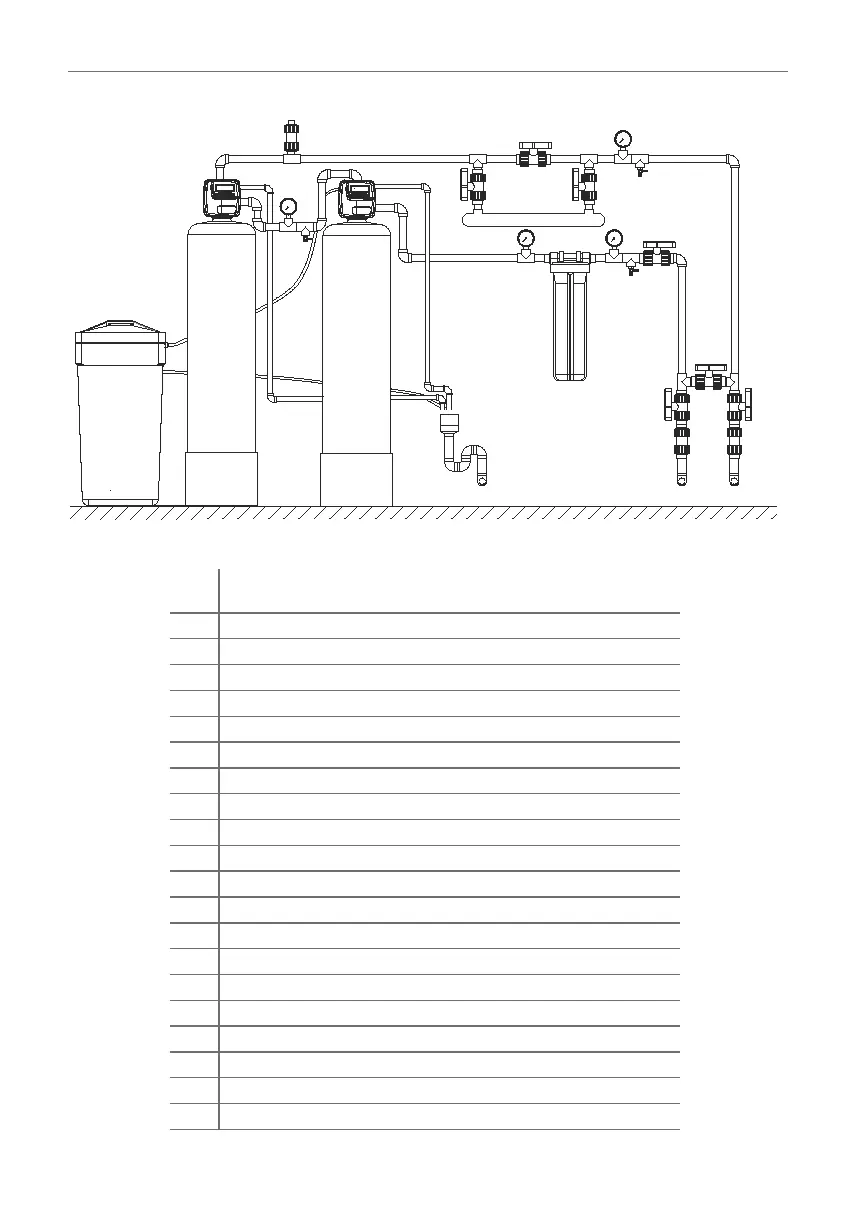

Recommended piping and instrumentation setup for Ecosoft media system
Ref.
no.
Item
1. Main water pipe
2. Main water shuto󰀨 valve
3. Point of entry valve
4. Sampling tap
5. Pressure gauge
6. Sediment lter housing
7. Pressure gauge
8. Ecosoft FK/FU water treatment system
9. Ecosoft FPA/FPC/FP water treatment system
10. FK/FU brine tank
11. Vacuum relief valve
12. Ultraviolet disinfection entry valve
13. Ultraviolet disinfection bypass valve
14. Ultraviolet disinfection exit valve
15. Ultraviolet disinfection system
16. Pressure gauge
17. Sampling tap
18. Main bypass valve
19. Water supply shuto󰀨 valve
20. Water supply pipe

Ecosoft FPA Series Specifications

General

Brand	Ecosoft
Model	FPA Series
Category	Water Filtration Systems
Language	English
