CONTROL VALVE PROGRAMMING AND COVER DRAWING MANUAL
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2021

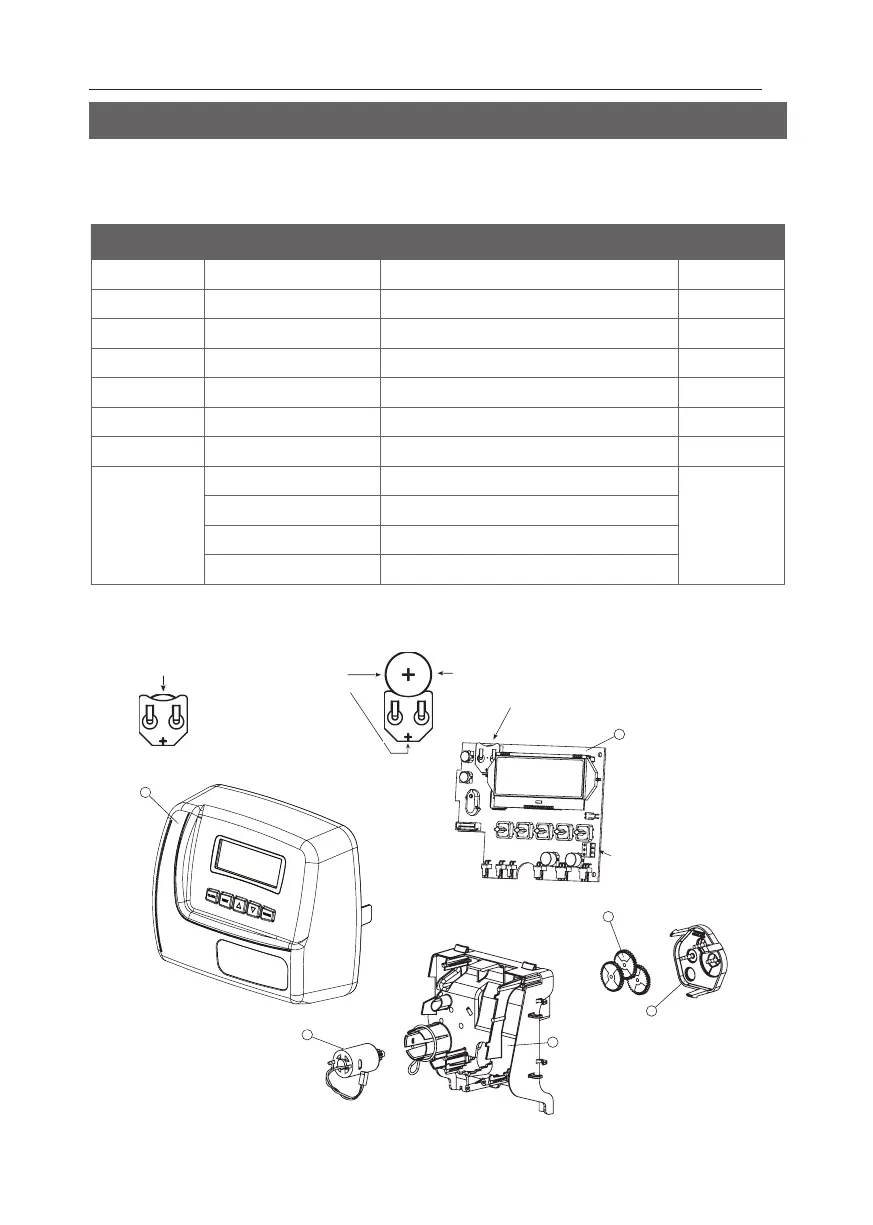

ANNEX. DRAWINGS OF CONTROL VALVE PARTS
Drawing No. Order No.  
1 V3984-01 WS1CE Front cover assembly 1
2 V3107-01 WS1 Motor 1
3 V3106-01 WS1 Drive Bracket & Spring Clip 1
4 V3985CE-01BOARD  1
5 V3110 WS1 Drive Gear 12x36 3
6 V3109 WS1 Drive Gear Cover 1
V3946  1
Not Shown
V3186 
1
V3186EU 
V3186UK 
V3186-01 
Front Cover and Drive Assembly
Drawing number parts 2 through 6 may be purchased as a complete assembly, part V3002CI
2
3
4
5
6
1
When replacing the baery, align
posives and push down to fully seat.
Baery replacement is
3 volt lithium coin cell
type 2032.
Correct
Baery
Orientaon
