CONTROL VALVE PROGRAMMING AND COVER DRAWING MANUAL
This manual is the intellectual property of Ecoso. Copying and reprinng is prohibited. © 2021
Twin Transfer

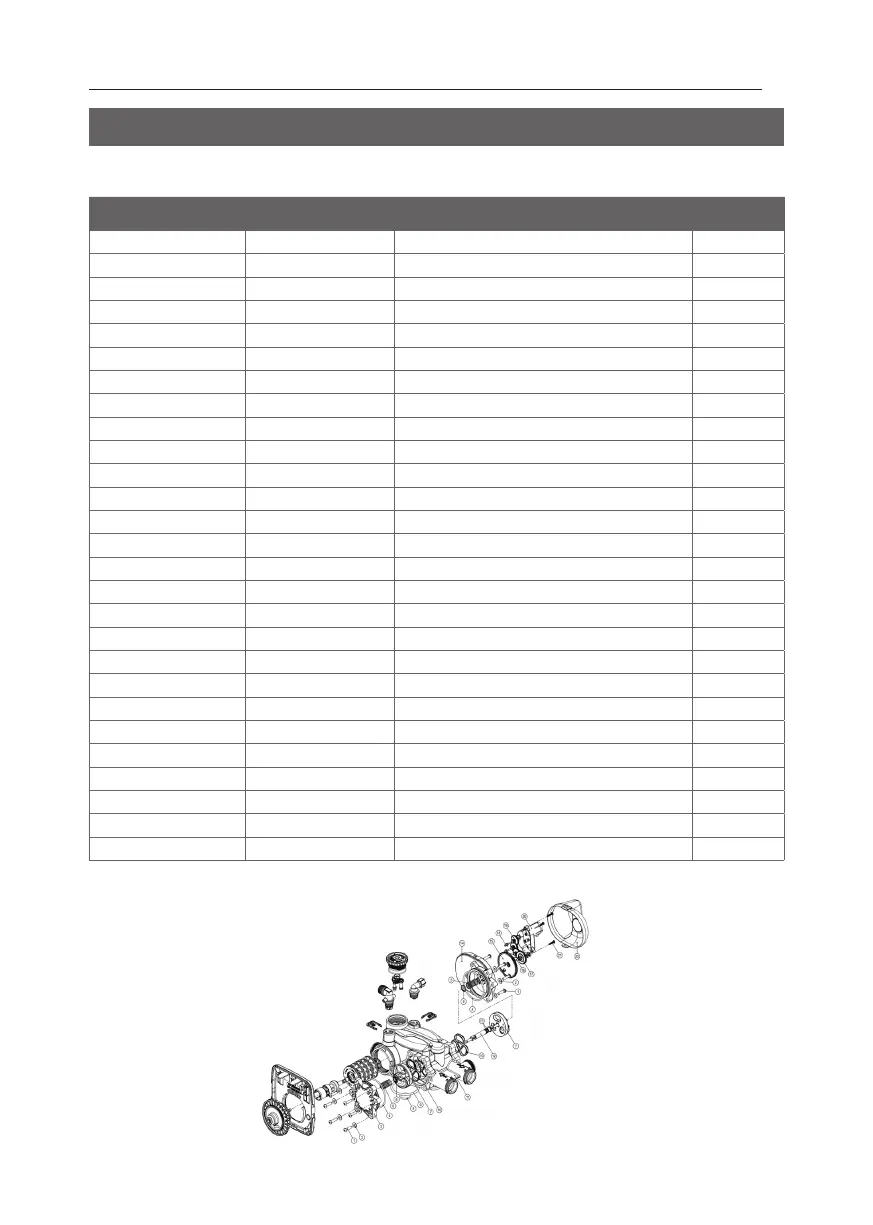

ANNEX. DRAWINGS OF CONTROL VALVE PARTS
Drawing No. Order No.
1 V3470 12
2 V3724 12
3 V4005-01 1
4 V4029 O-RING 2
5 V4015 2
6 V4014 2
7 V4036 2
8 V3105 1
9 V3180 O-RING 337 1
10 V4016 6
11 V3031 1
12 V4023 1
13 V3287 O-RING 110 2
14 V4006-01 1
15 V4011-01 1
16 V4012 1
17 V4013 1
18 V3264 3
19 V3110 3
20 V3262-01 1
21 V3592 3
22 V4049 1
V4043 1
V3151 1
V4055* 1
V4017-01 1
D1400 1
To Next Page
