Ecotec Monica Plus - Exhaust and Fresh Air Intake Locations

28

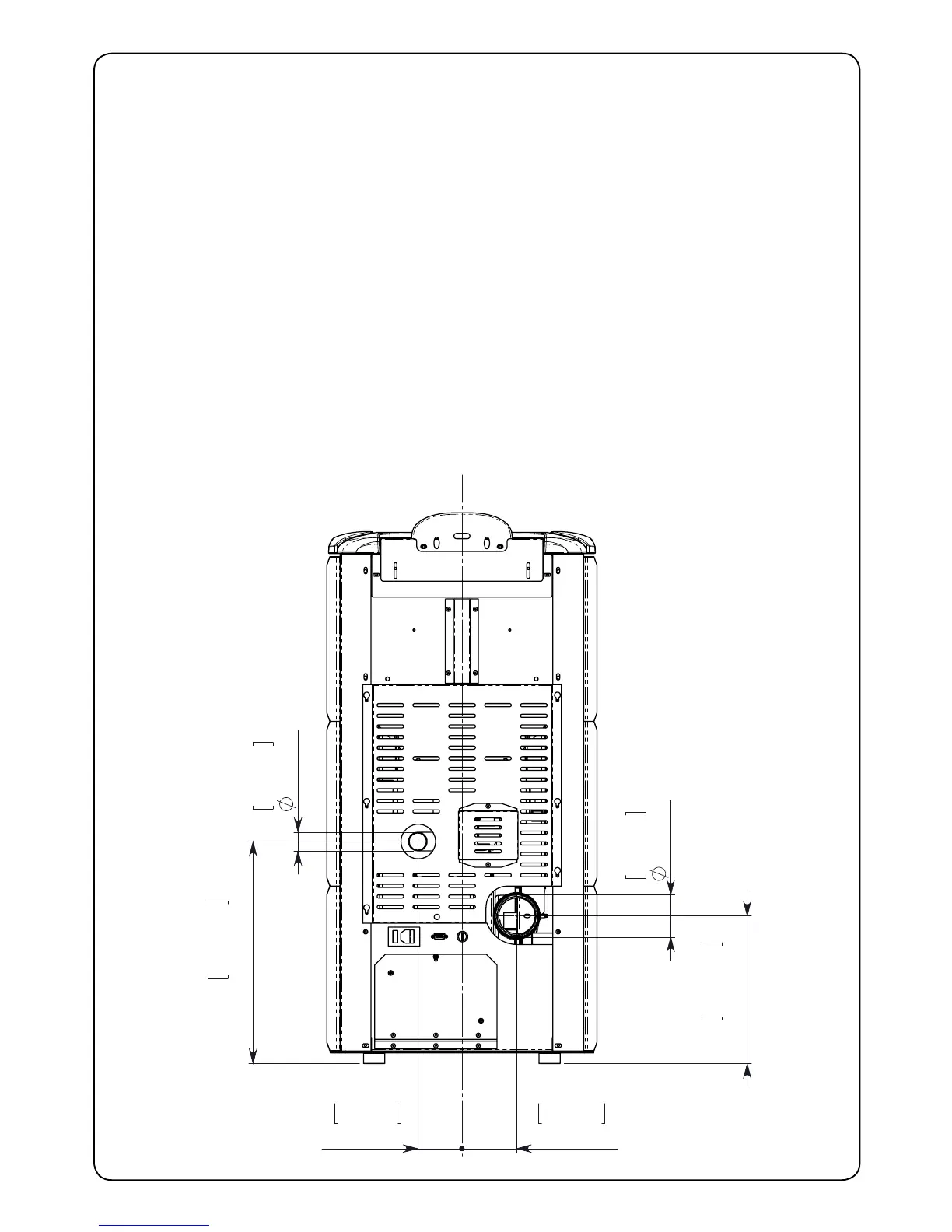

1.3 Exhaust and Fresh Air Intake Locations
Exhaust Insert
Hearth to centre of ue 326mm
Side of unit to centre of ue 115mm
Centre of unit to centre of ue 137mm
Fresh Air Intake
Hearth to centre of intake 356mm
Side of unit to centre of intake 169mm
Centre of unit to center of intake 83mm
INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENTING MANUFACTURER
80mm
3,13in
83mm
3,27in
103mm
4,06in
278mm
10,94in
418mm
16,45in
35mm
1,38in
