2. Installation

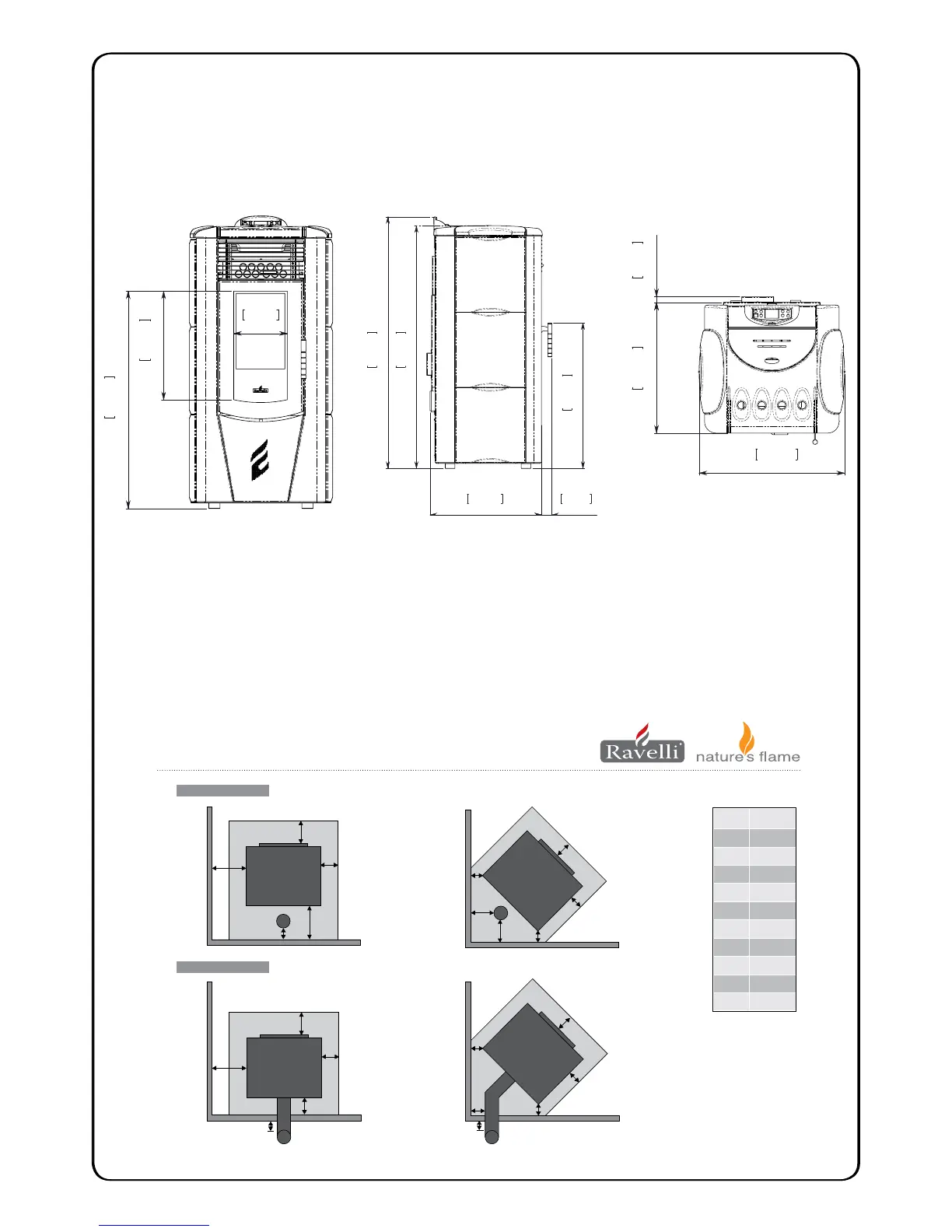

2.1 Dimensions – Monica Plus Freestanding
771mm
30,33in
385mm
15,16in
190mm
7,48in
599mm
23,59in
43mm
1,69in
459mm
18,07in
1037mm
40,81in
1000mm
39,36in
456,5mm
17,97in
20mm
0,79in
508mm
20,01in
Refer to Safety Test 09/1910 for all clearances to combustible.
2.2 Clearances & Specications
Minimum clearances shown are in millimetres. All Ecoteck res are tested to AS/NZS2918:2001.
Specications were correct at time of printing but may alter and those detailed below should be used as
a guide only. Refer to the Installation and Operation Manual supplied with every Ecoteck Pellet Fire or
if in doubt, consult your Nature’s Flame Retailer.
B
J
H
A
E
External Flue
J
J
F
B
I
F
E
Monica Plus Pellet Fire
Clearance to Combustibles
B
C
A
E
D
G
F
B
F
G
E
Internal Flue
Location
Dimension
(mm)
A 50
B 150
C* 50
D 230
E 100
F 120
G* 50
H 50
I* 50
J* 25
Freestanding
Clearances
* from shielded  ue
Note: AS/NZS 2918
requires a minimum
of 100mm clearance
for any side requiring
access.
Note: These are
minimum clearances to
combustibles. Actual
installation distances
may be greater.
Note: The above clearance to combustibles on the  ue are only applicable within the  re envelope. Clearance outside this e.g.at a ceiling / wall thimble reverts to 25mm as per ARS  ue
test 05/1185.
