The cabinet includes pre-punched holes in the feet for floor mounting and holes in the back panel for wall
support using standard anchors.
NOTES: 1. The AG-6500/11000 cabinet does not include holes in the back panel for wall support.
2. The AG-18500/22500 cabinet includes holes in the back panel for wall support.
3. When floor mounting the generator cabinet, ensure the cabinet is firmly anchored to a
flat/level surface.
4. When wall supporting the generator cabinet, ensure the cabinet is firmly anchored to a
wall, the wall is structurally sound, and cable of supporting the generator cabinet.
Step 2: Mount the air compressor
The air compressor is designed to be mounted directly to the floor at the appropriate location. Several
factors should be considered in choosing the proper mounting location for air compressor:
1. Access to required power supply (dedicated circuit)
2. Access to nitrogen generator
3. Access to drain for the condensate discharge line
4. Clearance around the air compressor for servicing the equipment
5. Cleanliness of the environment and air intake
The air compressor includes pre-punched holes in the feet for floor mounting using standard anchors.
NOTES: 1. Ensure the air compressor is firmly anchored to a flat/level surface.
2. Install vibration pads between mounting feet of the air compressor and the floor.
3. Install braided hose directly-to the isolation valve on the air supply outlet of the air
receiver tank.

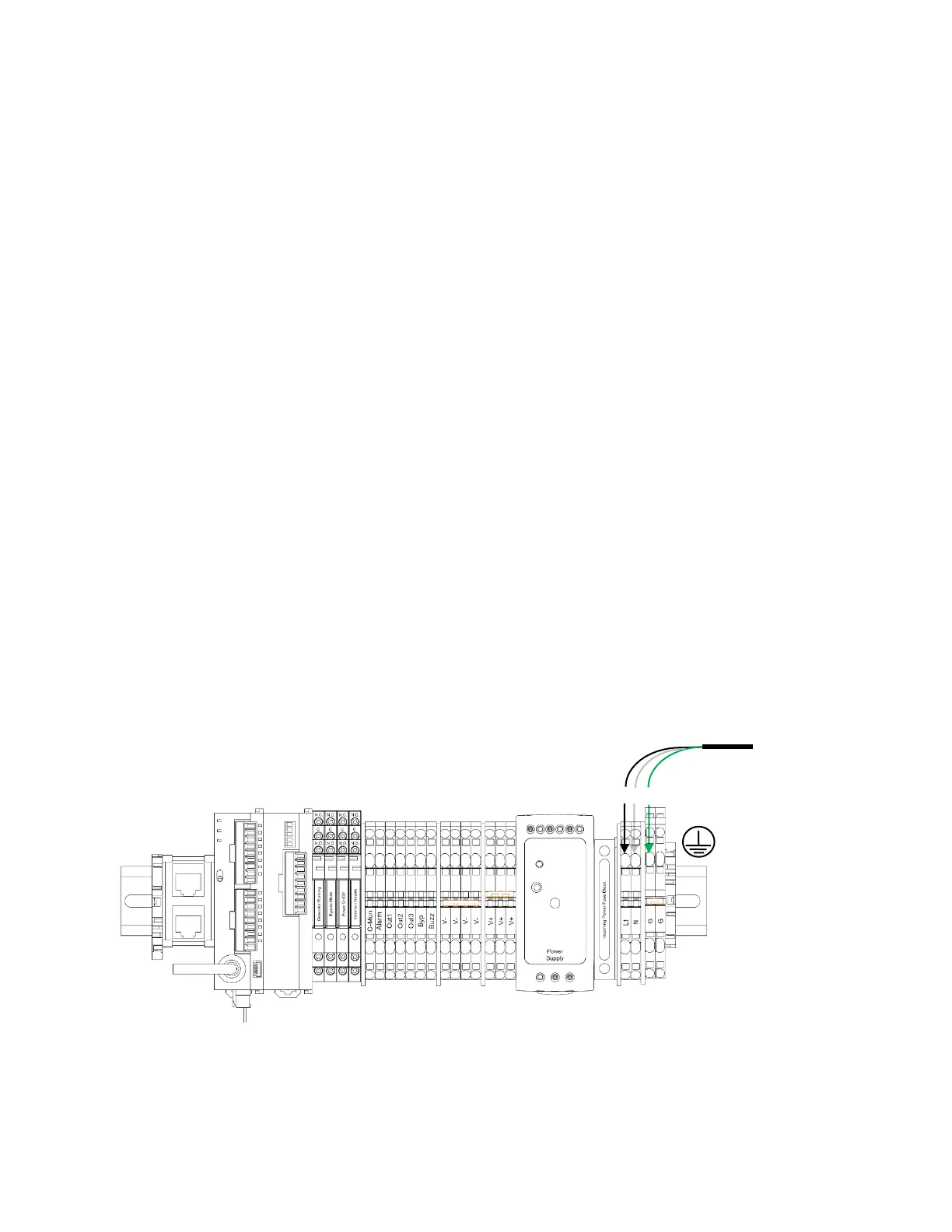

Step 3: Connect the Nitrogen Generator Power Supply
The Nitrogen Generator requires a dedicated power supply to prevent interaction with other equipment.
The incoming power supply line is connected to the terminal blocks inside the nitrogen generator cabinet.
The terminal connections are labeled L1, N, and G.
Required nitrogen generator power supply: 120-240 VAC, 50-60 Hz, 1 phase dedicated circuit.
NOTE: Ensure an appropriately rated disconnect switch and circuit breaker (minimum 15 Amps and a
Short Circuit Current Rating (SCCR) of 5 kVA) are installed in a suitable and accessible location in
accordance with the applicable national and/or local codes (i.e., NFPA 70).
