34
10. If the sprinkler system actuates or another event introduces oxygen to the sprinkler system press
the Vent button to restart the purging cycle.

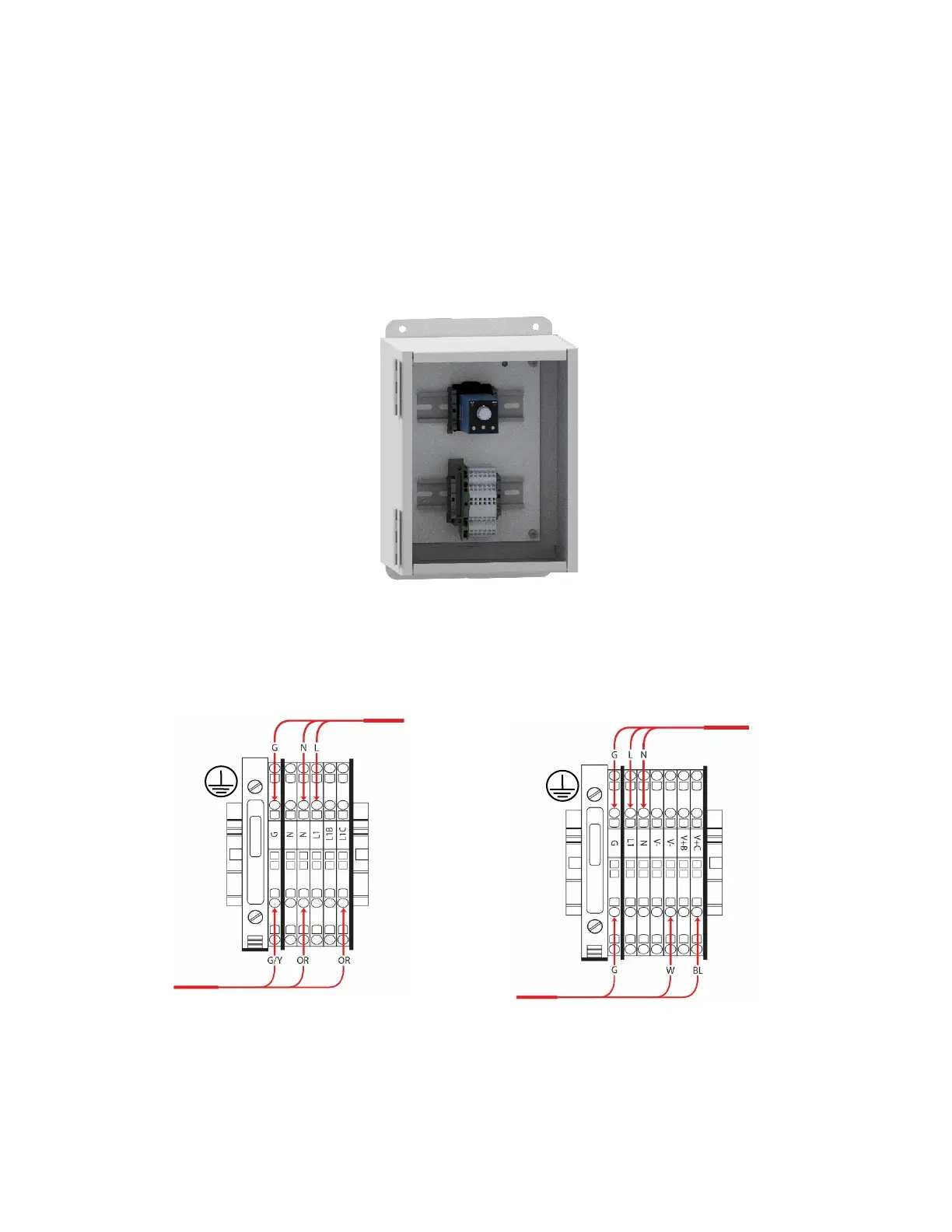

ECS SMART Vent Control Box
PSV-D Wiring Diagram PSV-DE Wiring Diagram
120 VAC, 60 Hz,1 Phase
200-240 VAC, 50 Hz,
1 Phase
Solenoid
(120 VAC)
Solenoid
(24 VDC)
