Installing the Motherboard
Checking Jumper Settings

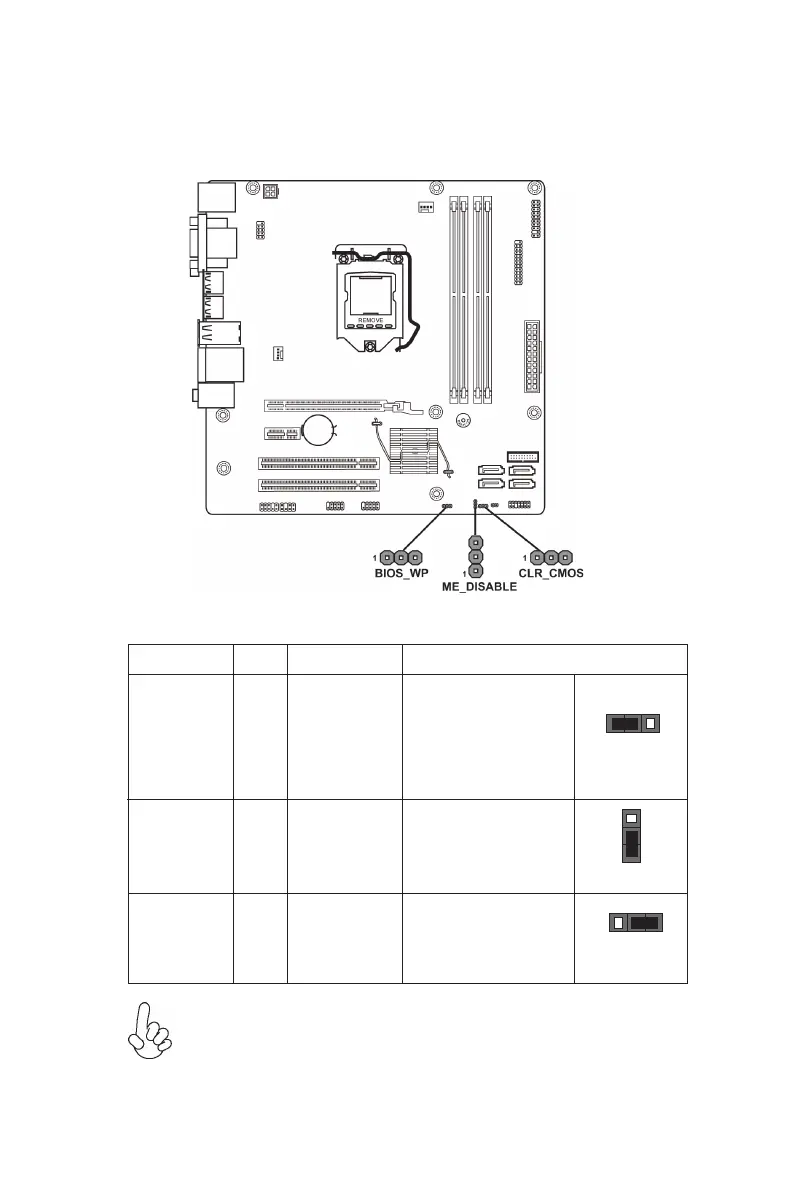

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
To avoid the system instability after clearing CMOS, we recommend users
to enter the main BIOS setting page to “Load Default Settings” and then
“Save and Exit Setup”.
Jumper
Type
Description Setting (default)
CLR_CMOS
3-pin
Clear CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn off the system.
CLR_CMOS
1
1
ME_DISABLE
3-pin
ME Disable
1-2: NORMAL
2-3: ME disable
ME_DISABLE
BIOS_WP
BIOS_WP
1-2: BIOS_WP
2-3: NORMAL
3-pin
BIOS Flash
Protect
1
