Installing the Motherboard
CPU Installation Procedure

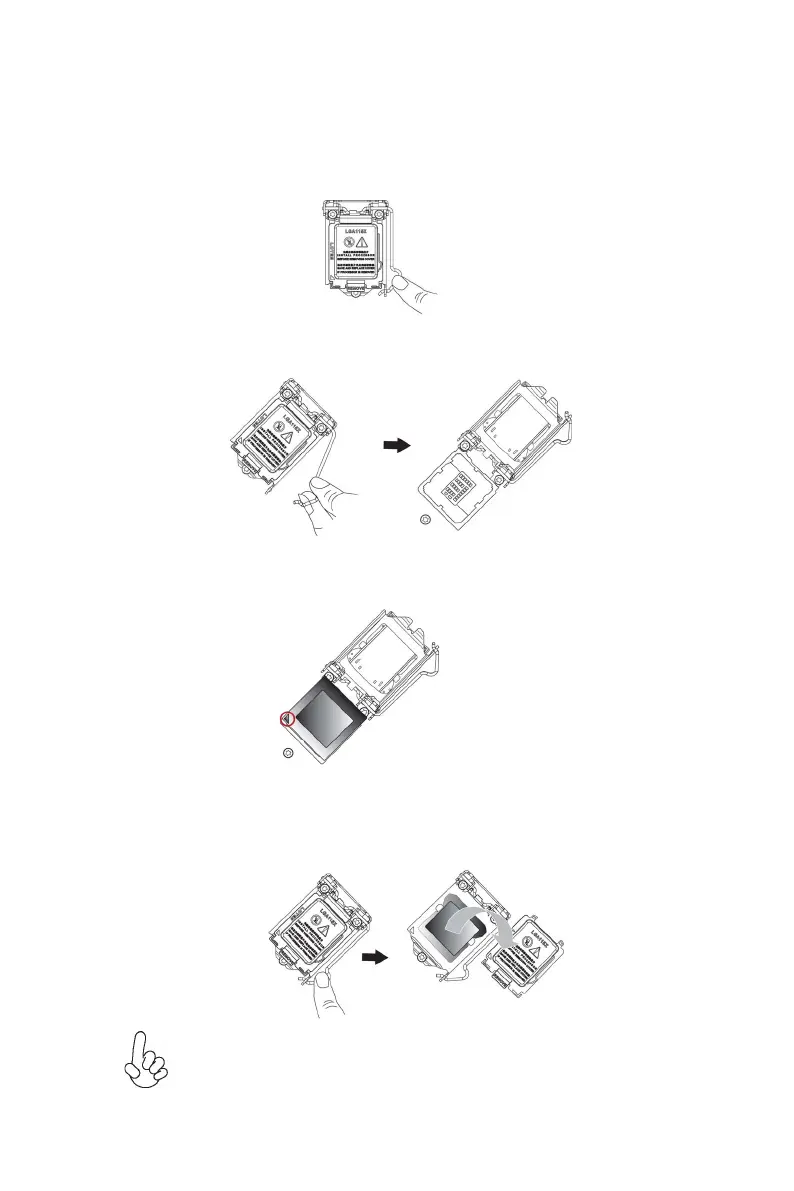

The following illustration shows CPU installation components.
A. Press the hook of lever down with your thumb and pull it to the right side
to release it from retention tab.
B. Lift the tail of the load lever and rotate the load plate to fully open
position.
C. Grasp the edge of the package substrate. Make sure pin 1 indicator is on
your bottom-left side. Aim at the socket and place the package carefully into
the socket by purely vertical motion.
D. Rotate the load plate onto the package IHS (Intergraded Heat Spreader).
Engage the load lever while pressing down lightly onto the load plate. Secure
the load lever with the hook under retention tab. Then the cover will flick
automatically.
Please save and replace the cover onto the CPU socket if processor is
removed.
