22
Installing the Motherboard

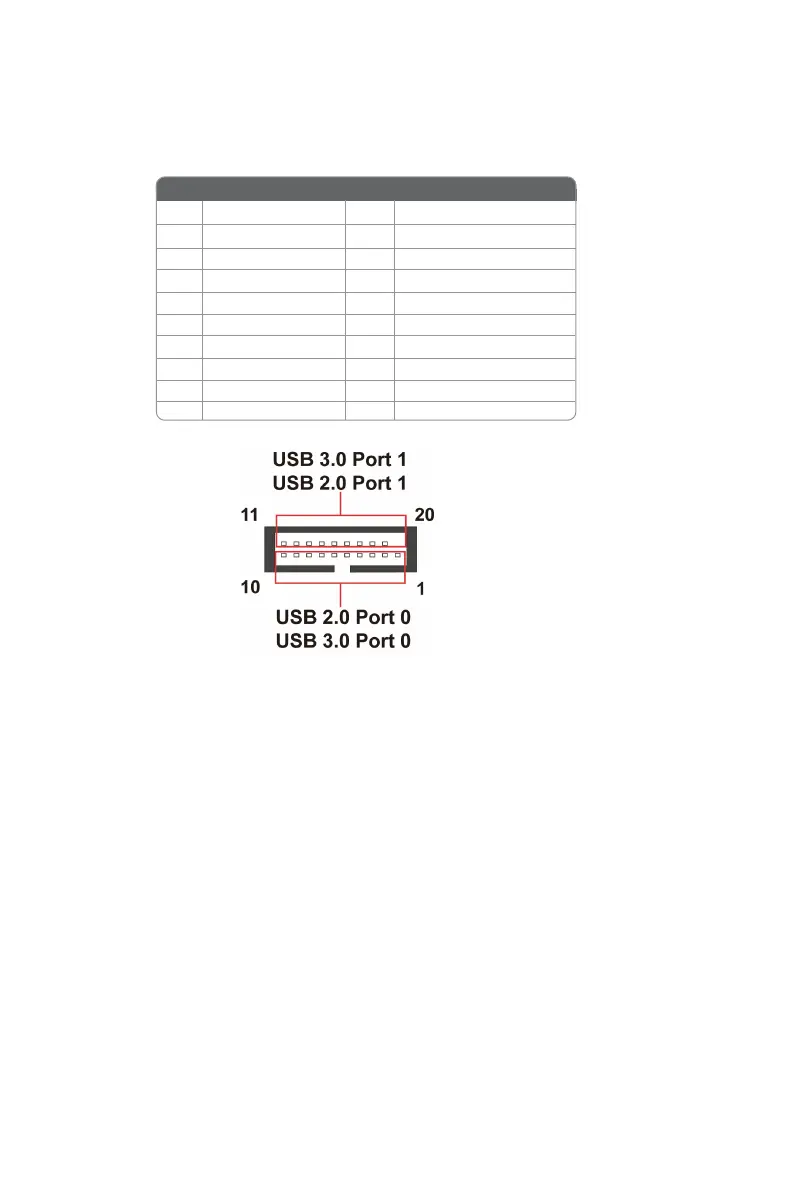

USB3F: Front Panel USB 3.0 header
This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0
ports, which delivers 5Gb/s transfer rate.
1
VBUS0
2
SSRX0-
3
SSRX0+
4
GND
5
SSTX0-
6
SSTX0+
7
GND
8
D0-
Pi
n
Signal Name
Pi
n
Signal Name
9
D0+
10
NC
11
D1+
12
D1-
13
GND
14
SSTX1+
15
SSTX1-
16
GND
17
SSRX1+
18
SSRX1-
19
VBUS1
20
KEY
25
27
