Installing the Motherboard
ATX_POWER: ATX 24-pin Power Connector
Users please note that the fan connector supports the CPU cooling fan of
1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
Pin Signal Name Function
2 +12V Power +12V
SYS_FAN: System Cooling FAN Power Connectors
1 GND System Ground
3 Sense Sensor
Pin Signal Name Function
2 +12V Power +12V
Pin Signal Name Pin Signal Name
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 COM 15 COM
4 +5V 16 PS_ON
5 COM 17 COM
6 +5V 18 COM
7 COM 19 COM
8 PWR OK 20 -5V
9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 COM

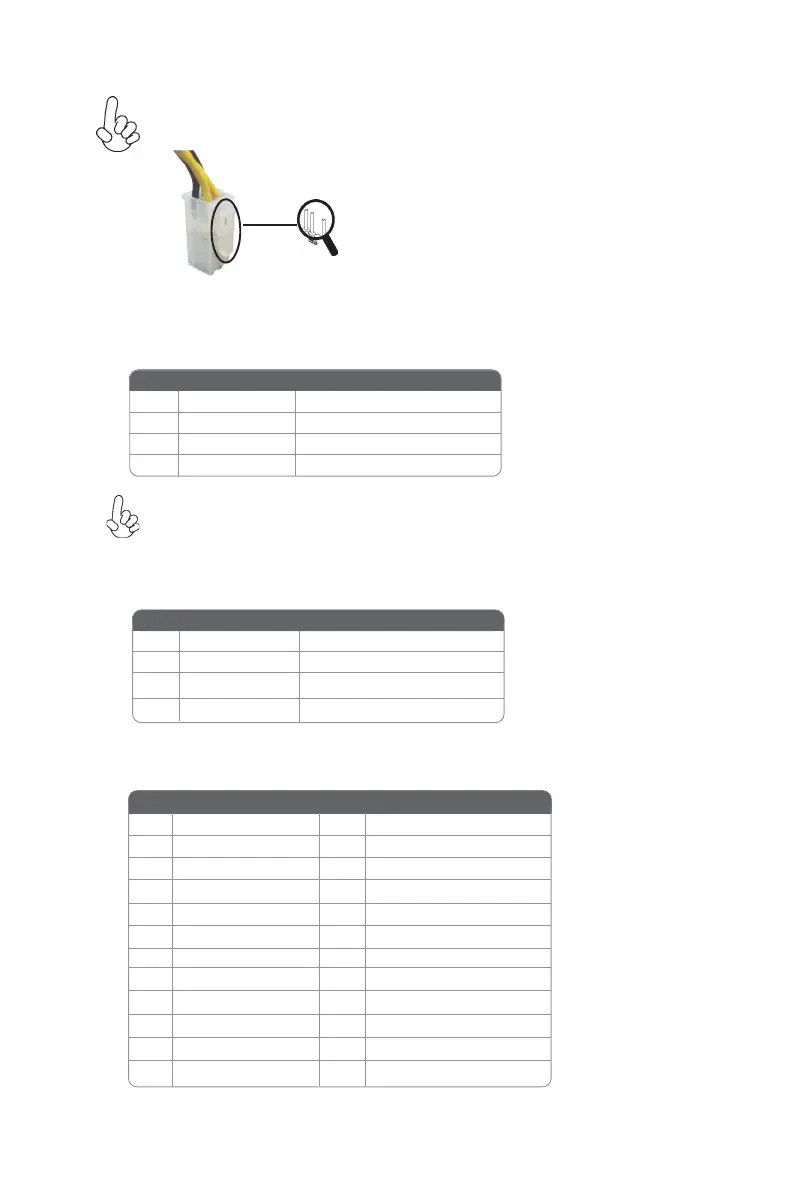

The ATX12V power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V
match perfectly.
Connecting 4-pin power cable
4-pin power cable
4 PWM Control
4 PWM Control
