Chapter 3
Super IO Configuration
Use this item to show the information of the Super IO Configuration.
Super IO Chip (IT8728)
This item shows the information of the super IO chip.
Serial Port 0 Configuration

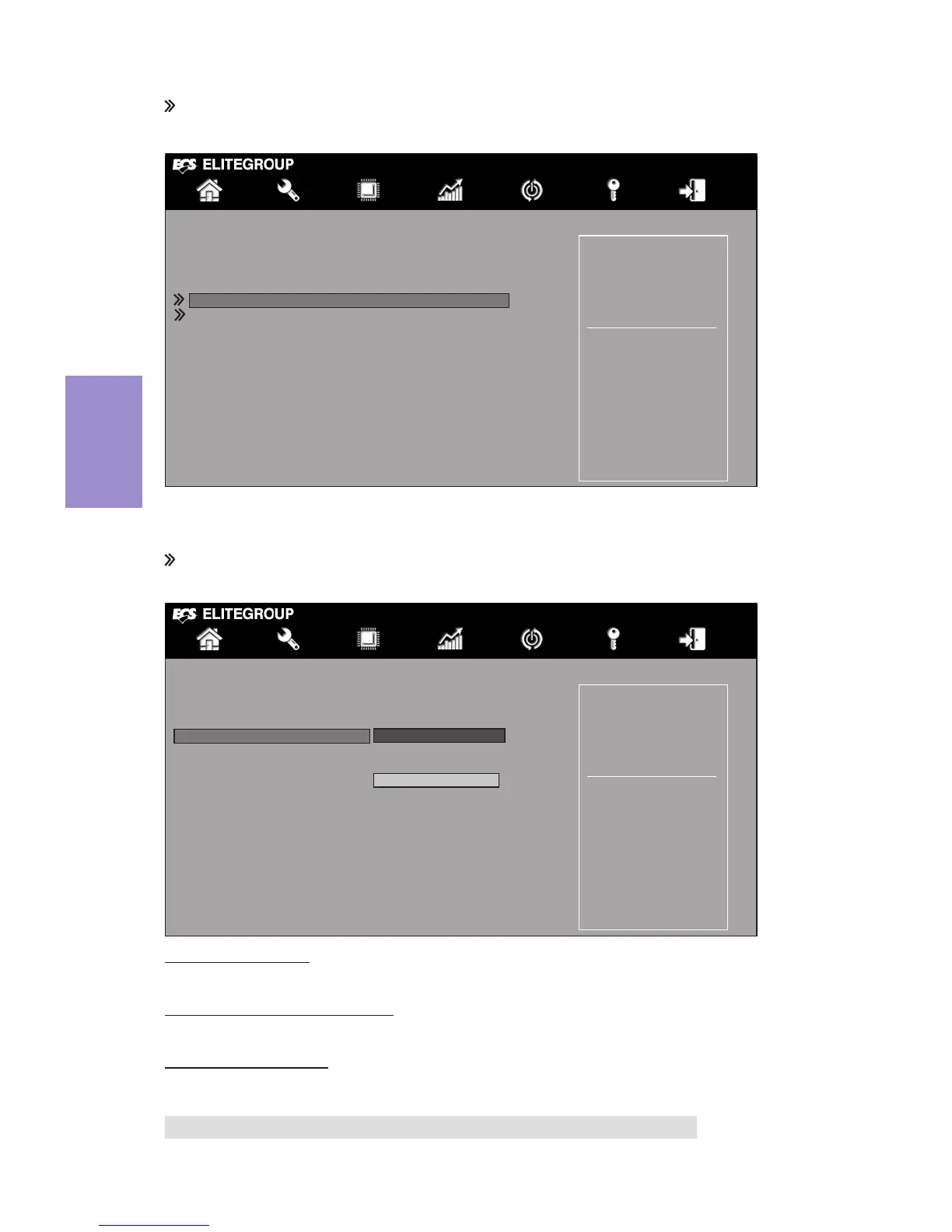

Scroll to this item and press <Enter> to view the following screen:
Press <Esc> to return to the Super IO Configuration page.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
IT8728
Serial Port 0 Configuration
Parallel Port Configuration
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Enabled or Diabled Serial
Port (COM)
Serial Port 0 Configuration
Serial Port Enabled
Device Settings IO=3F8h; IRQ=4;
Change Settings Auto
Set Parameters of Serial
Port 0 (COMA)
Super IO Chip
Super IO Configuration
To Next Page
