Installing the Motherboard

Checking Jumper Settings

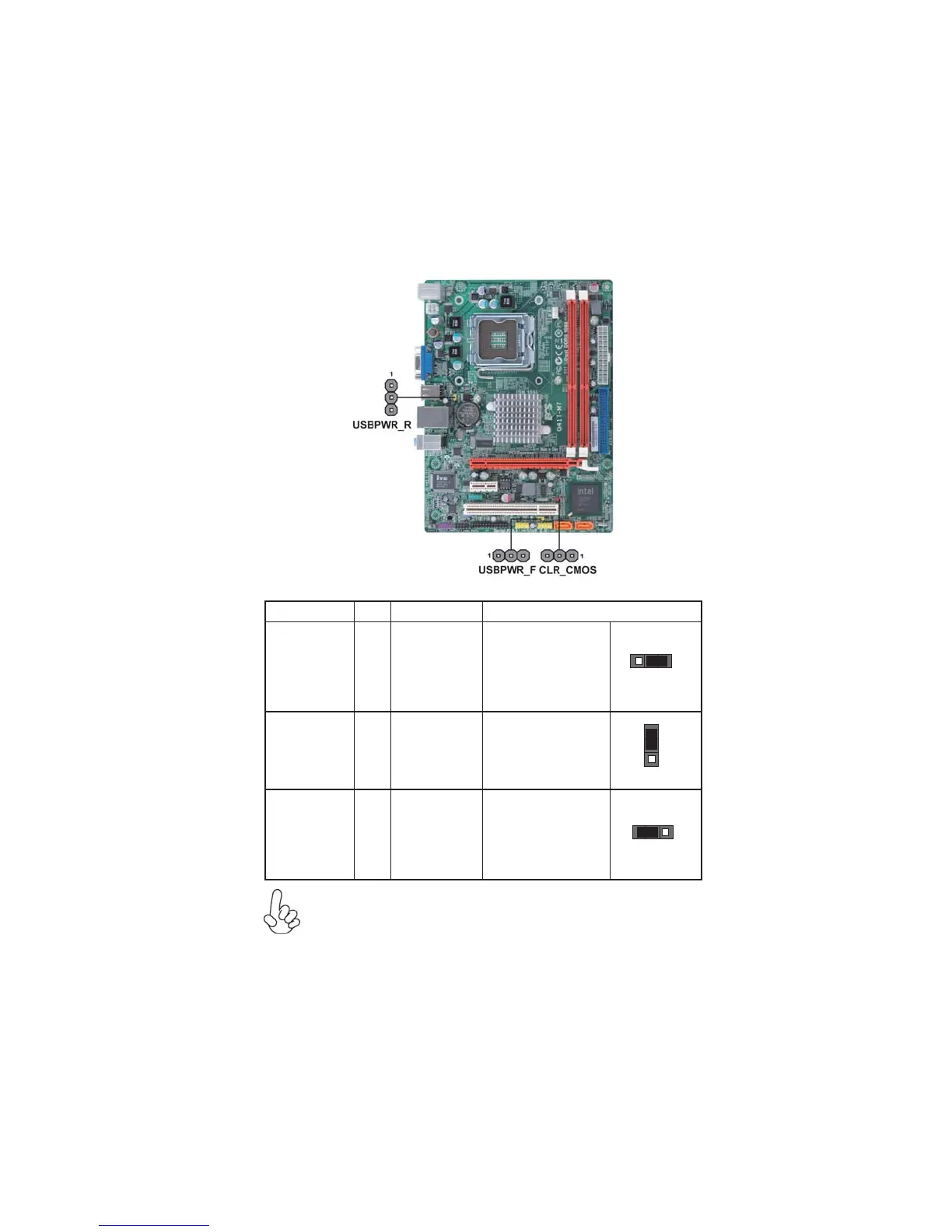

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

Jumper Settings

Jumper Type Description Setting (default)

CLR_CMOS

3-pin

CLEAR CMOS

1-2: NORMAL

2-3: CLEAR

Before clearing the

CMOS, make sure to

turn the system off.

3-pin

USBPWR_R

1-2: VCC

2-3: 5VSB

Rear USB/PS2

Power Select

Jumper

3-pin

USBPWR_F

1-2: VCC

2-3: 5VSB

Front Pa

nel

USB Power

Select Jumper

USBPWR_F

CLR_CMOS

USBPWR_R

To avoid the system instability after clearing CMOS, we recommend

users to enter the main BIOS setting page to “Load Default Settings”

and then “Save & Exit Setup”.

Make sure the power supply provides enough 5VSB voltage before se-

lecting the 5VSB function.

It is required that users place the USBPWR_F1~2 & USBPWR_R1 cap

onto 2-3 pin rather than 1-2 pin as default if you want to wake up the

computer by USB/PS2 KB/Mouse.
