22
Installing the Motherboard

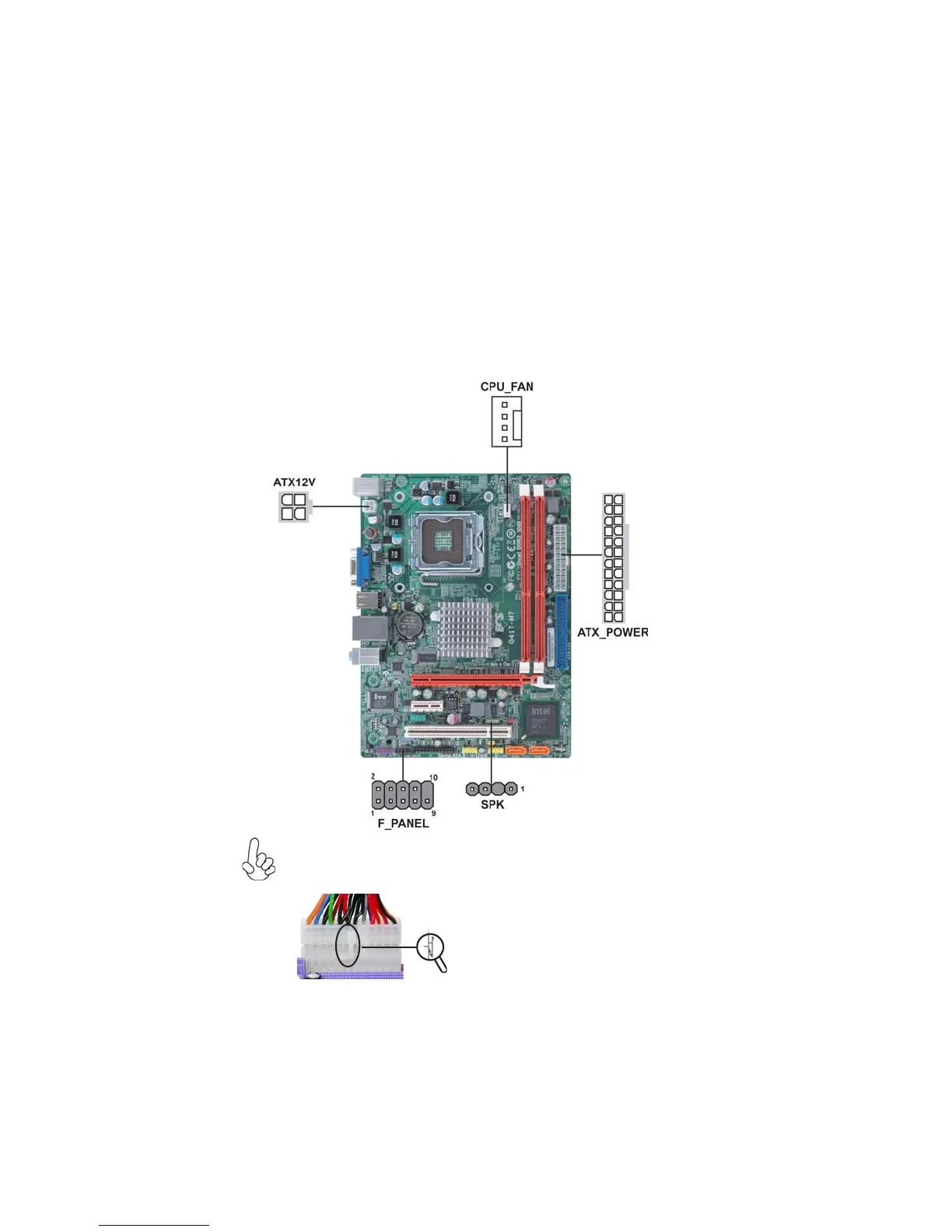

Connecting Case Components
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the standard power supply connector to ATX_POWER.
3 Connect the case switches and indicator LEDs to the F_PANEL.
4 Connect the case speaker cable to SPK.
5 Connect the auxiliary case power supply connector to ATX12V.
The ATX_POWER 24-pin connector allows you to connect to ATX v2.x
power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX_POWER match perfectly.
Connecting 24-pin power cable
24-pin power cable

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ECS G41T-M7 and is the answer not in the manual?

ECS G41T-M7 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel G41
CPU SocketLGA 775
Memory TypeDDR3
Memory Slots2 x DIMM
Maximum Memory8 GB
Storage Interface4 x SATA 3Gb/s
IDE Ports1 x IDE
Video OutputsVGA
Expansion Slots1 x PCIe x16, 2 x PCI
USB Ports8 x USB 2.0
AudioRealtek ALC662 6-channel HD Audio
LAN10/100 Mbps Ethernet
