Installing the Motherboard

Connecting I/O Devices

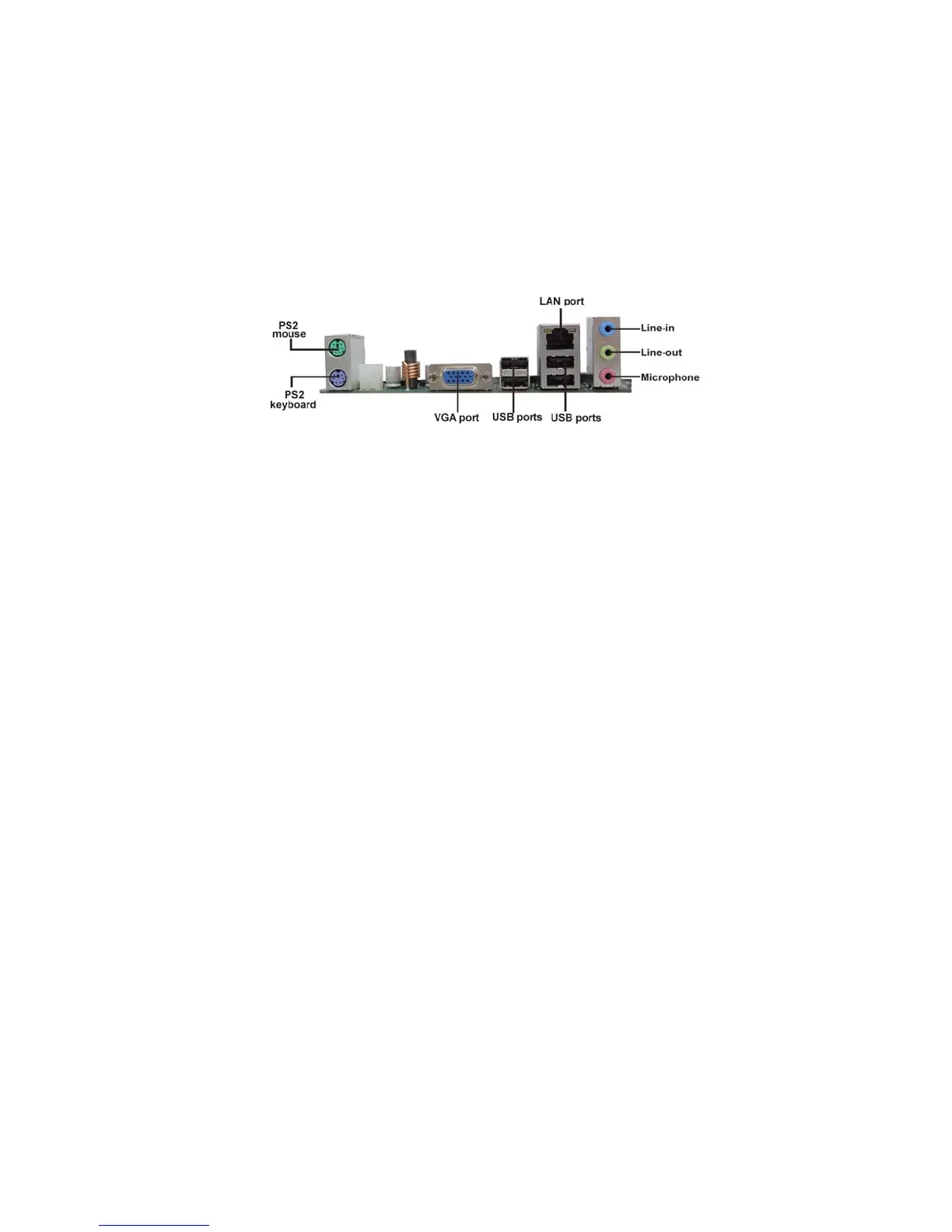

The backplane of the motherboard has the following I/O ports:

PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.

PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.

LAN Port Connect an RJ-45 jack to the LAN port to connect your

computer to the Network.

USB Ports Use the USB ports to connect USB devices.

Audio Ports

VGA Port Connect your monitor to the VGA port.

Use the three audio ports to connect audio devices. The

first jack is for stereo line-in signal. The second jack is for

stereo line-out signal. The third jack is for microphone.
