56
NVIDIA RAID Configuration

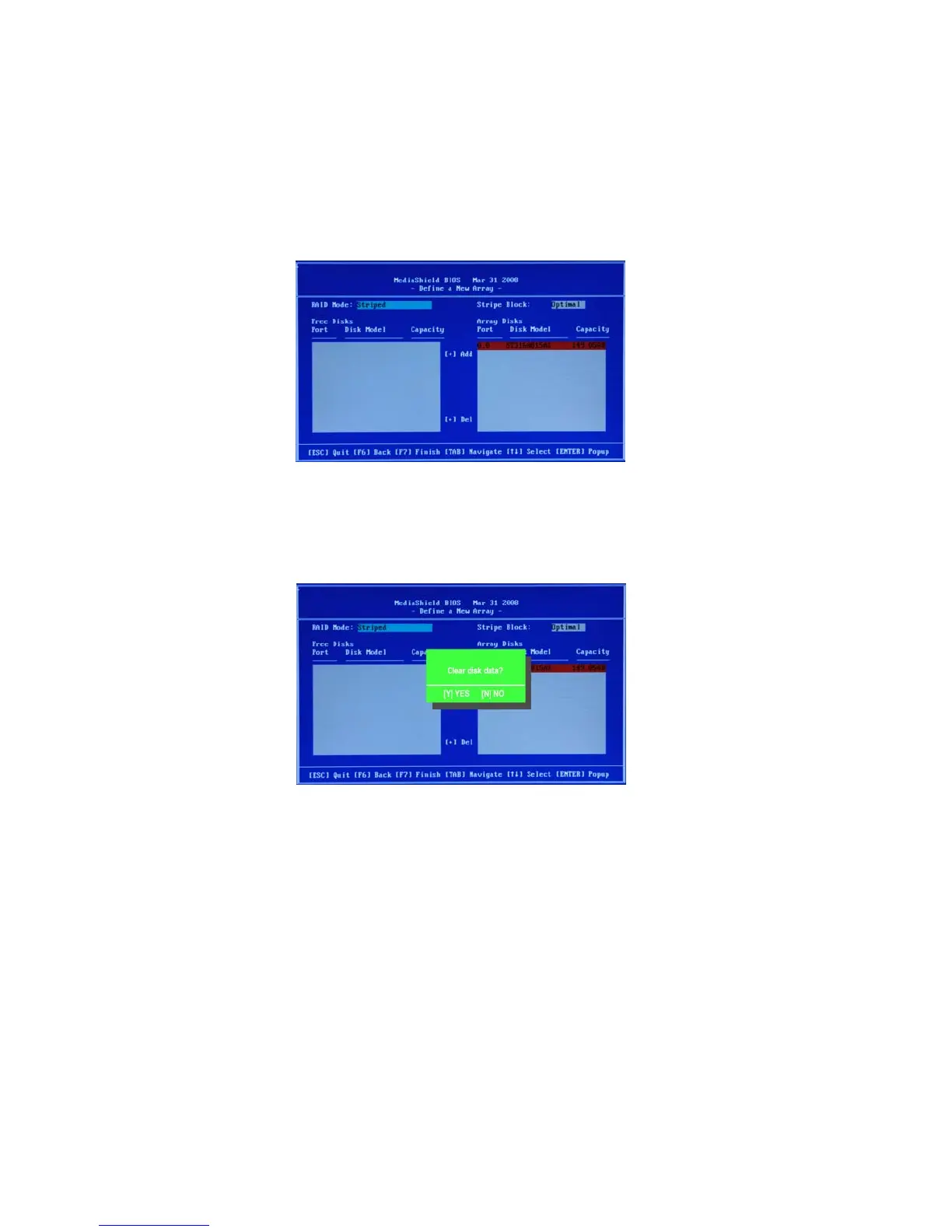

Figure 1.8 illustrates the Define a New Array screen after one disk have been
assigned as RAID 0 array disk.
Figure 1.8 MediaShield BIOS—Array Disks Assigned
Completing the RAID BIOS Setup
Figure 1.9 Clear Disk Data Prompt
After assigning your RAID array disk, press F7.
The Clear disk array prompt appears.
1

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ECS GeForce6100PM-M2 and is the answer not in the manual?

ECS GeForce6100PM-M2 Specifications

General IconGeneral
Number of memory slots2
Maximum internal memory16 GB
Processor socketSocket AM2
Processor manufacturerAMD
USB 2.0 connectors3
S/PDIF out connectorYes
Number of SATA connectors4
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity1
Firewire (IEEE 1394) ports0
Audio chipRealtek ALC662
Power source typeATX
Audio output channels6.1 channels
Motherboard form factormicro ATX
BIOS typeAward
BIOS memory size64 Mbit
RAID levels0, 1
