ECS GeForce6100PM-M2 User Manual

57
NVIDIA RAID Configuration

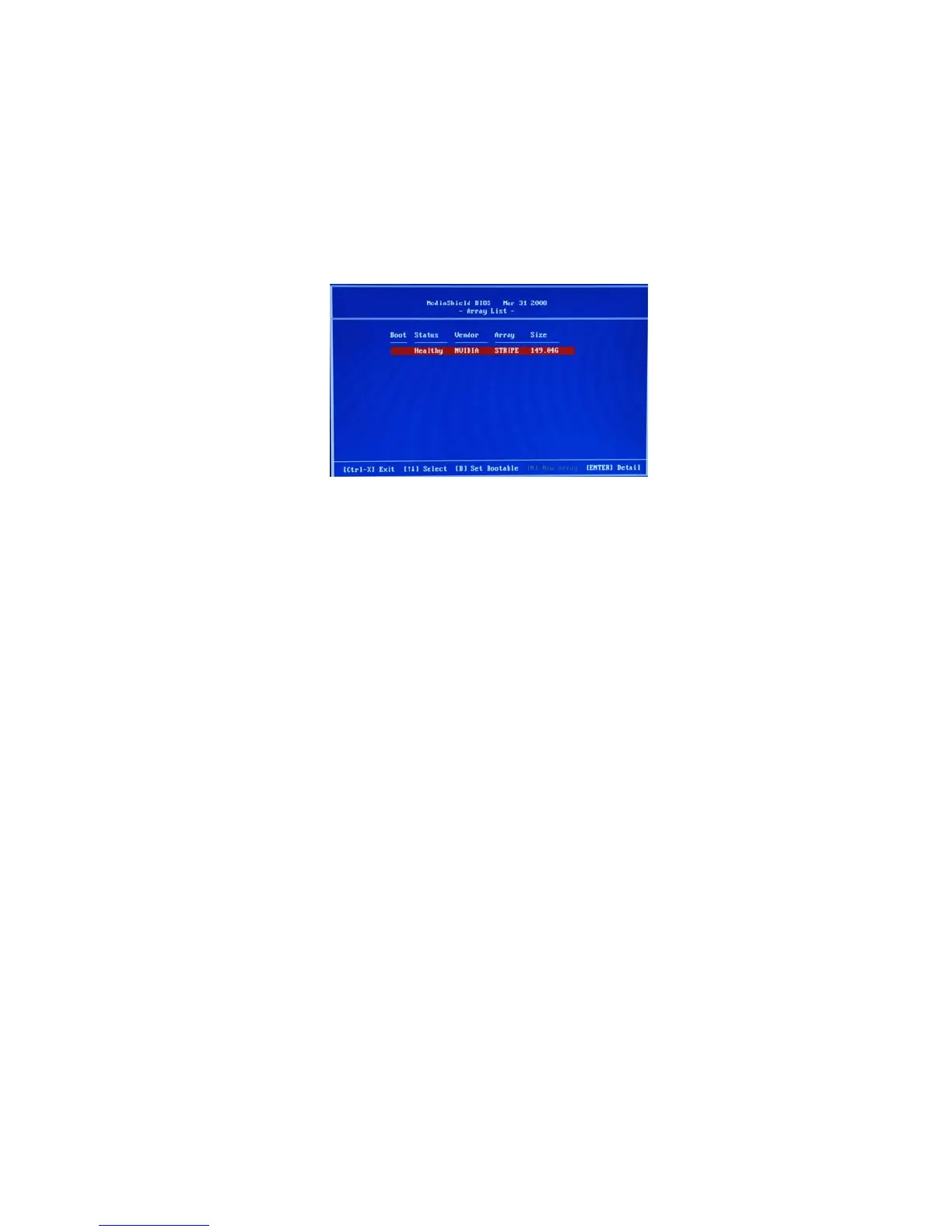

Figure 1.10 Array List Window
Press Y to clear the disk data.
The Array List screen appears, where you can review the RAID arrays that
you have set up.
The Array Detail screen shows various information about the array that you
selected, such as Striping Block used, RAID Mode, Striping Width, Disk
Model Name, and disk capacity.
If you want to mark this disk as empty and wipe out all its contents, press C.
At the prompt, press Y to wipe out all the data, otherwise press N.
Press Enter again to go back to the previous screen and then press F10 to exit
the RAID setup.
3
Use the arrow keys to select the array that you want to set up, then press B
to specify the array as bootable.
Press Enter to view and verify details.
5
6
7
4
2

ECS GeForce6100PM-M2 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	Award
BIOS memory size	64 Mbit
RAID levels	0, 1
