ECS GF8100VM-M5 User Manual

23
Installing the Motherboard
Connecting I/O Devices

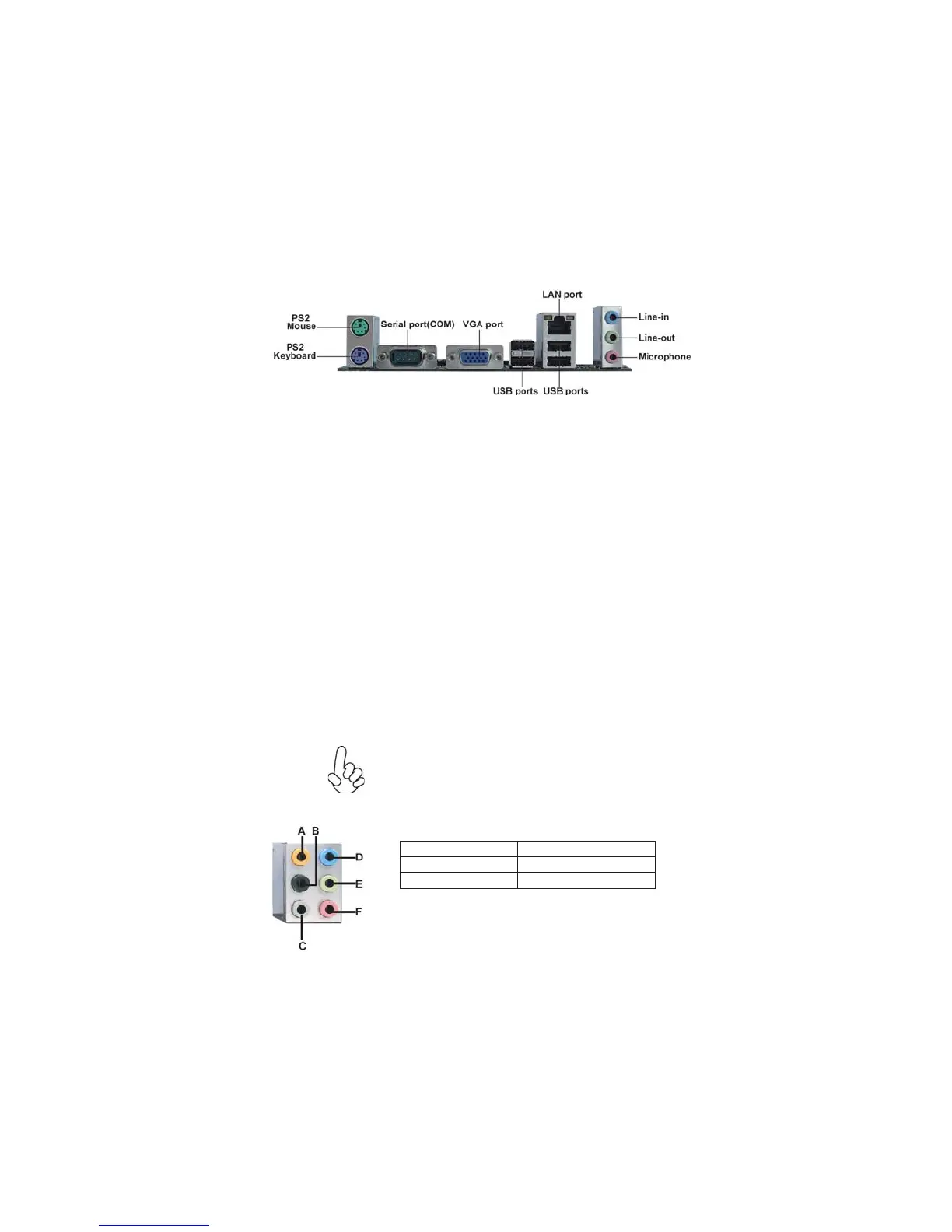

The backplane of the motherboard has the following I/O ports:
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
VGA Port Connect your monitor to the VGA port.
USB Ports Use the USB ports to connect USB devices.
Audio Ports
LAN Port Connect an RJ-45 jack to the LAN port to connect your
computer to the network.
(optional)
This motherboard may adopt 8-channel audio ports that
correspond to the A,B, C, and E port respectively. In addi-
tion, all of the 3 ports, B, C, and E provide users with both
right & left channels individually. Users please refer to the
following note for specific port function definition.
A: Center & Woofer D: Line-in
B: Back Surround E: Front Out
C: Side Surround F: Mic_in Rear
The above port definition can be changed to audio input or
audio output by changing the driver utility setting.
Use the three audio jacks to connect audio devices. The first
jack is for stereo line-in signal. The second jack is for stero
line-out signal. The third jack is for microphone.
Serial Port Use the COM port to connect serial devices such as mice or
(COM) fax/modems.

ECS GF8100VM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of SATA connectors	6
Controller interface type	NVIDIA MCP78V
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
Maximum graphics card memory	512 MB
RAID levels	0, 1
