ECS GF8100VM-M5 User Manual

64

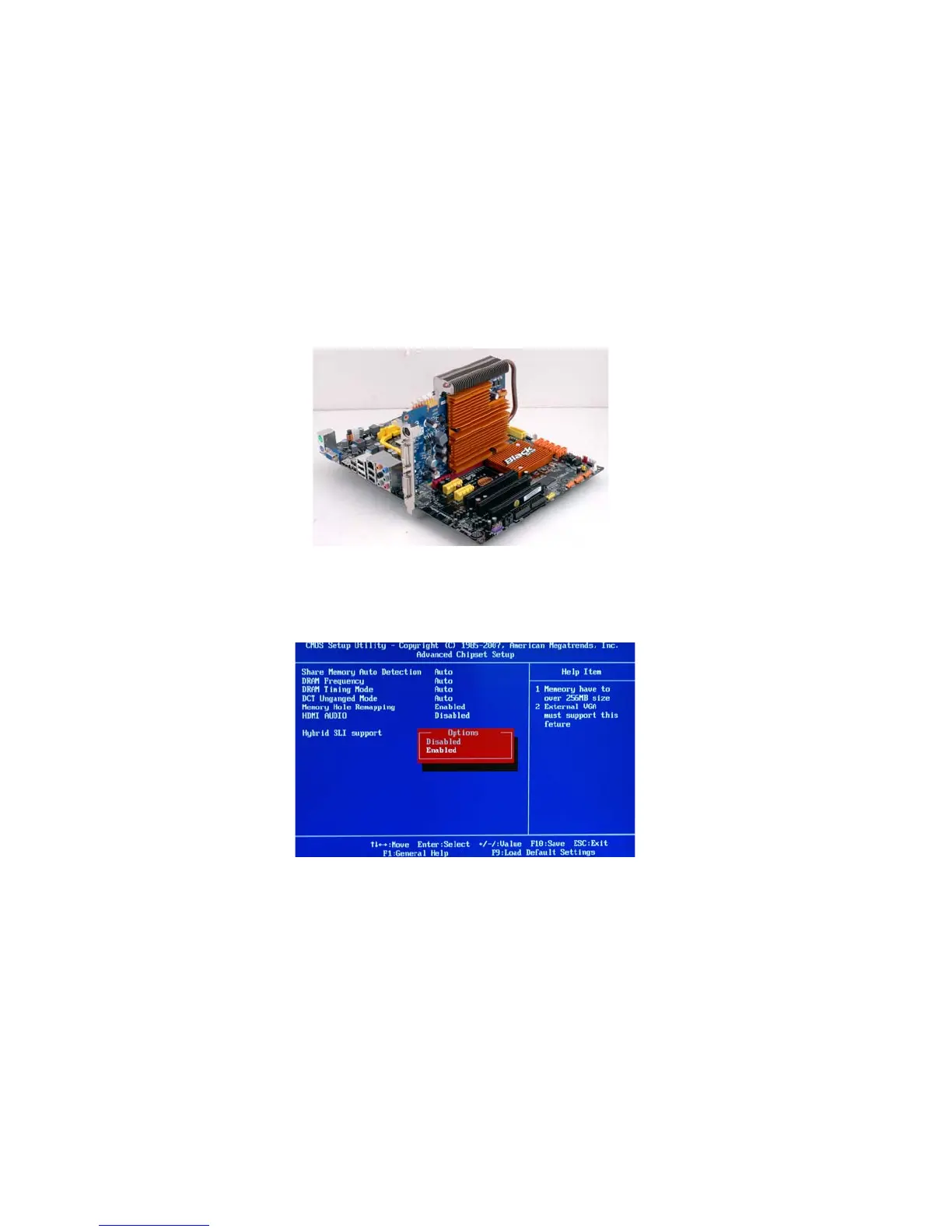

NVIDIA® Hybrid SLI® Technology Support
Installation and Use
1. Prepare one Hybrid SLI enabled graphics card.
3.
Insert the Hybrid SLI enabled graphics card into the PCIEX16 Slot on the
motherboard.
2.
Start your computer, then press Delete to enter the BIOS setup; use the arrow keys
to select Advanced Chipset Setup, then press Enter; set the item Hybrid SLI supprt
to Enabled.
4. Press F10 to save the configuration and exit the BIOS.

ECS GF8100VM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of SATA connectors	6
Controller interface type	NVIDIA MCP78V
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
Maximum graphics card memory	512 MB
RAID levels	0, 1
