ECS GF8100VM-M5 User Manual

57
NVIDIA RAID Configuration
Figure 1.10 Array List Window

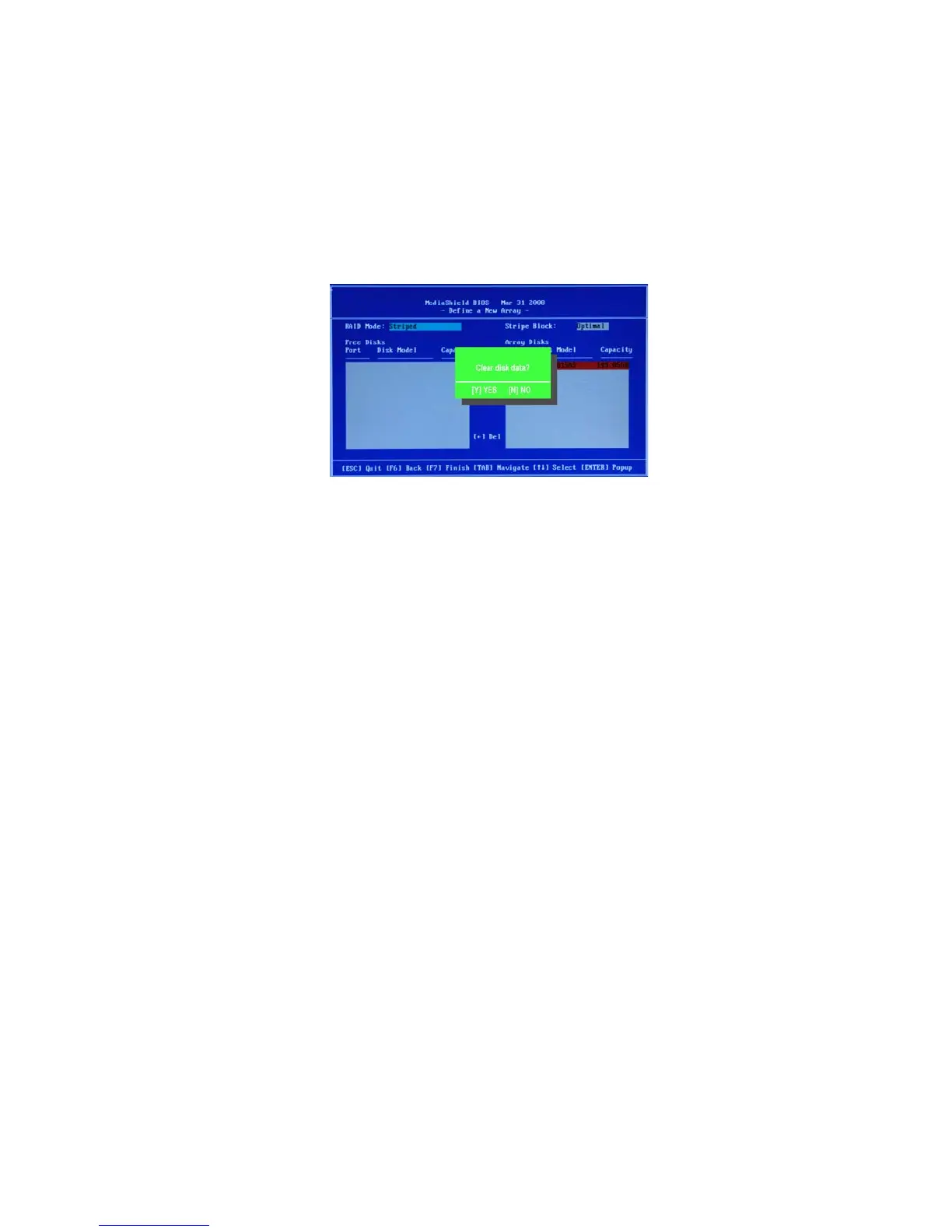

Press Y to clear the disk data.
The Array List screen appears, where you can review the RAID arrays that
you have set up.
The Array Detail screen shows various information about the array that you
selected, such as Striping Block used, RAID Mode, Striping Width, Disk
Model Name, and disk capacity.
If you want to mark this disk as empty and wipe out all its contents, press C.
At the prompt, press Y to wipe out all the data, otherwise press N.
Press Enter again to go back to the previous screen and then press F10 to exit
the RAID setup.
3
Use the arrow keys to select the array that you want to set up, then press B
to specify the array as bootable.
Press Enter to view and verify details.
5
6
7
4
2

ECS GF8100VM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of SATA connectors	6
Controller interface type	NVIDIA MCP78V
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
Maximum graphics card memory	512 MB
RAID levels	0, 1
