PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.

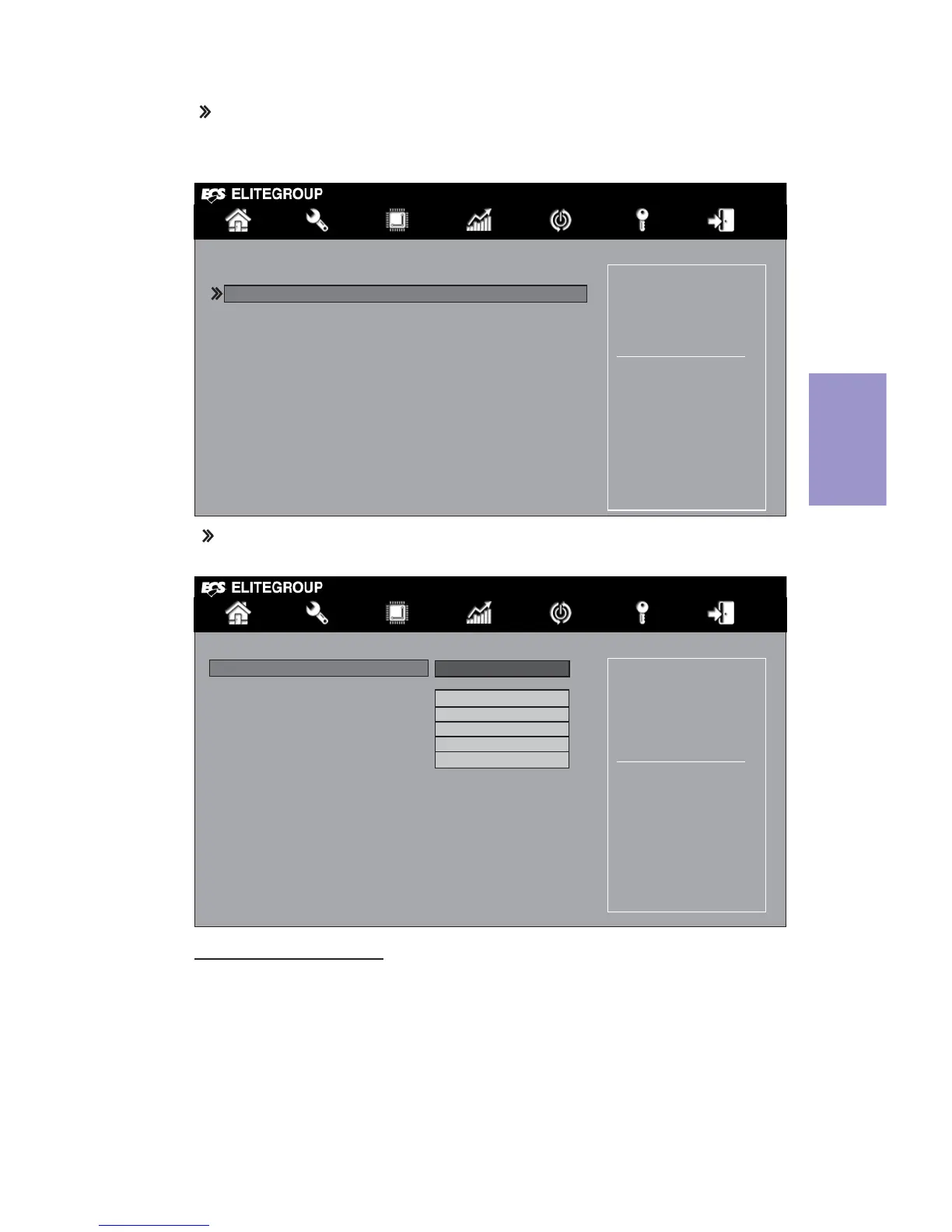

Scroll to this item and press <Enter> to view the following screen:
 Smart Fan Function
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU Temperature (DTS) 39
System Temperature 33
O
C
CPU Fan Speed 3000 RPM
System Fan Speed 0 RPM
Core Voltage 1.012V
DIMM Voltage 1.364V
+12V 12.012V
+5VSB 5.027V
+VCC 5.082V
TCC Activation Temperature (DTS) 100
Smart Fan Function
PC Health Status
Smart Fan Select
Main Advanced Chipset Tweak Security Boot Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Smart Fan Select CPU Fan
Smart Fan Mode Normal
Smart Fan start PWM value 180
Smart Fan start PWM TEMP (DTS) 70
DeltaT 3
Smart Fan Slope PWM value 10
Fan Full Speed Offset (DTS) 77
Smart Fan Select (CPU Fan)
This item allows you to change and configure Smart Fans on M/B. ex. CPU Fan, System
Fan.
