ECS H61H2-M2 User Manual

22
Installing the Motherboard

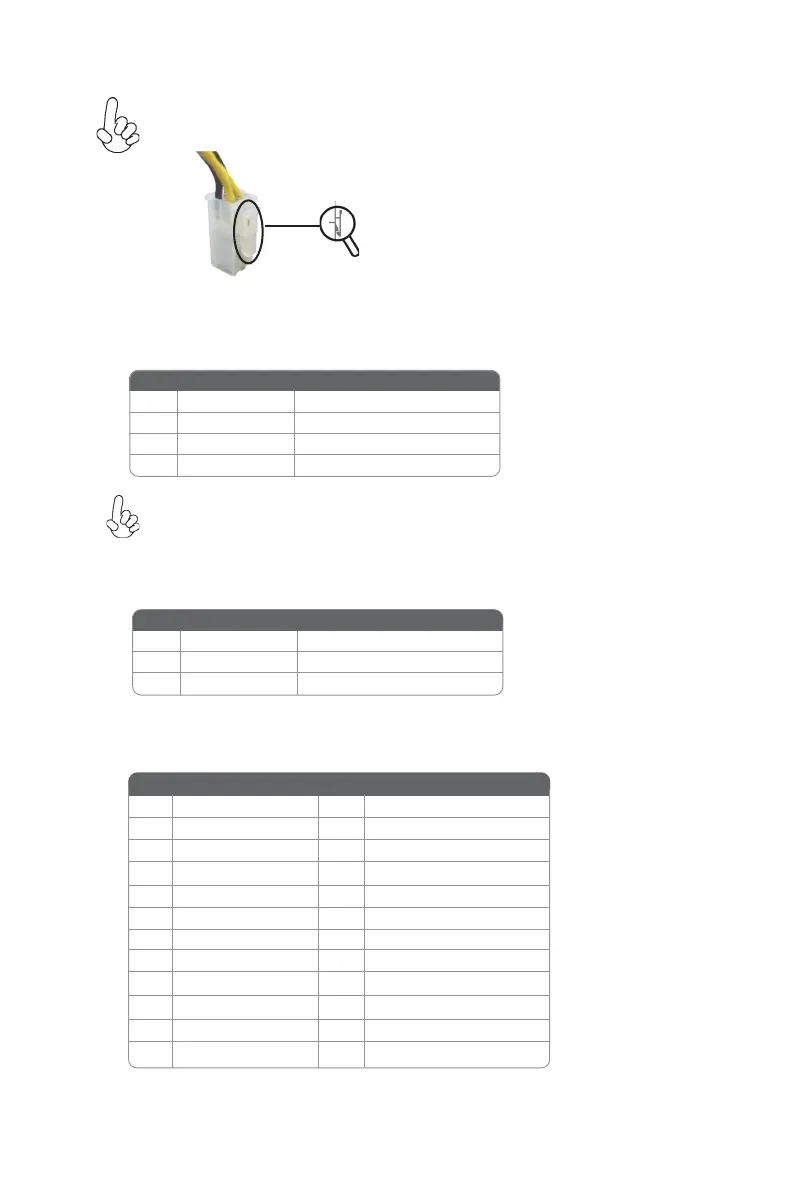

ATX_POWER: ATX 24-pin Power Connector
Users please note that the fan connector supports the CPU cooling fan of
1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
4 PWM PWM
Pin Signal Name Function
2 +12V Power +12V
SYS_FAN: System Cooling FAN Power Connectors
1 GND System Ground
3 Sense Sensor
Pin Signal Name Function
2 +12V Power +12V
Pin Signal Name Pin Signal Name
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWRGD 20 -5V
9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
The ATX12V4P power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V4P
match perfectly.
Connecting 4-pin power cable
4-pin power cable

ECS H61H2-M2 Specifications

General

Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Power fan connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	0
HDMI ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Certification	RoHS
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 32-bit/64-bit
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Networking features	Fast Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit
Supported storage drive interfaces	SATA II

Weight and Dimensions

Depth	180 mm
Width	225 mm
