24
Installing the Motherboard
Connecting Case Components

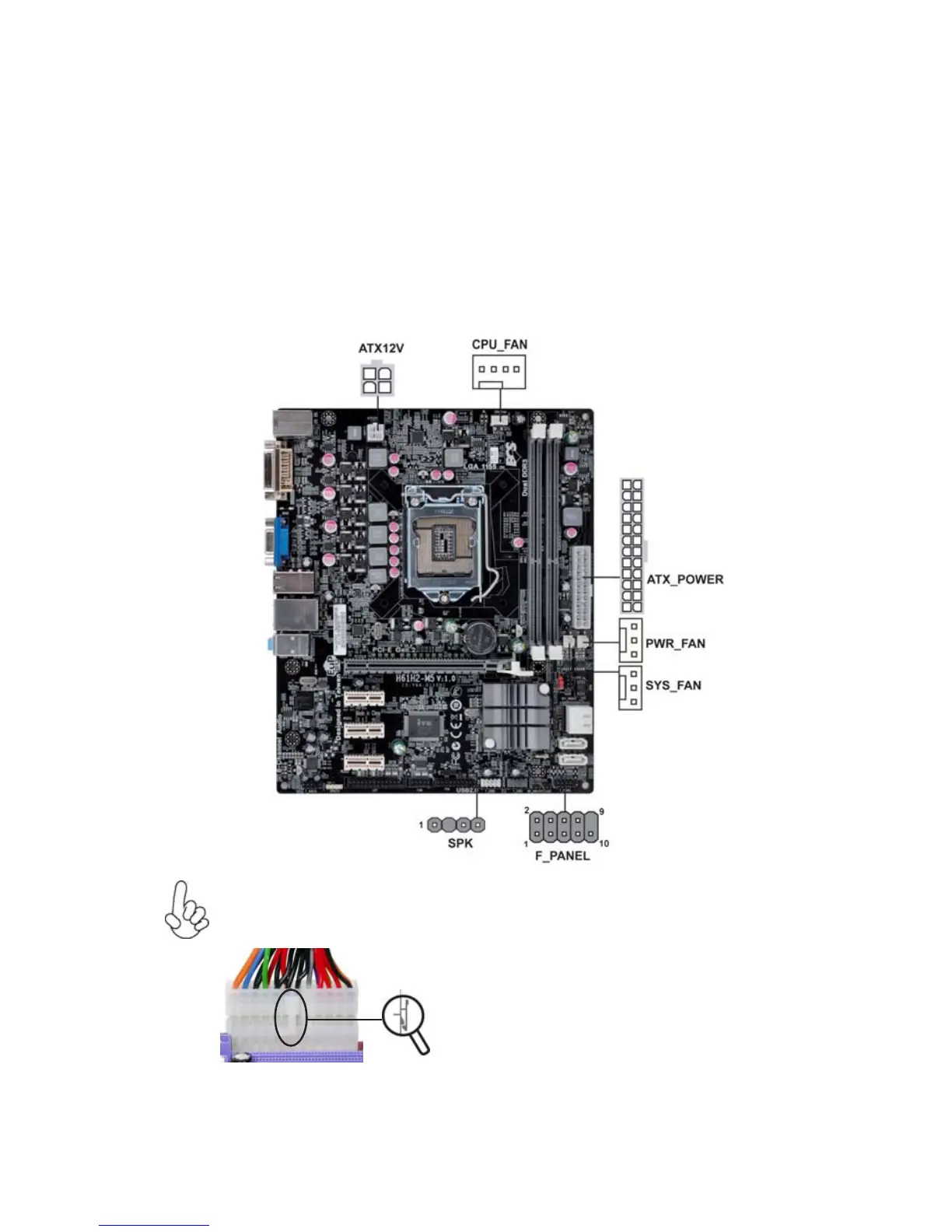

After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
The ATX 24-pin connector allows you to connect to ATX v2.x power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX1 match perfectly.
Connecting 24-pin power cable
24-pin power cable
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the standard power supply connector to ATX_POWER.
3 Connect the case switches and indicator LEDs to the F_PANEL.
4 Connect the system cooling fan connector to SYS_FAN.
5 Connect the power cooling fan connector to PWR_FAN
6 Connect the auxiliary case power supply connector to ATX12V.
7 Connect the case speaker cable to SPK.
