2-4-4. Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can
increase the motherboard’s capabilities by adding hardware that performs tasks
that are not part of the basic system.
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may have
to manually configure the card before installation.

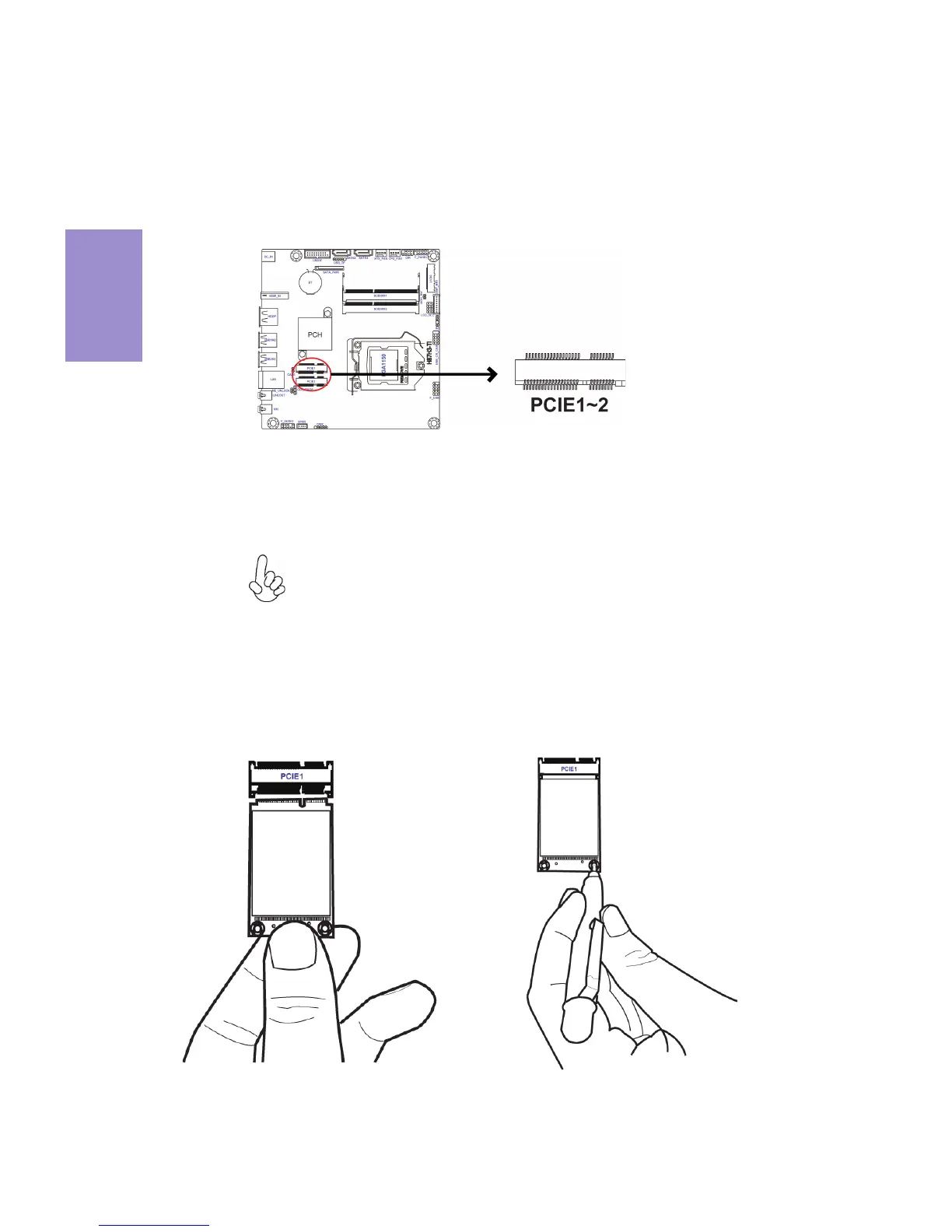

PCIE1~2 Slots The mini PCIe1 (full-card) supports SATA signal, USB signal and
PCIe signal for extending usage of mSATA card and TV tuner card,
and mini PCIe2 (half-card) supports extension cards with PCIe
signal.
Follow these instructions to install a mSATA card or TV tuner card:
1 Insert a Mini SATA (mSATA) card or TV tuner card into the PCIE1 Slot.
2 Lower the handle and tighten the screws.
