H87H3-TI USER MANUAL
The motherboard has one USB 2.0 headers supporting two USB 2.0 ports.
Additionally, some computer cases have USB 2.0 ports at the front of the case. If you
have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted
ports to the motherboard.

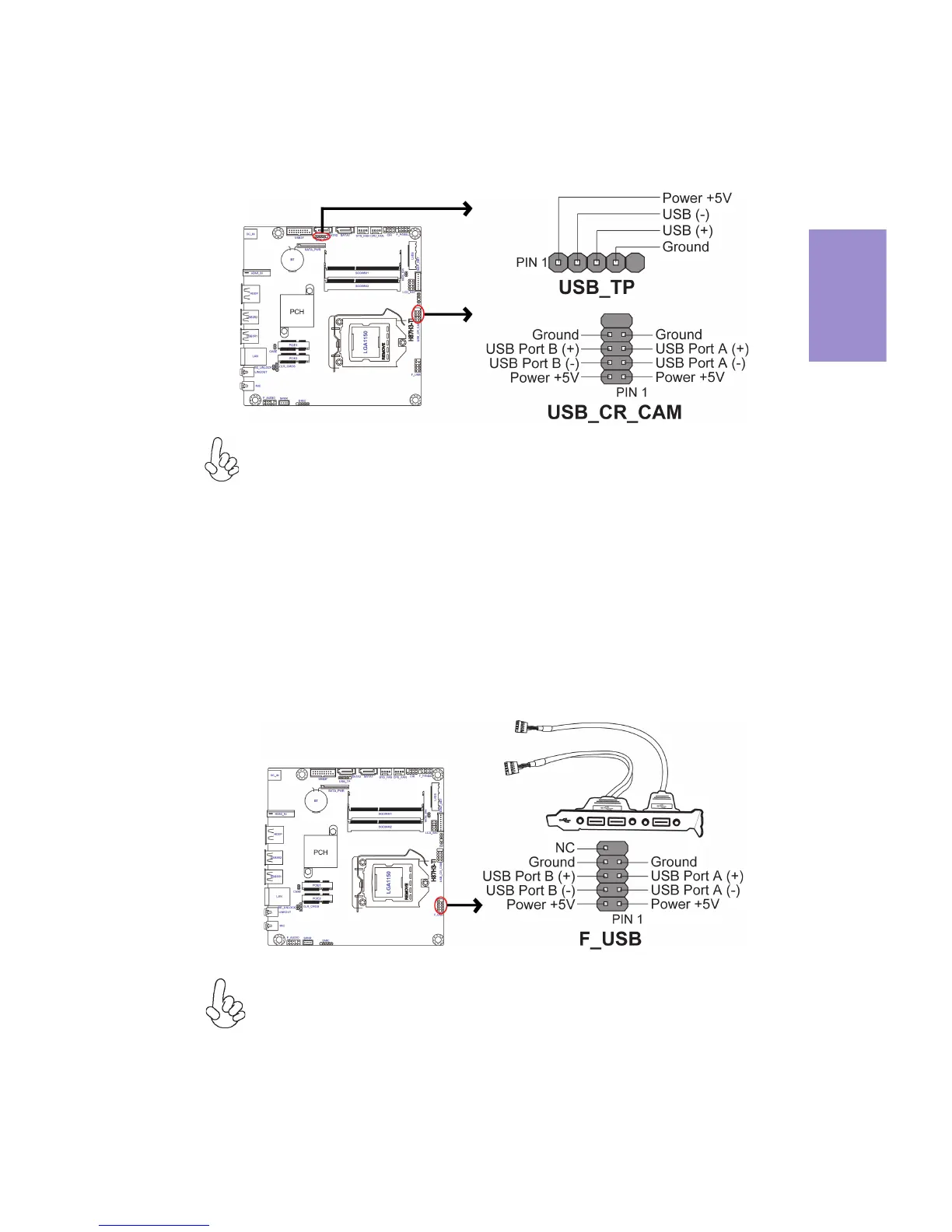

7. F_USB: Front Panel USB 2.0 header
6 & 12. USB_TP/USB_CR_CAM: 5-pin USB 2.0 header supports one USB 2.0
device/10-pin USB 2.0 header supports card reader and camera or other USB
2.0 devices
Users please note to install the card to the correct header.
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
