Chapter 2
26
H87H3-TI USER MANUAL
Connect the case speaker cable to SPKR.

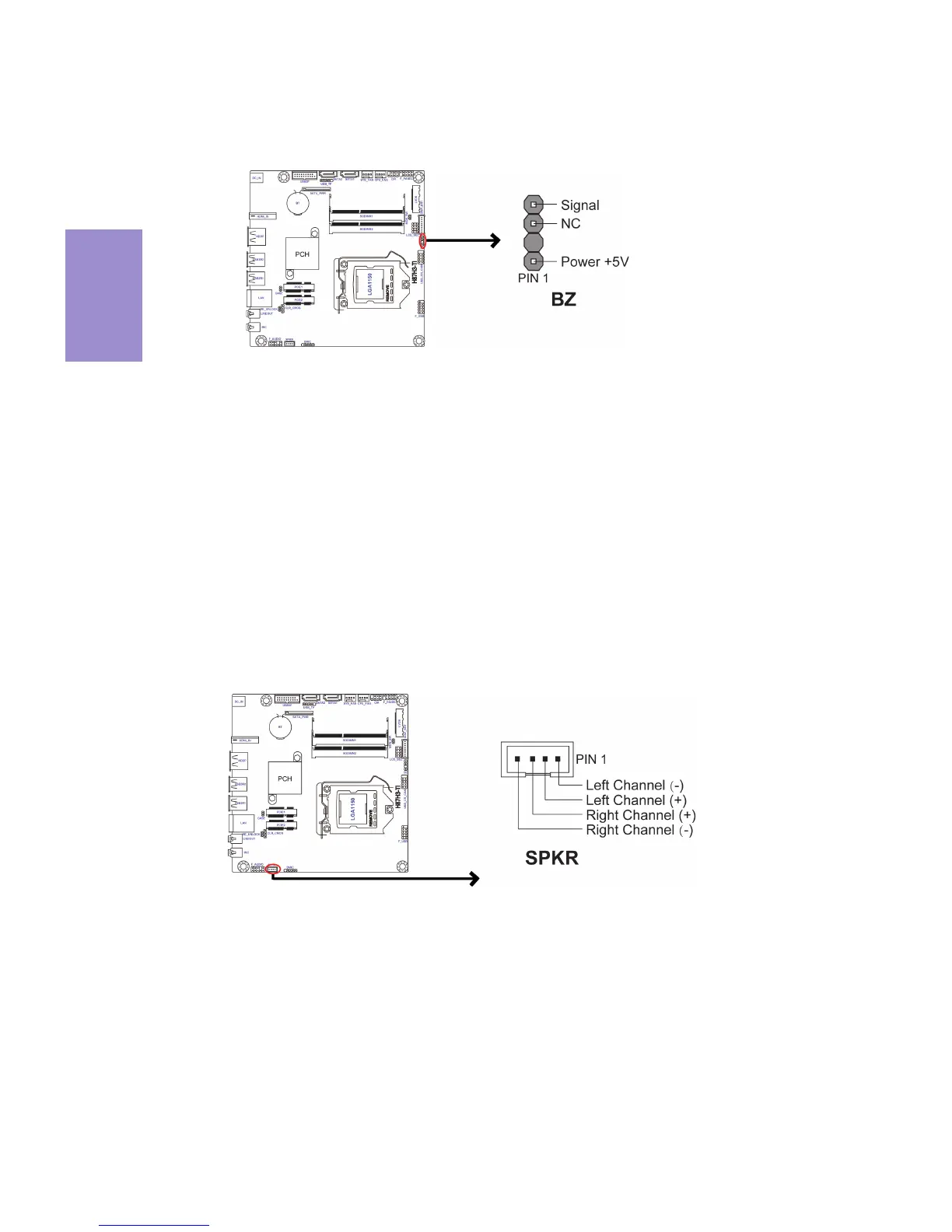

5. SPKR: 2 Channel audio speaker header (For All-In-One Specification)
4. BZ: Buzzer header
