LIVA X MINI PC USER MANUAL
Chapter 1
LABEL COMPONENTS
1. Memory 1~4 Single channel DDR3L soldered down memory
2. SYS_LED System power LED
3. POWER_BTN Power On/Off buon
4. MINI_PCIE Mini PCIE supports wireless card
5. UART_DBG UART debug header
6. eMMC Direct soldered down 32/64GB eMMC
7. BT Baery connector
8. CPU Bay Trail-M SoC
9. MSATA mSATA supports mSATA SSD

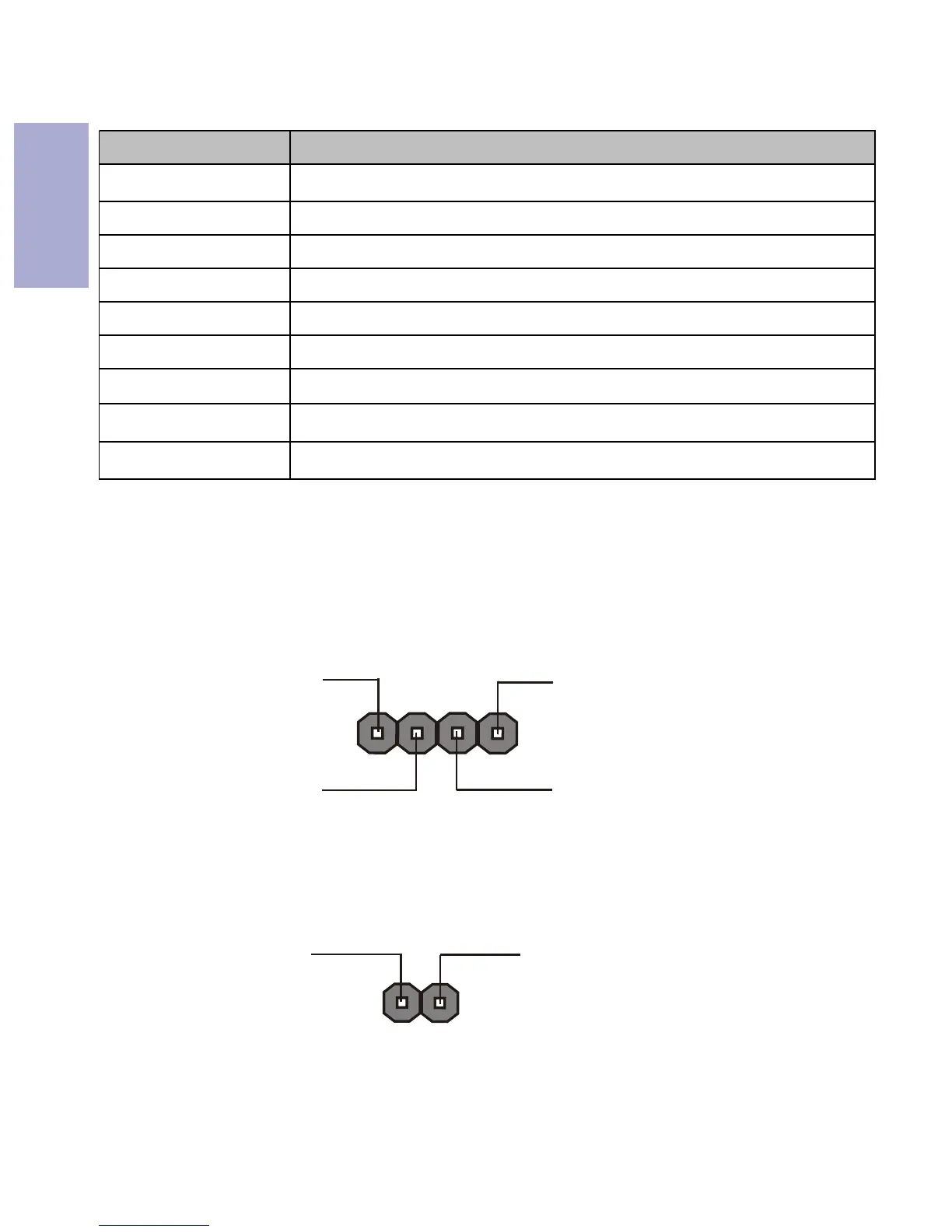

Header Pin Definion
Table of Motherboard Components
UART_DBG
BT (Baery)
PIN 1
+3VSB Ground
TXD RXD
PIN 1
+VBATGND

ECS LIVA X Specifications

General

Processor family	-
Processor frequency	- GHz
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Storage media	eMMC
Optical drive type	No
Total storage capacity	- GB
Discrete graphics card model	Not available
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Audio chip	Realtek ALC283
Product type	Mini PC
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Chassis type	Small Desktop
Product color	Black
Placement supported	Horizontal/Vertical
Panel mounting interface	75 x 75, 100 x 100 mm
Power supply input voltage	100-240 V

Weight and Dimensions

Depth	83 mm
Width	135 mm
Height	40 mm
Weight	- g
