14
CPU Inst
a
llation Procedure

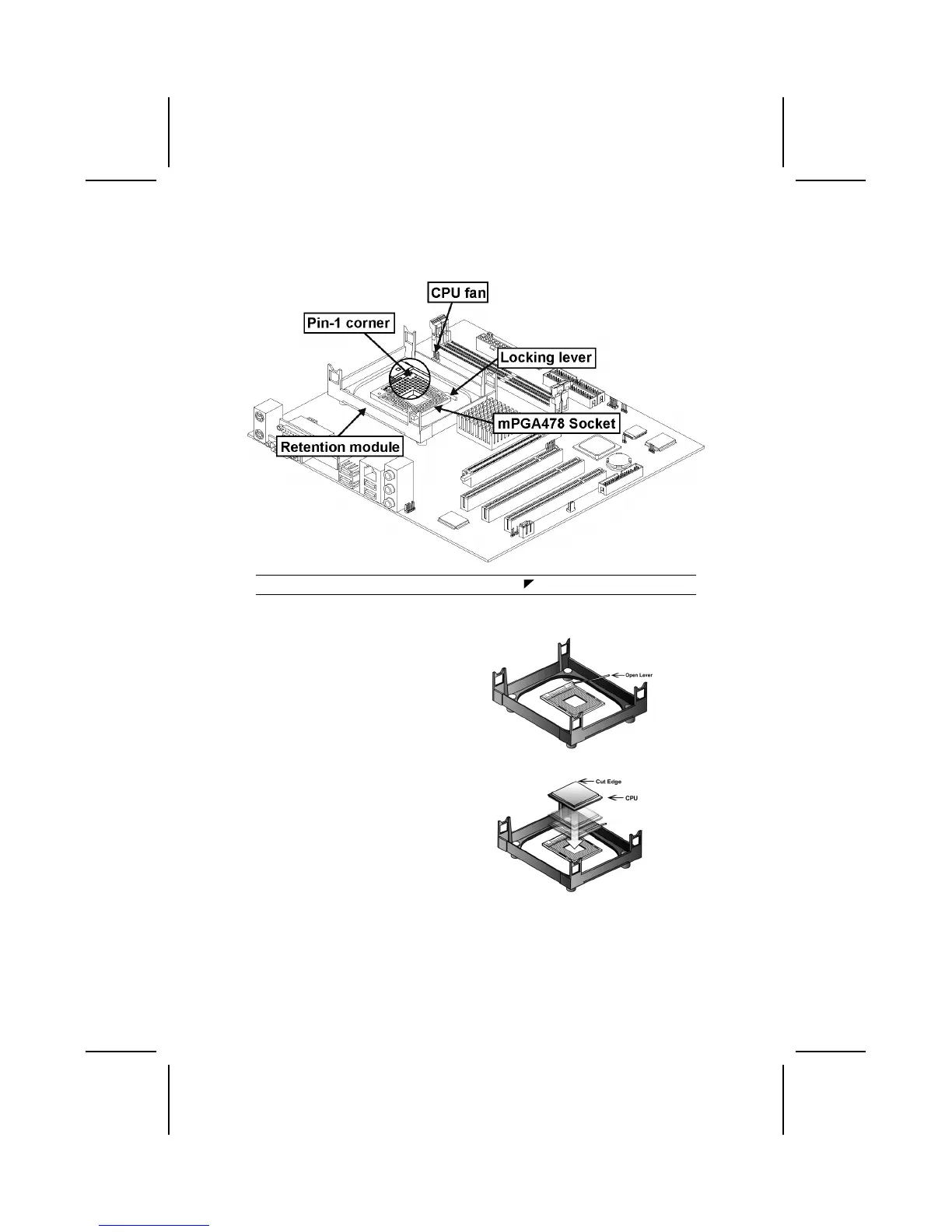

The following illustration show
s
CPU installation component
s:
Note:
The pin-1 corner is
marked with an arro
w
Follow these instructions to inst
all the Retention Module and CPU:
1.
Install y
our CPU. Pull up
the lever away
from the
socket and lift up to 90-
degree angle.
2.
Locate the CPU cut
edge (the corner with the
pinhole noticeably miss-
ing). Align and insert the
CPU correctly
.
17
