39

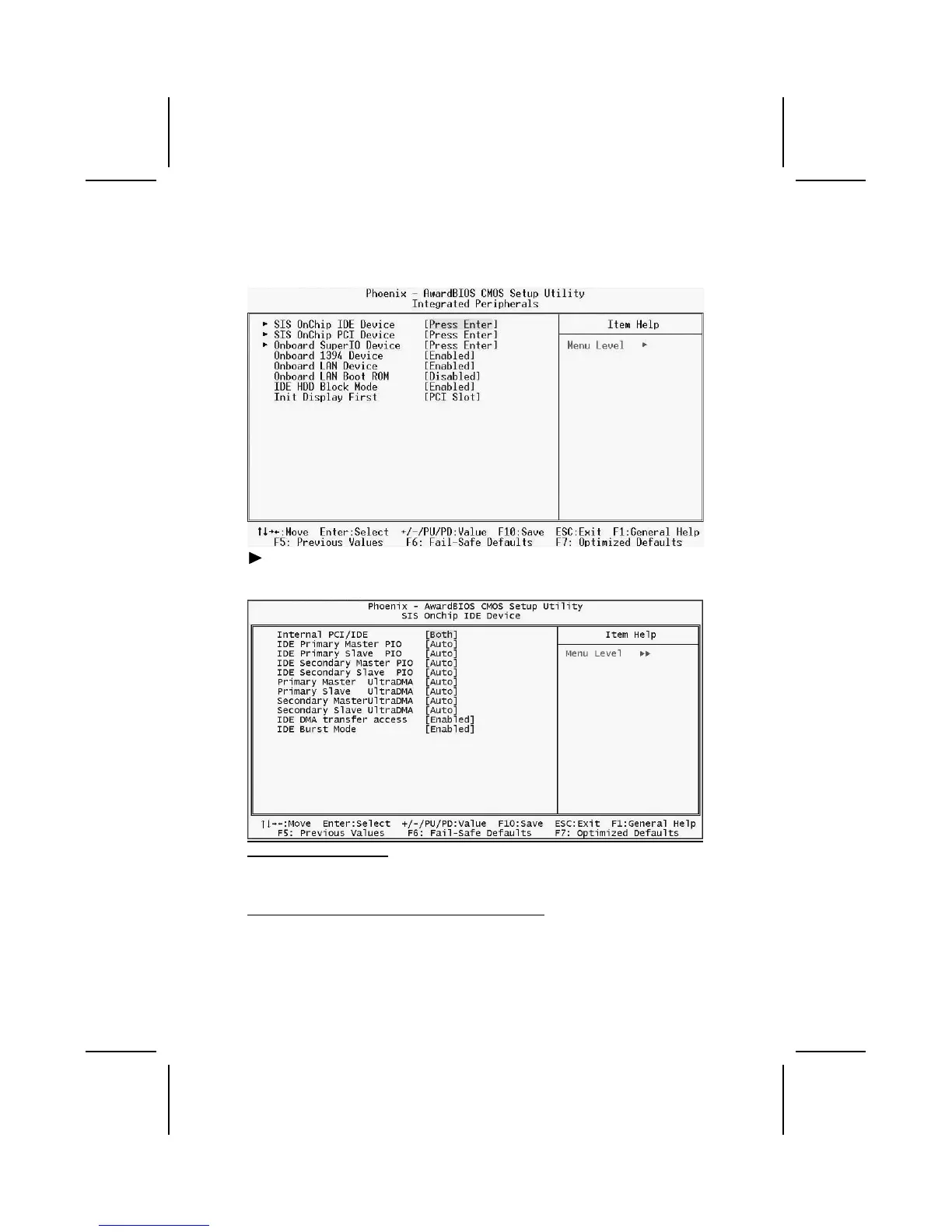

Integrated Peripherals
These options display items that define the operation of peripheral compo-
nents on the system's input/output ports.
SIS OnChip IDE Device
Scroll to this item and press <Enter> to view the following screen:
Internal PCI/IDE (Both)
Use these items to enable or disable the internal PCI IDE channels that are
integrated on the motherboard.
IDE Primary/Secondary Master/Slave PIO (Auto)
Each IDE channel supports a master device and a slave device. These four
items let you assign the kind of PIO (Programmed Input/Output) was used by
the IDE devices. Choose Auto to let the system auto detect which PIO mode
is best, or select a PIO mode from 0-4.
To Next Page
