15

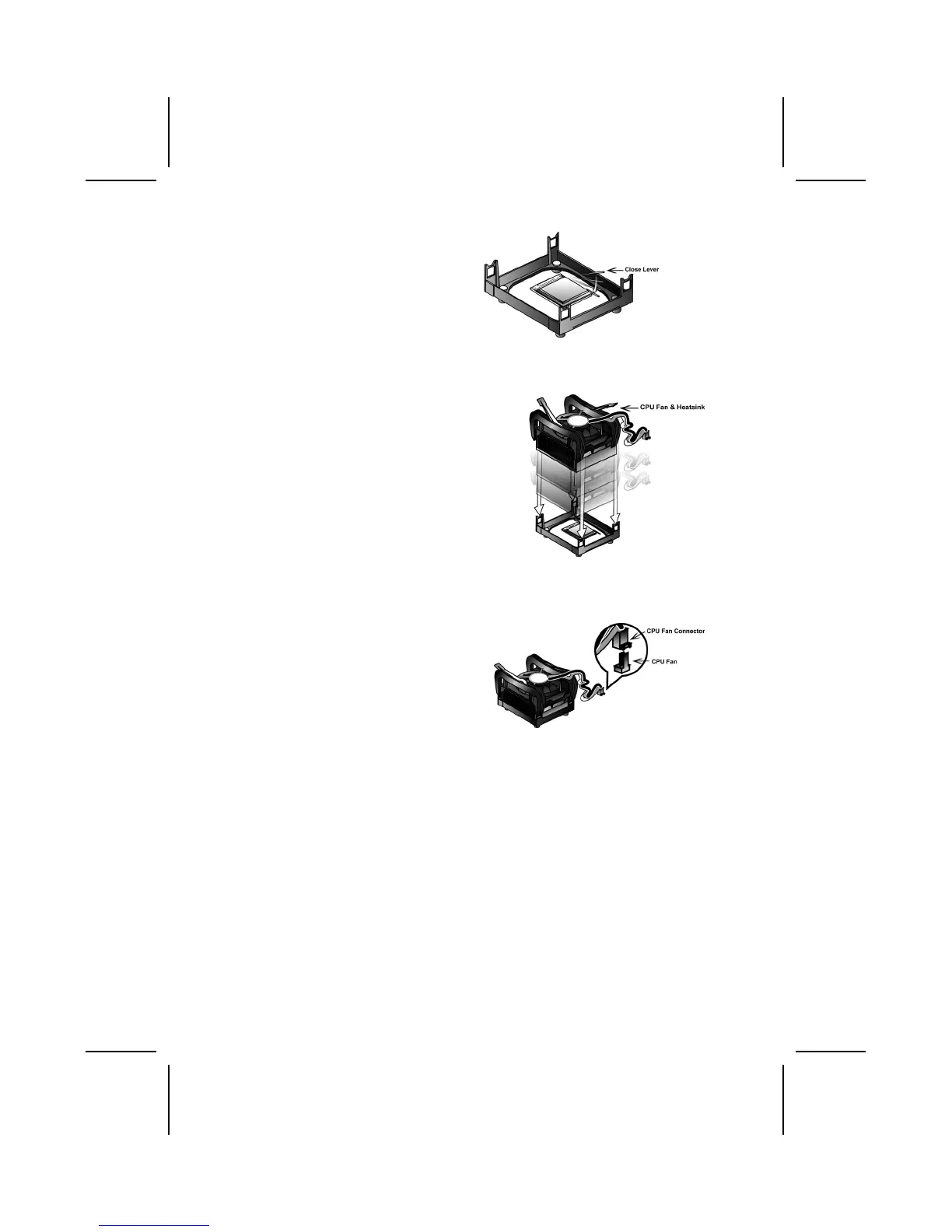

3. Press the lever down.
4. Apply thermal grease on top of the CPU.
5. Put the CPU Fan down
on the retention module
and snap the four reten-
tion legs of the cooling
fan into place.
6. Flip the levers over to lock the heat sink in place.
7. Connect the CPU Cool-
ing Fan power cable to
the CPUFAN1 connec-
tor. This completes the
installation.
Notes:
•
To achieve better airflow rates and heat dissipation, we suggest that
you use a high quality fan with 4800 rpm at least.
• CPU fan and heatsink installation procedures may vary with the type of
CPU fan/heatsink supplied. The form and size of fan/heatsink may also
vary.
Installing Memory Modules
This motherboard accommodates two 184-pin 2.5V unbuffered Double Data
Rate (DDR) SDRAM memory modules. Double Data Rate (DDR) SDRAM
doubles the rate to 1.6 GBps and 2.1 GBps.
The motherboard accommodates two memory modules. You must install at
least one module in any of the two slots. Each module can be installed with 1
GB of memory; total memory capacity is 2 GB.
