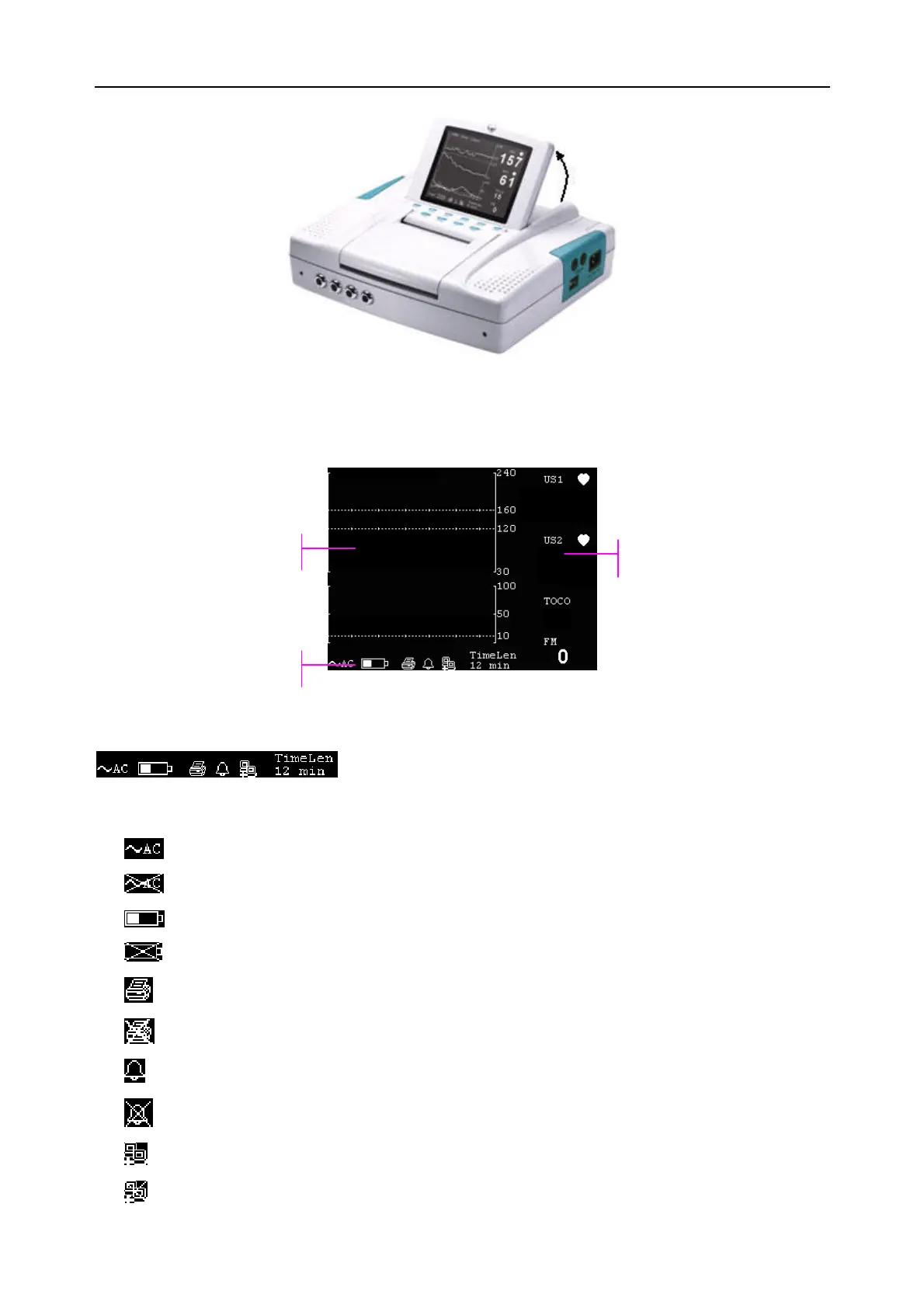

Figure 3-2 To tilt the display
The screen display includes three frames: (1) information frame, (2) trend/menu frame, (3)
parameter frame (see Figure 3-3).
Figure 3-3 Display screen
(1) Information Frame
The information frame is located at the bottom of the screen, which indicates current status of the
monitor.
a)
: AC power supplied;
: no AC power supplied.
b)
: The battery is loaded, and the white pane indicates the charge of the battery;
means no battery is loaded.
c)
: The recorder is printing;
: The recorder stops printing.
d)
: The audible alarm sound is activated;
: The audible alarm sound is inactivated;
e)
: The monitor is online.
: The monitor is offline.
Parameter frame
Trend/menu frame
Information frame
