CADENCE II Fetal Monitor User Manual
- 17 -
3.3.1 Transducers

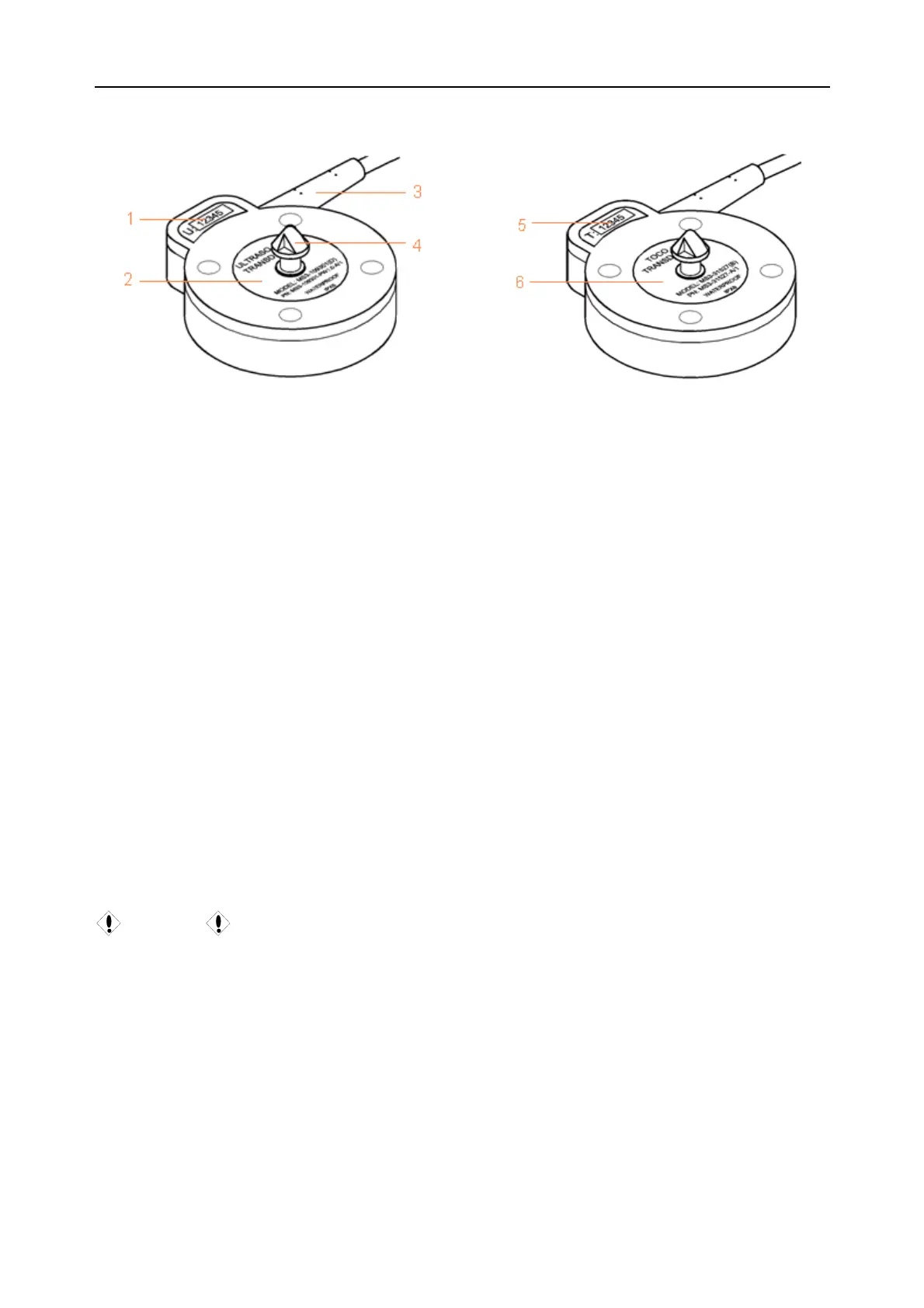

Figure 3-7 Ultrasound (US) transducer Figure 3-8 TOCO transducer
1 Serial number label of the US transducer, pink. U:xxxxx is the serial number.
2 Specification label of the US transducer, pink.
3 Transducer cable
4 Belt buckle
5 Serial number label of the TOCO transducer, blue. T:xxxxx is the serial number.
6 Specification label of the TOCO transducer, blue.
Information on the specification label includes:
PN: MS3-109301: Part number of this US transducer.
MS3-31527: Part number of this TOCO transducer.
PW 1.0: pulsed wave, the central frequency of the US transducer is 1.0 MHz.
A/1: Version number of the transducer.
WATERPROOF: means the transducer is waterproof.
IPX8: means the transducer can work continuously for 5 hours under 1-metre water without
being waterlogged.
CAUTION :
The waterproof parts of the US/TOCO transducer are restricted to the main body and the
cable. Do not immerse the plug into any liquid in the process of monitoring or cleaning.
3.3.2 Remote Event Marker
The remote event marker is a hand-held switch operated by patient. The mother is normally
instructed to push down this switch when feeling a fetal movement.
