SE-1515 PC ECG User Manual ECG Analysis
- 64 -
5.3.1 Displaying Vector ECG with All Plane and All Loop
Set the plane to ALL and the loop to ALL.

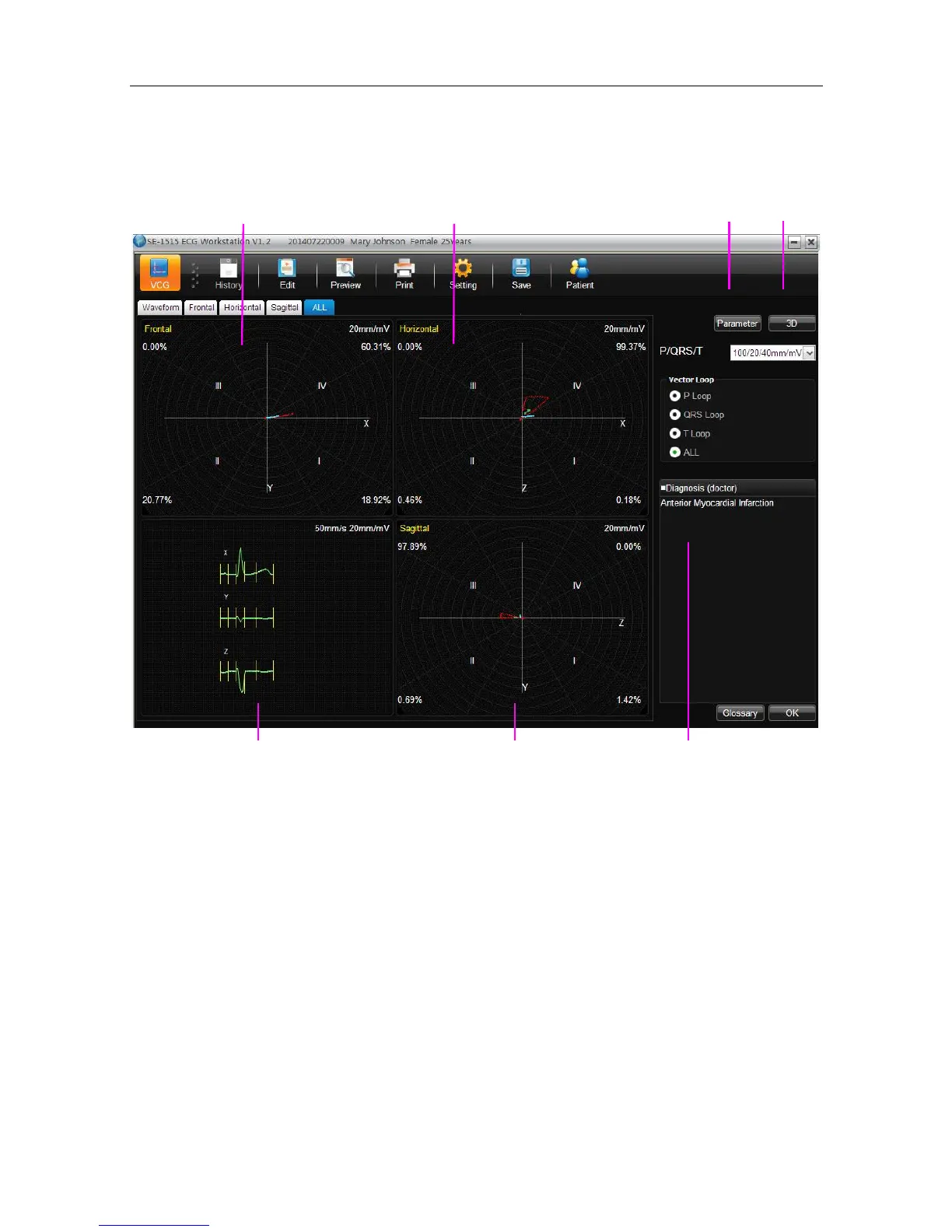

Figure 5-2 Vector ECG - Plane of ALL and Loop of ALL
Figure 5-2 displays Vector ECG with the plane of ALL and the loop of ALL.
A- Vector ECG of Frontal
B- Vector ECG of Horizontal
C- Vector ECG of Sagittal
D- Average templates of X, Y and Z leads. Double-click on this figure to display the magnified
average template. You can drag these lines marked P1, P2, Q, S, T1 and T2 on the wave. With the
change of the line position, the corresponding parameter values change.
E- Click on the Parameter button to display the following Vector ECG parameter list.
