C
HAPTER
3
| Installing the Switch
Mounting
– 39 –
DESKTOP OR SHELF MOUNTING
1. Attach the four adhesive feet to the bottom of the first switch.

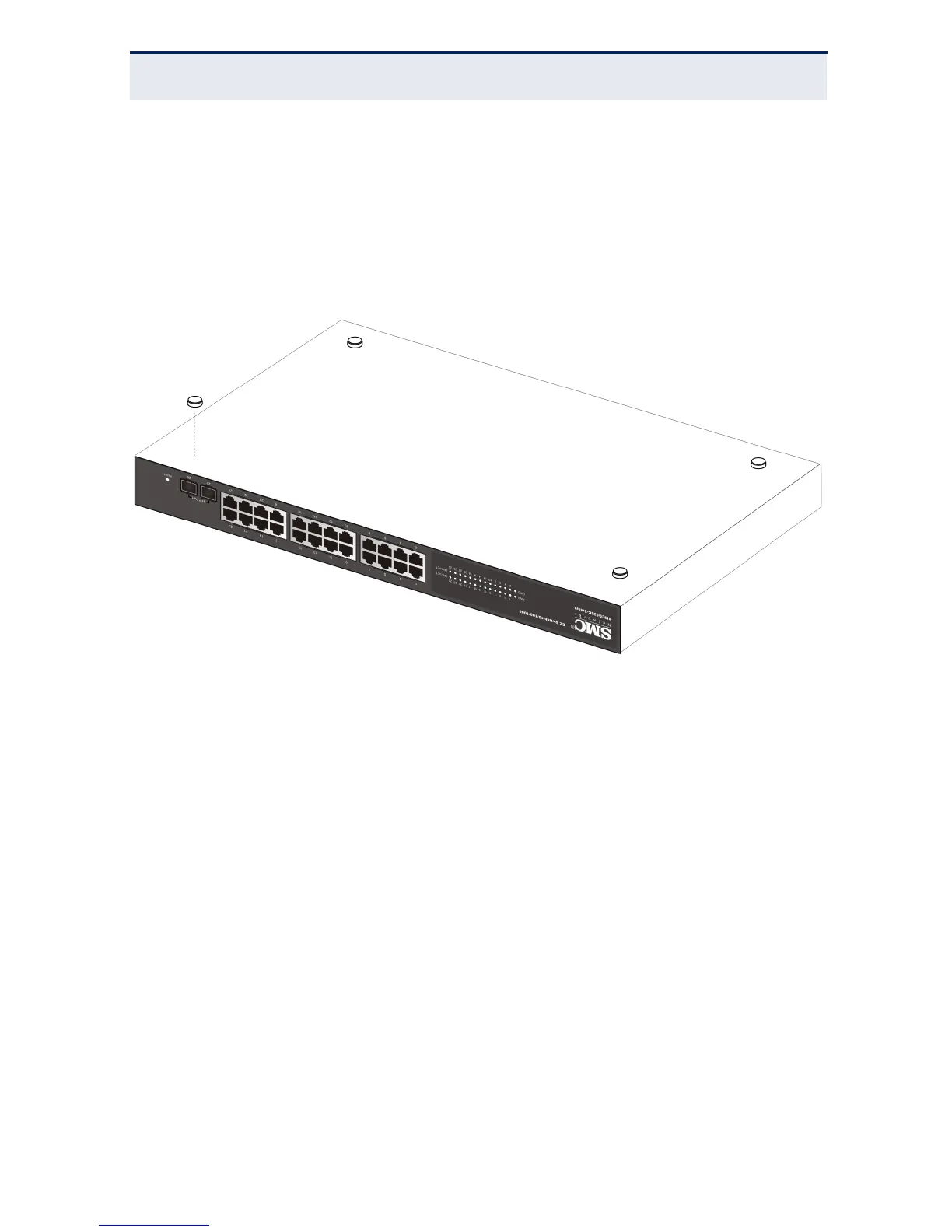

Figure 13: Attaching the Adhesive Feet
2. Set the device on a flat surface near an AC power source, making sure there
are at least two inches of space on all sides for proper air flow.
3. If installing a single switch only, go to “Connecting to a Power Source” on
page 40.
4. If installing multiple switches, attach four adhesive feet to each one. Place
each device squarely on top of the one below, in any order.
