C
HAPTER
4
| Making Network Connections
Fiber Optic SFP Devices
– 46 –

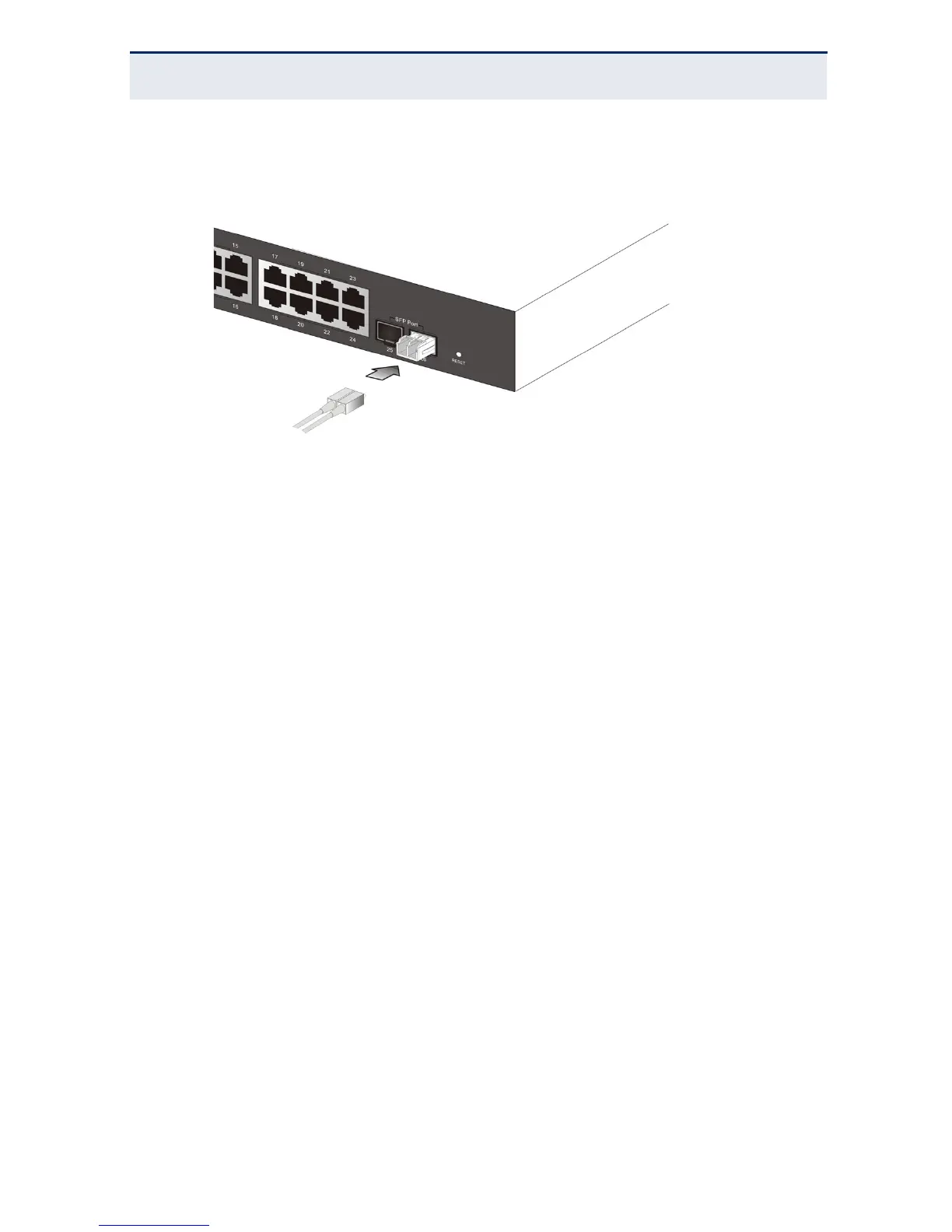

Figure 18: Making Fiber Port Connections
4. As a connection is made, check the Link LED on the switch corresponding to
the port to be sure that the connection is valid.
The 1000BASE-SX/LX/LH fiber optic ports operate at 1 Gbps full duplex. The
100BASE-FX fiber optic ports operate at 100 Mbps full duplex. The maximum
length for fiber optic cable depend on the fiber type as listed under "1000 Mbps
Gigabit Ethernet Collision Domain" on page 47 and "100 Mbps Fast Ethernet
Collision Domain" on page 48.
