Evolution FORD 4.6 and 5.4 Liter
11

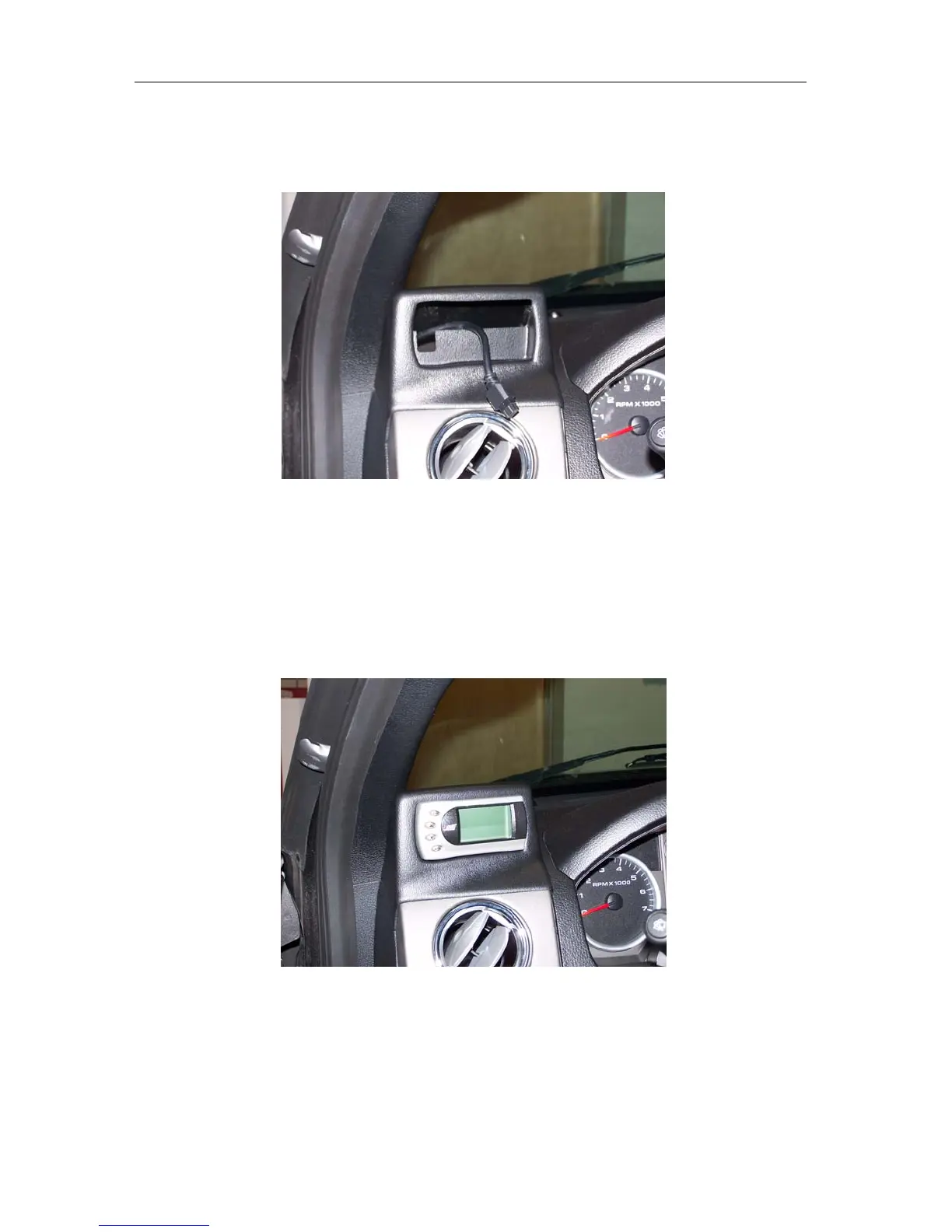

3. Feed roughly 8 to 10 inches of cable through the dashboard. Mount the
Pod onto the dashboard (shown in Figure #4) with the end of the cable
protruding through the front of the Pod. With the Pod secure, attach
the Evolution to the cable.
Figure #4
4. Insert the Evolution into the Pod. Any excess cable may be stuffed
behind the Evolution or may be pulled back through the dash to
eliminate slack. The result of the installation is shown in Figure #5. Be
sure to use the supplied cable ties to secure any excess cable
underneath the dash to prevent the cable interfering with proper pedal
operation.
Figure #5
With the Pod and Evolution securely in place, turn the ignition key
ON. Then plug the cable into the OBDII connector. The Evolution
logo will display followed by a warning and compliance directive. To
indicate you accept and acknowledge the warning and compliance,
press the [ENTER] button
