Edgewater Networks EdgeMarc 4800 User Manual

Product Overview
© 2016 Edgewater Networks. All Rights Reserved. 11
Serial Craft Console Port Cable
The EdgeMarc 4800 uses a single DB9 female to DB9 male serial straight
through cable, as shown in Figure 1-5. This cable is not included in the box
with the EdgeMarc 4800.

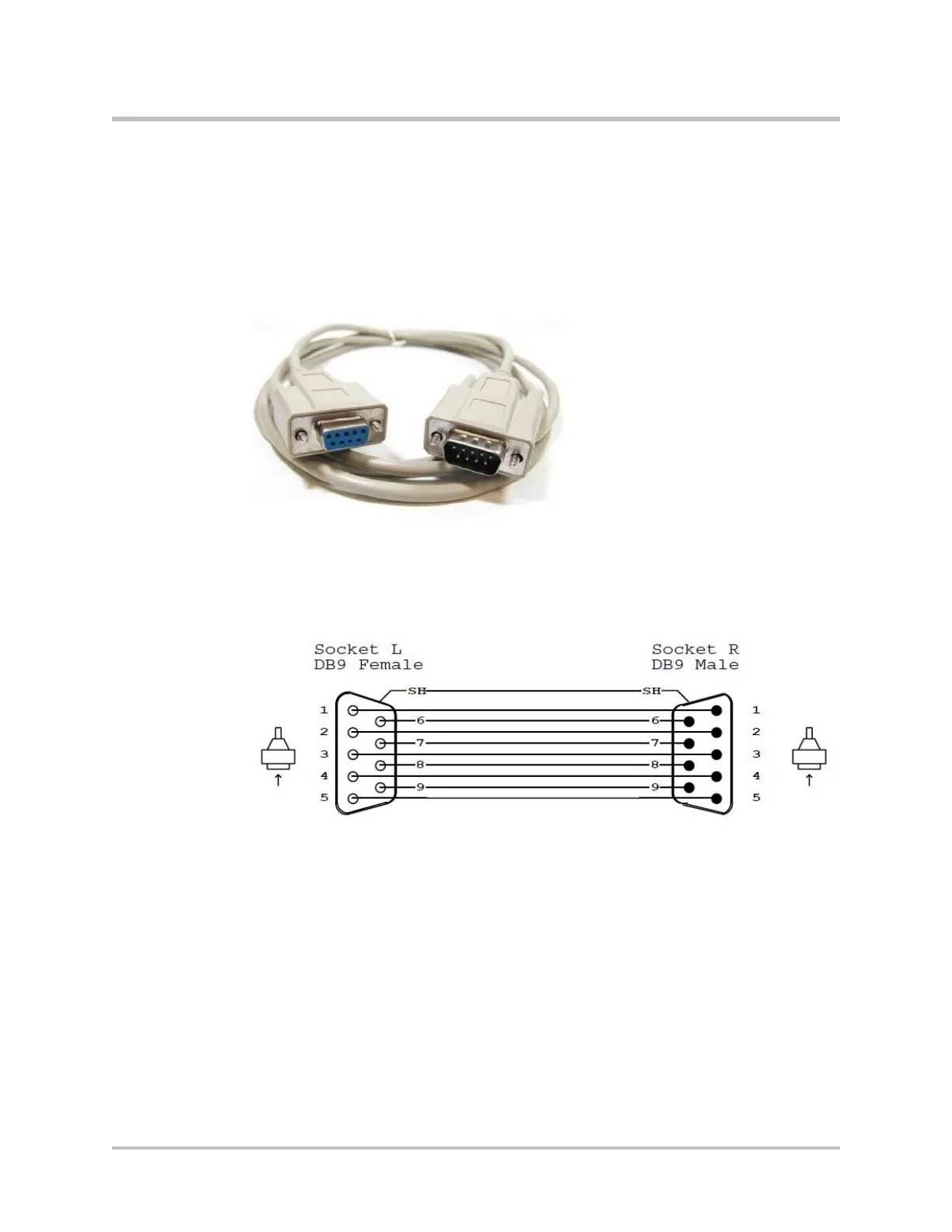

Figure 1-5 DB9 Cable
Figure 1-6 describes the DB9 female to DB9 male serial straight through
cable pinout.
Figure 1-6 Serial Craft Console Port DB9 Cable Pinout
EdgeMarc 4800 SD Card Specifications
Table 1-4 describes supported EdgeMarc 4800 SD card features.
For information about configuring SD card settings, see the EdgeMarc VOS
User Guide in the Edgewater Networks Knowledgebase:
www.edgewaternetworks.com/kb
