Version of 14 June 2016 7

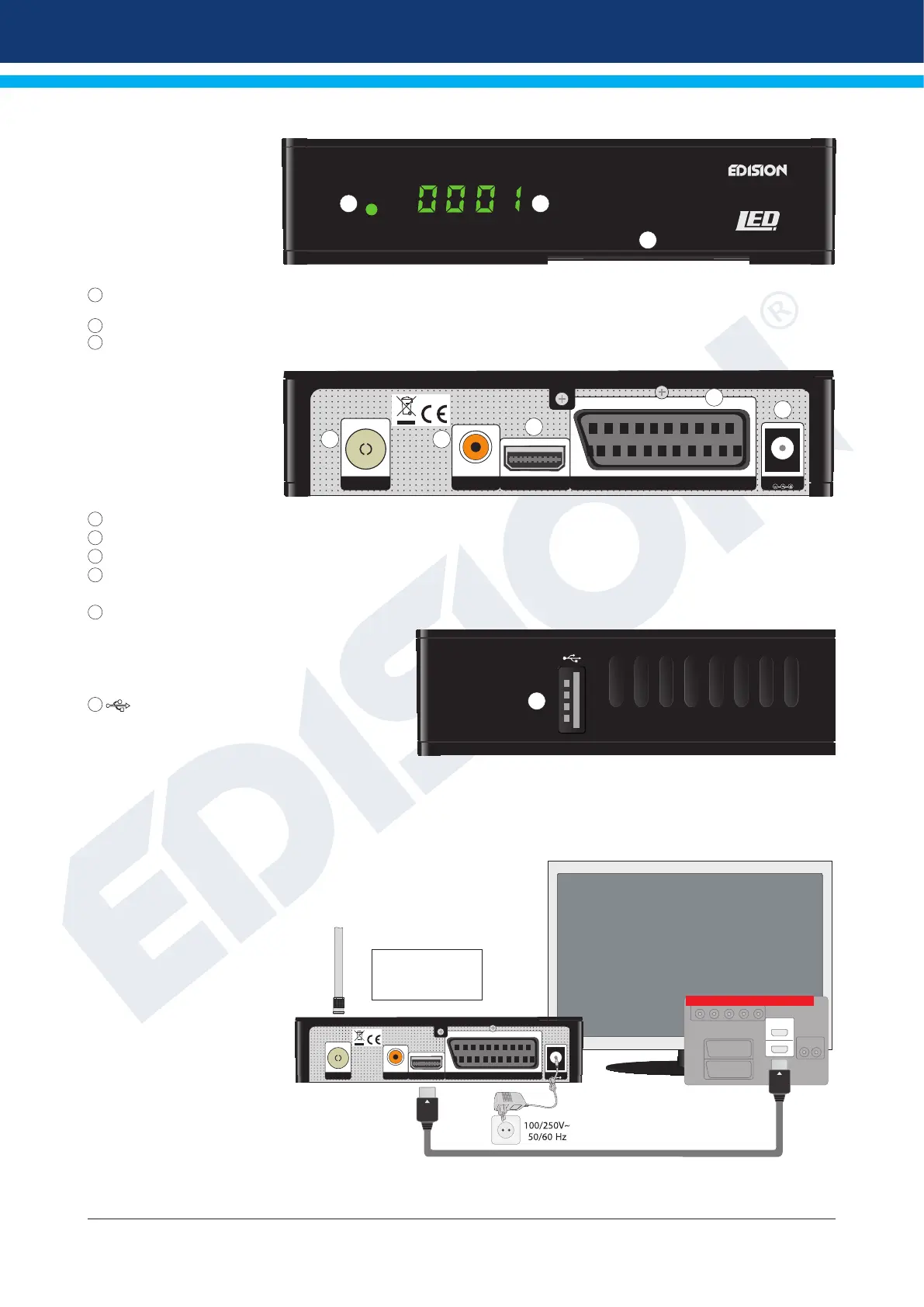

►Description
Front Panel
1
Infrared sensor for the reception of remote
control commands
2
Display LED, displays current information
3
Card reader
Back Panel
4
ANT IN: Input for connecting the signal from the antenna
5
S/PDIF: Audio interface for amplier/audio console
6
HDMI: Connection to an HDTV quality TV
7
SCART: For connecting to a TV set,
using SCART cable [not for HD TV]
8
Connection for an adapter (DC 5V / 1,0A)
Subpage
9
/USB: Connection for USB storage devices
Connecting and switching on
Note: For trouble-free signal reception your antenna
and cable installation should be calibrated
and inspected by a qualied professional with a digital
TV-level-measuring instrument.
• Connect the receiver’s HDMI-output to the HDMI-input
of your television set (TV), for HDTV quality.
• Then connect the coaxial cable
from the terrestrial
antenna to the ANT IN input
of the receiver.
• Insert the batteries into the remote.
Further information you will nd at
the back of this instruction manual.
• Connect the receiver to the mains
power supply network, by means
of it’s power supply unit included
in the package.
• The receiver starts with the BOOT-process
and will be ready for you to enjoy in a few minutes.
9
HDMI SCART
DC 5V/1,0 A
S/PDIFANT IN
4 5
6
7
8
hybrid lite
1 2
3
1
HDMI in
2
HD m i
kabel
HDMI
kabel
HDMI SCART
DC 5V/1,0 A
S/PDIFANT IN
Power socket
HDMI:
Output receiver
HDMI cable
TV set connection panel
Use an HDMI input!
ANT IN: coaxial-wire
input from terrestrial
antenna.
coaxial-wire Antenna
