E. Making a print with CreatorK 8
E2 How to use CreatorK 8 (Continued)

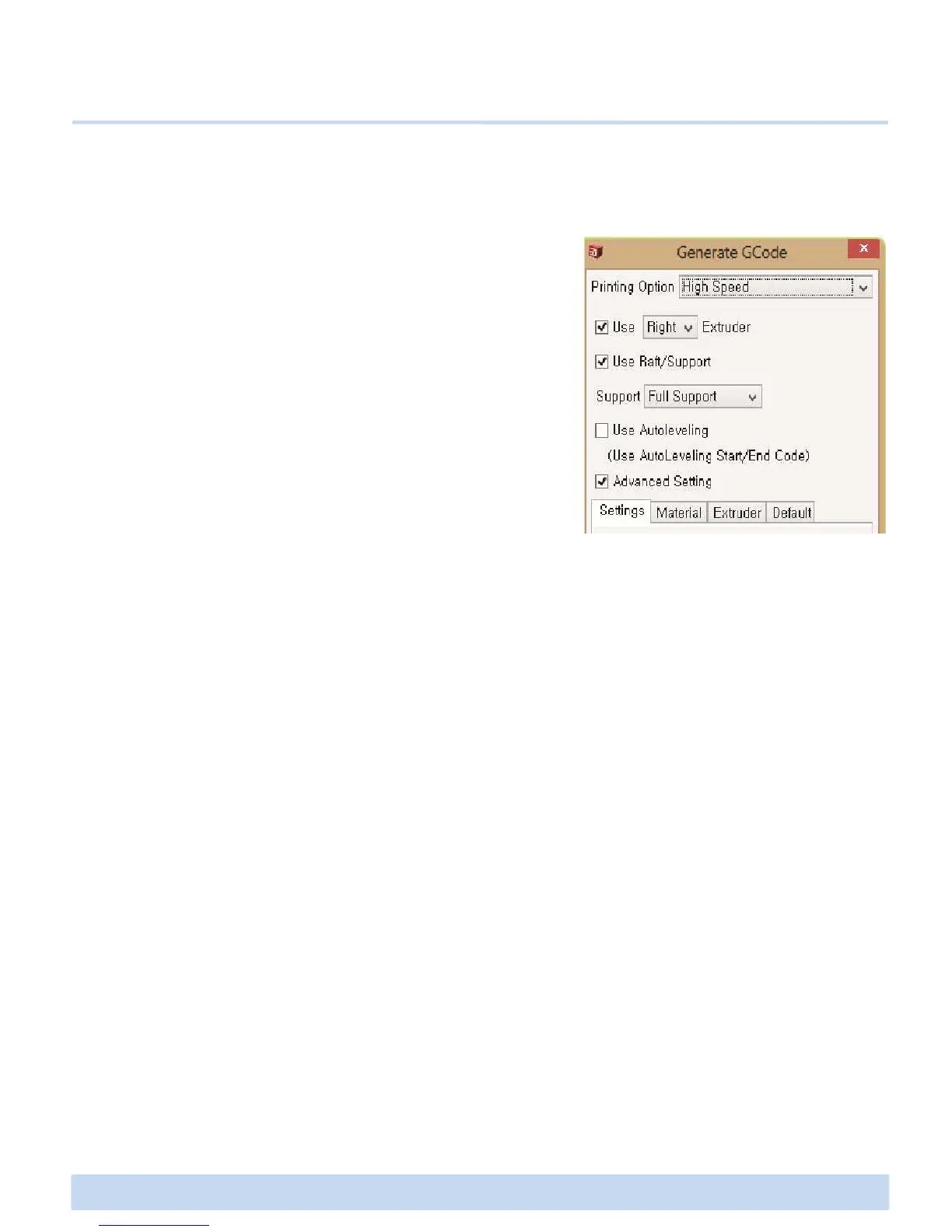

3. Once you finished, click on the G-code icon on the far
left to generate G-code. Then a pop-up window will
show up to save or not to save the .stl file which you
have edited in location or size etc. After this, you can see
this display.
Tip. 3DISON’s software CreatorK 8 is based on the Skeinforge,
which has a plenty of settings. We are providing about 9
appropriate printing options so that any users can set up the
There are basic profiles
optimized to print out what you want conveniently
.
(suggested but not required)
※ If you don’t want to use these printing option, generate your own printing
option by selecting GCode-Edit Slicing Profiles and clicking any profile and Copy.
① High Speed : 0.2 mm layer height for big-sized object
- 700 mm/sec on ∃DISON Pro and ∃DISON H700
- 250 mm/sec on ∃DISON Multi
② Standard : 0.2 mm layer height for mid-sized object
- 100 mm/sec on ∃DISON Pro and ∃DISON H700
appropriate printing options so that any users can set up the
profile easily.
But, please note that you should enter each settings unless
you choose specific a printing option. (Uncheck the mark in
the Advanced Setting item.)
Following are specific explanations about the items you should set up before generatin
g G-code. Your print-out’s quality and time will be affected.z
∃DISON PRO User Manual V.1 19
- 100 mm/sec on ∃DISON Pro and ∃DISON H700
- 100 mm/sec on ∃DISON Multi
③ High-Precision : 0.05 mm layer height for small-sized object
- 40 mm/sec on ∃DISON Pro and ∃DISON H700
- 40 mm/sec on ∃DISON Multi
④ Supreme-Precision : 0.025 mm layer height for small sized and smooth surface
- 40 mm/sec on ∃DISON Pro and ∃DISON H700
- 40 mm/sec on ∃DISON Multi
※ The thinner the height of the layer, more the time is required to finish 3D
printing
⑤ Laser : to cut 3 mm-thick acryl and 2 mm-thick plywood
⑥ Silver, ⑦ Bronze, ⑧ Copper, ⑨ Steel
※ When generating Gcode before starting metal printing, be sure to choose the
corresponding ‘printing option’ depending on materials. These settings are
optimized to the material and theses are provided by the developers of ROKIT Inc.
