EDMI Atlas Series User Manual

The Mk7A Meter 4-1
C h a p t e r
4

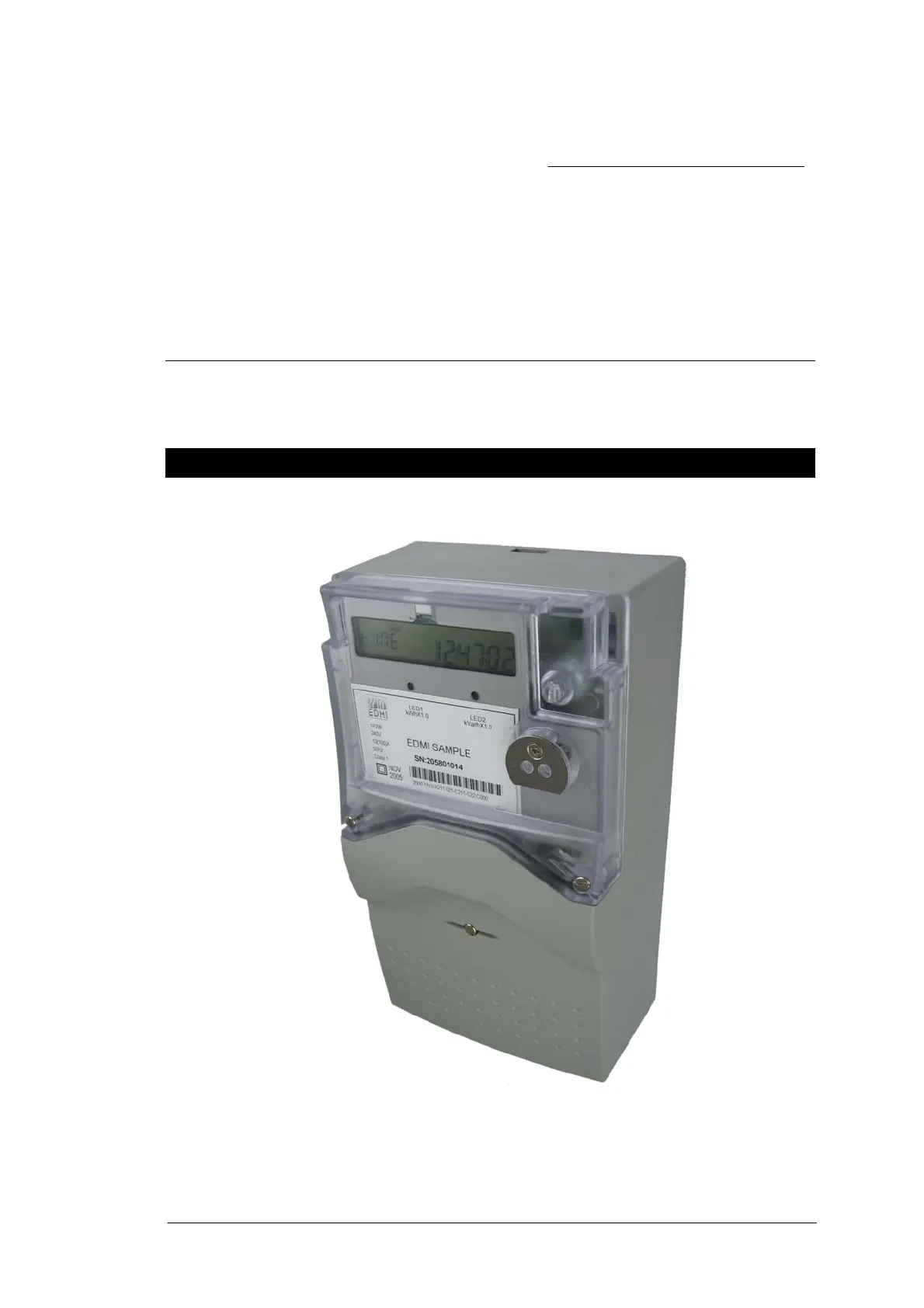

Chapter 4 The Mk7A Meter
This chapter covers the basic installation and physical features of the Mk7A meter.
Dimensions and Mounting
Figure 4-1 shows the overall dimensions of the meter with a standard terminal cover.
Height
Depth
Width
• Figure 4-1 Overall dimensions of the meter
Height = 233 mm, Depth = 85 mm, Width = 128 mm

EDMI Atlas Series Specifications

General

Type	Electricity Meter
Display	LCD
Phase	Single Phase, Three Phase
Communication	RS-485
Mounting	DIN Rail
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +70°C
