The Mk10D Meter 3-1
C h a p t e r
3
Chapter 3 The Mk10D Meter
This chapter covers the basic installation and physical features of the Mk10D meter.
Dimensions and Mounting

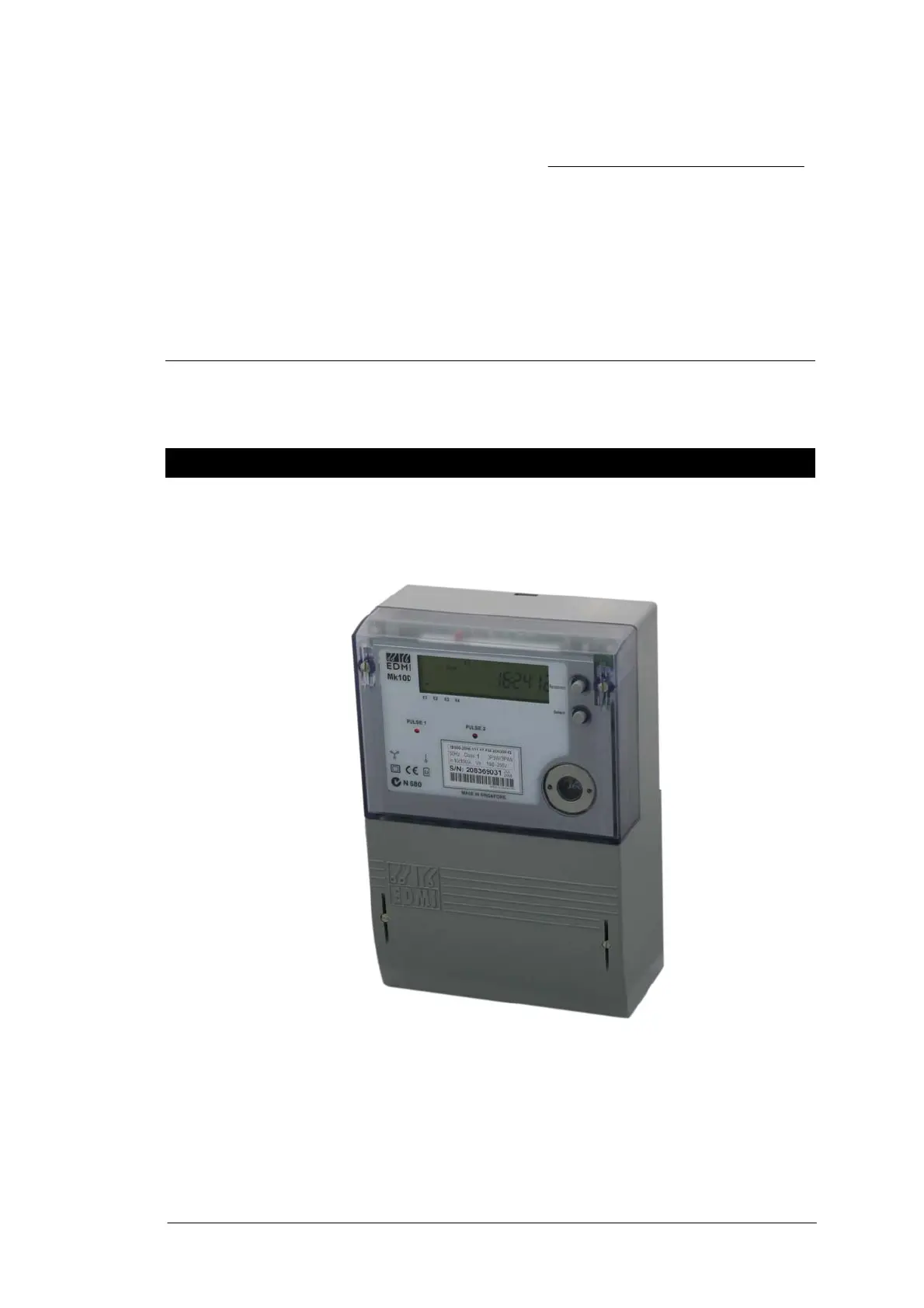

Figure 3-1 shows the overall dimensions of the meter with a standard terminal cover.
The height excludes the buttons and the ANSI fitting if present.
Width
Depth
Height
• Figure 3-1 Overall dimensions of the meter
Height = 262 mm, Depth = 95 mm, Width = 175 mm
Height is 290 mm with an extended terminal cover.
Figure 3-2 is a view from the back of the meter.
