Technical Data
2.4 Materials exposed to vacuum

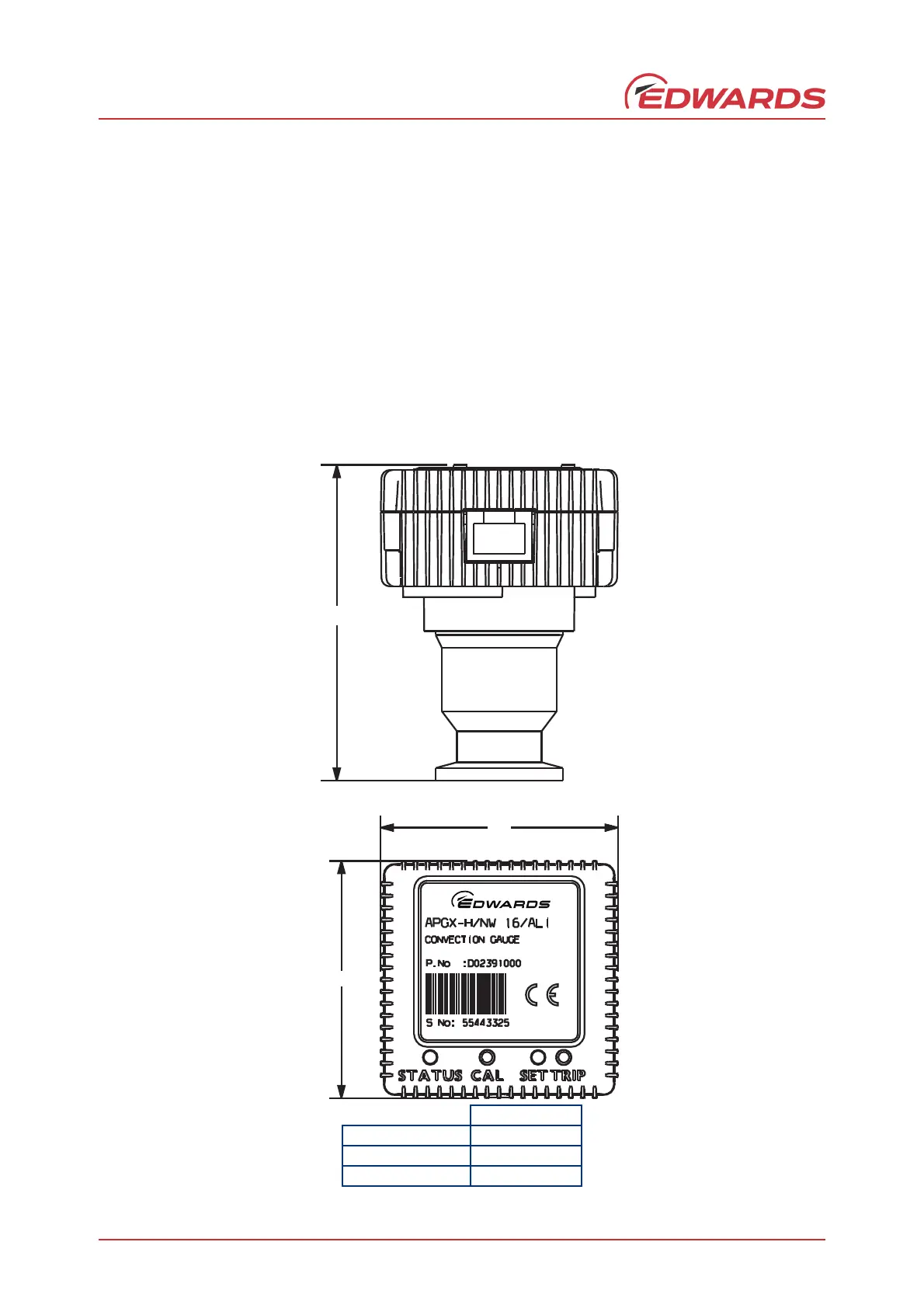

Figure 2 - Dimensions (mm) NW16 APGX-H Shown)
Hysteresis 500 mV
Max external load rating 30 V d.c., 100 mA
Max ’on’ voltage 1.3 V (at 100 mA)
Gauge identification resistance 39 k
Filament Tungsten
Sintered filter Phosphor-bronze
Gauge tube Aluminium or stainless steel (316L)
Other Nickel, fluoroelastomer, PTFE
A
NW16 75
NW25 75
1
/
8
inch NPT 87
A
56
56
