Edwards APGX-H User Manual

© Edwards Limited 2018. All rights reserved. Page 9
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
D023-92-880 Issue F

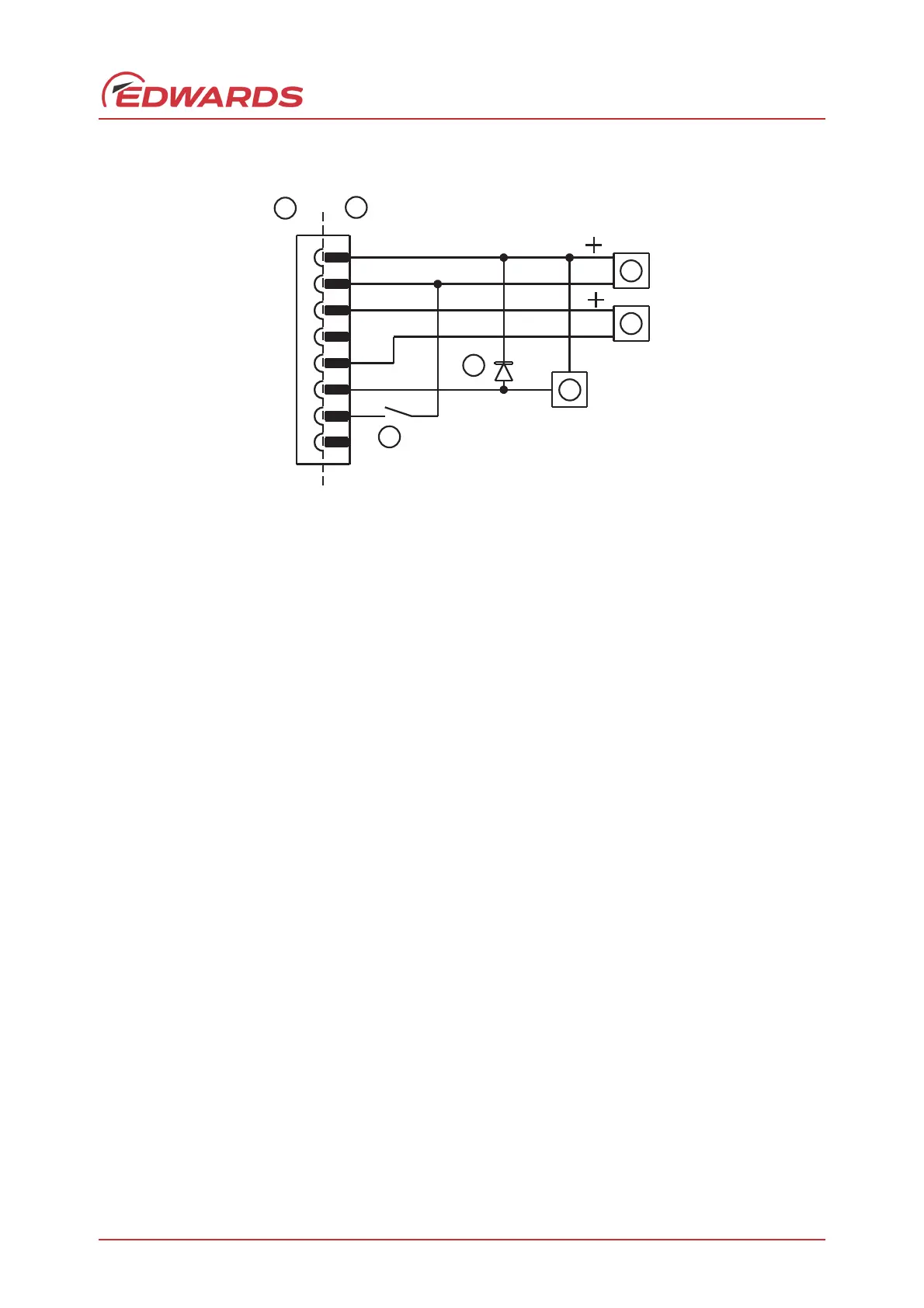

Figure 3 - Schematic Diagram of Recommended Electrical Connection
3.3.2.1 Set-point
The set-point output is an open-collector transistor with a series diode. When the pressure falls to the set-point
value, the transistor output changes to on (closed or low impedance) and the set-point LED switches on (amber). The
set-point has a fixed hysteresis of 500 mV: the set-point output and LED go off when the pressure rises to 500 mV
above the set-point pressure.
1. APGX-H electrical connector socket 5. d.c. relay (optional)
2. Cable electrical connector plug 6. Back EMF suppression diode (optional)
3. Electrical supply 7. Remote calibration switch (optional)
4. Voltmeter
5
4
3
6
7
2
1
0V
0V
1
2
3
4
5
6
7
8
