1.
2.
3.
4.
5.
6.
7.
8.
9.
10. Baseplate '0' ring
11. Glass seal '0' ring
12. Coaxial cable
13. Cooling water connector (with filter)
14. 8 mm equal ended coupling
15. Riffled connector (optional)
16. Cooling water connector
17. Fixing hole for M3 screw
Sprung fingers
Water cooled crystal head
Crystal enclosure
Crystal
Push-on connector
Leadthrough
BNC socket
Vacuum leadthrough nut
Vacuum leadthrough washer
A
B
Front of crystal
Rear of crystal

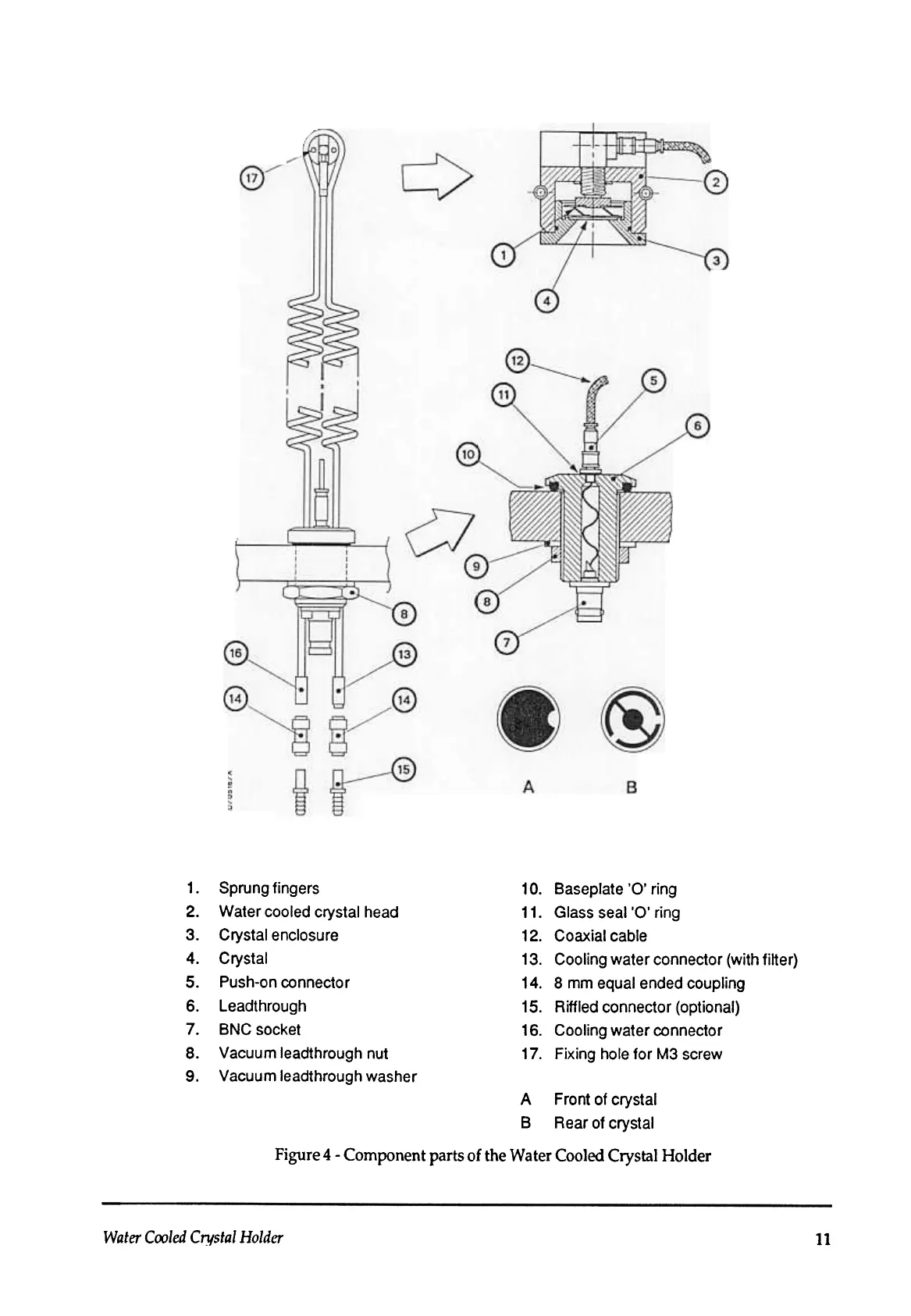

Figure 4 -Component parts of the Water Cooled Crystal Holder
Water Cooled Crystal Holder
11
